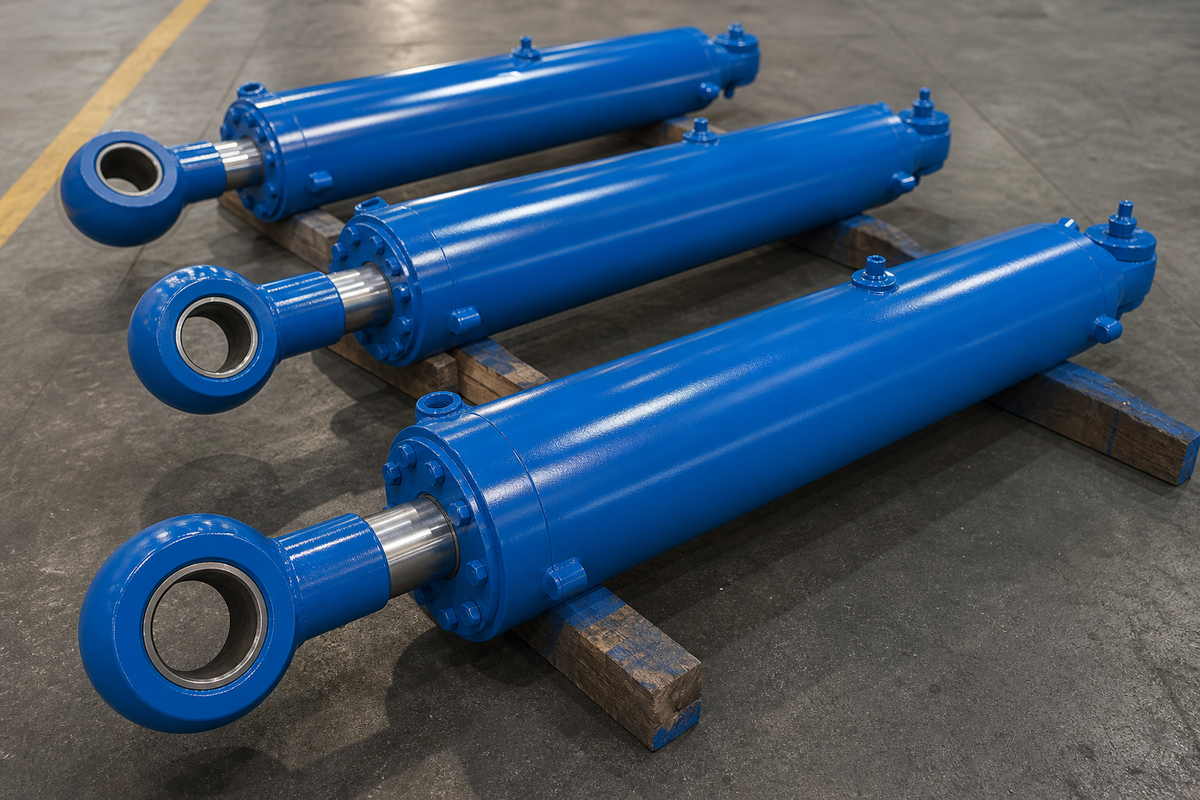

Introduction to Custom Hydraulic Cylinders: Engineering Precision for Your Application
Hydraulic cylinders represent the backbone of force generation and motion control in modern industrial systems. When standard off-the-shelf solutions cannot meet specific operational requirements—whether due to extreme pressures, unique mounting configurations, corrosive environments, or specialized stroke lengths—custom hydraulic cylinder design becomes essential for maintaining productivity, safety, and equipment longevity.
Custom hydraulic cylinders are precision-engineered actuators designed to convert hydraulic pressure into controlled linear force and motion. Unlike mass-produced alternatives, custom solutions address application-specific challenges including dimensional constraints, load capacity variations, operating temperature extremes, and integration with existing mechanical systems. Industries such as aerospace, defence manufacturing, heavy construction equipment, steel processing, and advanced material testing rely on tailored hydraulic solutions to achieve operational precision and reliability.
Understanding hydraulic cylinder design considerations requires comprehensive knowledge across multiple engineering disciplines. Critical factors include bore diameter calculation based on force requirements, rod sizing to prevent buckling under compressive loads, seal material selection for chemical compatibility, mounting style determination for load alignment, and stroke length optimization for spatial constraints. Additional considerations involve surface finish specifications, corrosion protection requirements, position sensing integration, and compliance with industry standards such as ISO 6020, NFPA T3.6.7, and JIS B 8367.

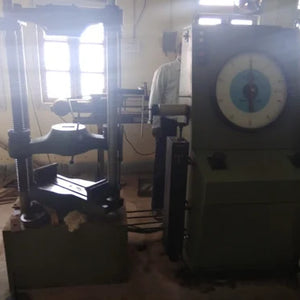

For quality assurance professionals and testing engineers, custom hydraulic cylinders serve specialized functions in material testing machines—applying precise, controlled forces during tensile, compression, and fatigue testing. These applications demand exceptional repeatability, position accuracy, and force stability to ensure measurement integrity and compliance with ASTM, ISO, and IS testing standards.
Effective custom hydraulic cylinder design balances engineering precision, material durability, operational safety, and lifecycle cost considerations while addressing the unique technical demands of each application.
Understanding the Key Elements
Successful hydraulic cylinder design depends on a thorough understanding of several interconnected engineering principles. Each element contributes directly to system performance, operational safety, and service life. Overlooking any single factor can compromise precision, increase downtime, or escalate lifecycle costs.
The following components form the foundation of hydraulic cylinder design considerations:
- Load capacity and force requirements: Determining the exact thrust or pull force needed ensures the cylinder operates within safe working limits without premature wear or structural failure.
- Stroke length and travel distance: Accurate stroke calculation prevents mechanical interference and ensures complete actuation cycles under all operating conditions.
- Operating pressure and flow rate: Pressure ratings must align with system hydraulic capacity while maintaining repeatability and control precision.
- Mounting configuration: Proper mounting styles—clevis, trunnion, flange, or pivot—ensure correct load alignment and minimize side loading.
- Material selection and surface treatments: Choosing appropriate cylinder barrel, piston rod, and seal materials based on environmental exposure, corrosion resistance, and temperature extremes extends service life.
- Seal compatibility and leakage prevention: Selecting seals suited to fluid type, pressure range, and temperature profile reduces internal and external leakage.
- Environmental and operational conditions: Ambient temperature, humidity, contamination levels, and duty cycle frequency all influence design parameters.
When designing custom hydraulic cylinders for specialized applications—such as material testing equipment, compression testing systems, or fatigue testing machines—precision engineering becomes even more critical. Custom solutions must integrate seamlessly with test frames, load cells, and control systems to deliver accurate, repeatable test results.
Understanding these key elements establishes a solid technical foundation for specifying, designing, and validating hydraulic cylinders that meet both immediate performance requirements and long-term reliability objectives. Accurate assessment during the design phase reduces costly modifications and ensures compliance with engineering standards and safety regulations.
Step-by-Step Guide & In-Depth Analysis
Designing a custom hydraulic cylinder requires a methodical engineering process that balances performance, durability, and application-specific requirements. Each decision impacts operational reliability, maintenance intervals, and lifecycle costs.
Load Analysis and Force Calculation
Begin by calculating the required pushing and pulling forces. Determine the cylinder bore diameter using the formula: Force = Pressure × Area. Consider safety factors between 1.5 and 2.5 depending on load variability. Account for friction losses, mounting orientation, and dynamic shock loads that may exceed static calculations by 20 to 40 percent.
Stroke Length and Positioning Requirements
Define the stroke length based on machine movement requirements while factoring in mounting configuration. Clevis mounts require additional stroke allowance compared to flange mounts. Calculate the critical buckling length using Euler's formula to prevent rod failure during compression cycles. For strokes exceeding 20 times the rod diameter, specify intermediate support or increase rod diameter proportionally.
Material Selection and Surface Treatment
Select cylinder barrel material based on operating pressure and corrosion exposure. Seamless honed steel tubing rated to minimum 350 bar working pressure serves most industrial applications. Chrome-plated piston rods provide superior wear resistance and corrosion protection. Specify seal materials compatible with operating temperature range and hydraulic fluid chemistry.
Testing and Validation Protocol
Establish acceptance criteria before manufacturing. Pressure testing at 1.5 times working pressure verifies structural integrity. Stroke cycle testing under load conditions validates seal performance and detects potential leakage paths. Temperature monitoring during extended operation confirms thermal stability across the duty cycle.
Material testing equipment validates component quality throughout the manufacturing process. Hardness testing confirms heat treatment effectiveness while tensile testing verifies material strength properties meet engineering specifications.
Expert Tips & Common Mistakes to Avoid
Even well-specified hydraulic cylinders can underperform if critical engineering principles are overlooked during design, procurement, or integration. Drawing from decades of precision engineering experience, these expert recommendations help prevent costly failures and maximize service life.
Critical Design Considerations Often Overlooked
Insufficient attention to mounting alignment represents one of the most prevalent errors. Misalignment as small as 0.5 degrees can generate side loads exceeding 20% of the rod force, accelerating seal wear and reducing bearing life by up to 70%. Always specify appropriate mounting configurations—trunnion, clevis, or spherical bearings—based on application-specific angular deflection characteristics.
Undersizing cylinder diameter to reduce initial cost frequently backfires. Operating consistently above 80% of rated pressure shortens seal life, increases heat generation, and compromises positional accuracy. Design for 70–75% maximum pressure utilization under normal operating conditions, reserving additional capacity for transient peak loads.
Common Material Selection Errors
Specifying chrome-plated mild steel rods for corrosive environments or marine applications invites premature pitting and seal damage. Stainless steel rods, though costlier initially, deliver superior corrosion resistance and extended maintenance intervals. Similarly, selecting standard Nitrile seals for high-temperature applications above 90°C guarantees rapid degradation—Viton or polyurethane compounds offer substantially better thermal stability.
Procurement and Testing Best Practices
Avoid accepting cylinders without documented performance verification. Reputable manufacturers provide pressure test certificates, dimensional inspection reports, and surface finish measurements. Insist on witnessed factory acceptance testing for critical applications, verifying stroke accuracy, leakage rates under sustained pressure, and positional repeatability across the operating envelope.
Finally, neglecting proper system filtration undermines even premium cylinder designs. Contamination accounts for approximately 75% of hydraulic system failures. Specify filtration to ISO 4406 cleanliness code 18/16/13 minimum, with 16/14/11 preferred for precision positioning applications requiring consistent performance and extended component longevity.
Conclusion & Final Thoughts
Custom hydraulic cylinders represent a critical intersection of precision engineering and practical application performance. Throughout this exploration of hydraulic cylinder design considerations, we have examined how thoughtful engineering decisions during the specification, design, and manufacturing phases directly influence operational reliability, safety, and lifecycle economics.
Successful hydraulic cylinder implementation begins with comprehensive application analysis. Understanding load profiles, environmental conditions, duty cycles, mounting configurations, and integration requirements establishes the foundation for engineering solutions that deliver measurable performance advantages. The dimensional precision, material selection, seal technology, surface treatment, and quality verification methods discussed throughout this article collectively determine whether a hydraulic cylinder merely functions or consistently excels under demanding industrial conditions.
For manufacturers, quality assurance laboratories, and engineering decision-makers, the connection between design rigor and operational outcomes cannot be overstated. Investing adequate time in specification development, partnering with engineering-focused manufacturers, and prioritizing quality verification reduces technical risk, minimizes unplanned downtime, and supports predictable maintenance planning.
At Akuracy.org, our experience manufacturing precision testing equipment since 1998–99 has reinforced a fundamental engineering principle: measurement precision and manufacturing quality form the backbone of reliable industrial systems. While we specialize in Material Testing Machines and Dynamic Balancing Machines rather than hydraulic components, the engineering discipline required to achieve consistent accuracy, repeatability, and durability remains universal across precision-critical applications.
Whether you are specifying hydraulic cylinders for production machinery, test equipment, infrastructure projects, or specialized industrial applications, prioritize engineering substance over marketing claims. Verify manufacturer capabilities, request documented performance data, and select partners committed to technical support beyond initial delivery. Precision-engineered solutions supported by responsible manufacturing practices deliver confidence, operational stability, and long-term value.
