Rotor manufacturers in India often need to balance different products across changing dimensions, masses, speeds, and production volumes. A fan impeller, motor armature, pump rotor, and automotive component may all require a different balancing approach. Selecting the right balancing machine therefore begins with the rotor and correction process—not with machine names alone.

Quick answer: how to choose a balancing machine

Choose a balancing machine by matching five practical factors:

1. Rotor geometry and orientation
2. Rotor mass, dimensions, and support points
3. Required balancing quality and production volume
4. Correction method, such as drilling, milling, grinding, or adding weights
5. Installation conditions, operator skill, service access, and future workload

A horizontal balancing machine is often considered for elongated rotors supported between or on bearing pedestals. A vertical balancing machine is generally more suitable for disc-shaped or compact components mounted on a faceplate. Soft-bearing and hard-bearing designs differ mainly in how the rotor support responds during measurement and how the machine is used across different operating conditions.

The principles described in balancing theory of machines help engineers understand unbalance, centrifugal force, correction planes, and vibration. However, a purchase decision should also consider the actual production workflow. A technically suitable dynamic balancing machine can still be a poor fit if loading is slow, fixtures are difficult to change, or the correction process is disconnected from measurement.

Rotor manufacturers should define representative parts before requesting proposals. Include the smallest and largest rotor, typical mass range, shaft arrangement, operating speed, number of correction planes, expected production quantity, and applicable acceptance requirements. This information allows a supplier to recommend a suitable configuration rather than a generic balancing machine.

What to look for in balancing machine

Fit for your real use case

The first question is whether the rotor should be positioned horizontally or vertically.

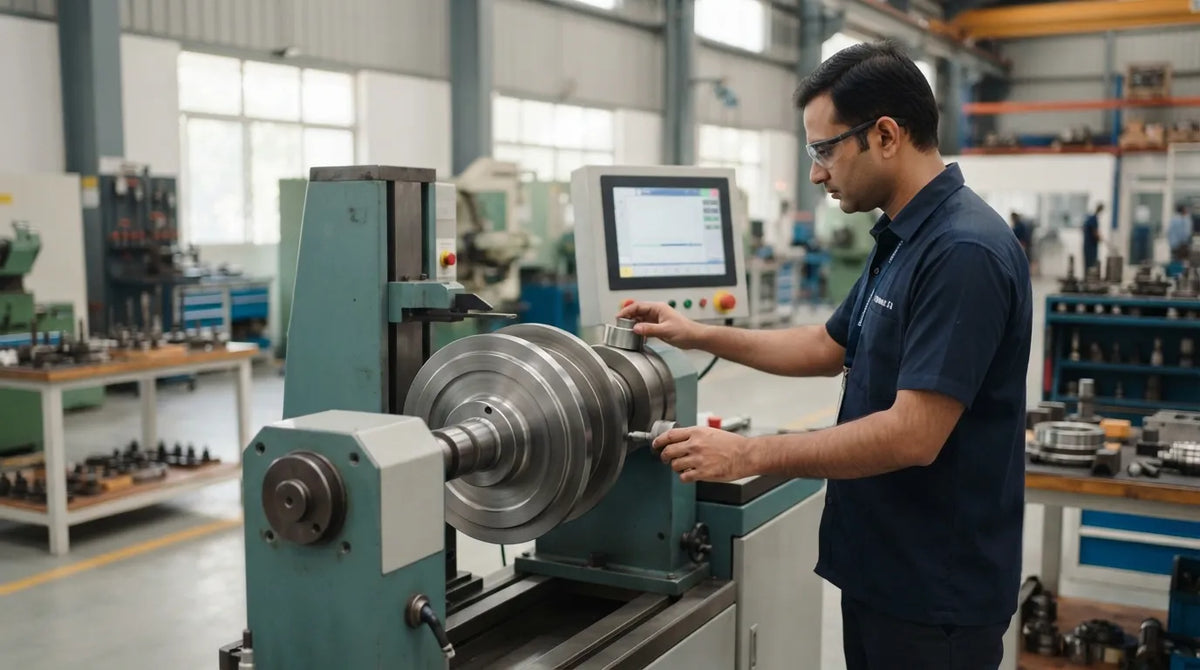

A horizontal balancing machine supports the rotor along its shaft axis. It may be appropriate for:

• Long motor and generator rotors
• Pump shafts and assembled pump rotors
• Fan and blower shafts
• Automotive crankshaft-type or elongated rotating parts
• Rollers, spindles, and other shaft-mounted components

The key advantage of this arrangement is practical access to a rotor that is already designed around a central shaft. The support system must suit the shaft journals, bearing locations, coupling method, and rotor overhang. For long or flexible parts, the number and position of supports become important because the rotor may behave differently at different speeds.

A vertical balancing machine rotates the component around a vertical axis. It is commonly considered for compact, disc-like parts such as:

• Fan impellers
• Brake components
• Flywheels
• Clutch assemblies
• Small pump impellers
• Motor armatures and other short rotors

Vertical orientation can simplify loading when the part has a flat mounting face or central bore. It may also make correction access convenient for components where mass is distributed across a disc. However, the fixture must locate the part repeatably. A poorly designed adapter can introduce runout or positioning variation that affects the measured result.

Soft-bearing machines use supports designed to respond to the dynamic forces produced by rotor unbalance. They are often valued for flexibility across a range of rotor types, provided the setup and operating procedure are properly controlled. Their suitability depends on the rotor’s mass, geometry, speed range, and support conditions.

Hard-bearing machines use comparatively rigid supports and are commonly selected where repeatable production balancing and defined operating conditions are important. They can be useful when rotors must be balanced at lower speeds or when a production line needs a consistent loading and measurement routine. The correct choice depends on the machine design, rotor family, correction tolerance, and process requirements.

Consider four practical examples:

• A manufacturer producing several fan impeller sizes may prioritize quick fixture changeover and easy correction access.
• A motor plant balancing armatures may need repeatable location, controlled clamping, and a process that operators can follow consistently.
• A pump manufacturer may require support arrangements that accommodate different shaft lengths and impeller positions.
• An automotive supplier may place greater emphasis on cycle time, traceability, repeatability, and integration with the correction station.

A balancing machine should be evaluated using actual sample rotors wherever possible. Ask whether the supplier can demonstrate the proposed arrangement with representative components, fixtures, and correction steps.

Value, price, and total cost

The purchase price is only one part of the cost of a dynamic balancing machine. A lower initial price may not represent better value if the machine requires frequent fixture changes, extensive manual calculation, difficult alignment, or specialist maintenance.

Assess the total cost through the complete workflow:

• Machine and measurement system
• Standard and special fixtures
• Rotor adapters and tooling
• Foundation or installation work
• Safety enclosure or guarding requirements
• Operator training
• Calibration and periodic verification
• Spare sensors and wear parts
• Software or reporting requirements
• Service response and technical support
• Time required for loading, balancing, correction, and rechecking

The cost of a balancing machine cannot be stated responsibly without knowing its configuration and application. Capacity, rotor geometry, automation level, measurement requirements, correction method, fixtures, and installation conditions can all change the proposal.

For example, a manually loaded machine may be appropriate for low-volume production or a job shop with many unrelated rotor types. A more dedicated arrangement may provide better process consistency when one rotor family is produced repeatedly. The higher-cost option is not automatically better; its value depends on whether the saved handling time and improved process control justify the investment.

Procurement teams should also consider the effect of an unsuitable machine. Repeated setup errors, rejected components, correction rework, and production delays can create costs that are not visible in the purchase quotation. A total-cost review should therefore include the expected workload and the consequences of inaccurate or slow balancing.

A supplier’s broader technical capability may also matter. Akuracy manufactures and exports balancing machines and related laboratory equipment, while also providing calibration, repair, and support services. Buyers can review the balancing machine range and discuss the application details needed for a technically appropriate proposal.

Features that actually change the experience

Useful features are those that improve repeatability, reduce setup errors, or make correction easier. They should be assessed against the rotor family rather than treated as a checklist of premium options.

Important points to examine include:

Rotor support and drive arrangement

Check how the rotor is supported and driven. The arrangement should suit shaft diameter, bearing locations, coupling requirements, overhang, and rotor length. A drive system that works well for one rotor may be inconvenient for another.

Fixture repeatability

Fixtures should locate the component consistently without damaging functional surfaces. For vertical machines, inspect the faceplate, mandrel, and clamping method. For horizontal machines, review the bearing pedestals, journals, drive coupling, and support adjustment.

Measurement and operator guidance

The measurement system should present unbalance information in a form operators can use. Clear indication of correction plane, angular position, and correction amount can reduce interpretation errors. Confirm how results are recorded and whether reports are needed for quality documentation.

Correction workflow

Measurement is only one part of balancing. Ask how the machine supports the next step:

• Is correction performed on the machine or at a separate station?
• Can the operator mark the correction angle clearly?
• Is the component easy to remove and reinstall without losing reference?
• Can the rotor be checked again after correction?
• Are correction planes defined consistently for the product?

For a fan impeller, correction may involve adding or removing material around the disc. For a motor armature, access to the correction area and protection of windings may be critical. For a pump rotor, the correction method must avoid compromising the impeller or shaft.

Changeover and maintenance access

A machine used for several rotor families should allow practical fixture changes and adjustment. Review access to belts, couplings, sensors, bearings, guards, and electrical panels. Serviceability affects uptime, particularly when the machine is used in a busy production environment.

Safety and installation requirements

Rotating components store energy. Guarding, interlocks, emergency stopping, secure clamping, and safe operating procedures must be addressed during specification and installation. Floor conditions, vibration from nearby equipment, access for loading, and available electrical services should also be reviewed before finalizing the layout.

Related material testing equipment may be part of the same quality-control environment. Akuracy’s material testing equipment information can help laboratories and industrial buyers review the wider equipment context when balancing is combined with other inspection or testing activities.

Tradeoffs and limitations to check first

No balancing machine configuration is ideal for every rotor.

A horizontal machine may be unsuitable when the component has no usable shaft or when loading a wide disc horizontally is awkward. A vertical machine may be a weak fit for very long rotors, flexible shafts, or parts requiring several support locations along their length.

Soft-bearing and hard-bearing approaches also involve tradeoffs. A soft-bearing system may provide flexibility across applications, but setup discipline and support conditions remain important. A hard-bearing system may suit repeatable production work, but it still requires suitable fixtures, correct rotor location, and a measurement range appropriate to the parts.

Other limitations to check include:

• Rotor mass outside the intended working range
• Shaft or bore dimensions that require special tooling
• Rotor flexibility at the planned balancing speed
• Difficulty accessing correction planes
• Irregular or unstable loading surfaces
• Assemblies that change configuration during operation
• Nearby machinery causing floor vibration
• Insufficient space for safe loading and unloading
• Lack of trained personnel for setup and verification
• Limited access to replacement parts or service support

Do not assume that a machine suitable for a bare rotor will also suit the assembled product. Bearings, couplings, fans, seals, magnets, blades, or other attachments can alter mass distribution and support requirements.

The same caution applies to balancing theory of machines. The basic theory explains why unbalance produces centrifugal force and vibration, but real production results also depend on fixturing, runout, rotor condition, speed control, correction accuracy, and repeatable operator practice.

How to make the right balancing machine decision

Use a staged decision process rather than choosing from capacity alone.

First, classify the rotor by geometry:

• Long and shaft-like: begin by evaluating horizontal configurations.
• Compact and disc-like: begin by evaluating vertical configurations.
• Flexible or unusually long: investigate support behavior and operating speed carefully.
• Multi-part assembly: assess whether the machine can balance the component in its final operating condition.

Second, define the balancing task. Identify whether the requirement is single-plane or two-plane balancing, whether the correction is performed by adding or removing mass, and whether the rotor must be checked after correction. Do not select a dynamic balancing machine without defining the correction workflow.

Third, map the production environment. A job shop may need broad flexibility and fast setup changes. A high-volume rotor manufacturer may prioritize repeatability, dedicated fixtures, operator guidance, and integration with upstream and downstream operations.

Fourth, inspect installation conditions. Review floor flatness, foundation requirements, vibration sources, lifting arrangements, operator access, guarding, and service clearance. An appropriate machine can perform poorly if the surrounding installation is not controlled.

Fifth, request an application-based proposal. Provide sample drawings or part details, mass and dimensions, shaft or bore information, operating speed, correction method, production volume, acceptance criteria, and available site information. Ask the supplier to explain the proposed support arrangement and demonstrate how an operator would complete one full cycle.

Use this decision guide:

1. What are the rotor’s dimensions, mass, shaft features, and center of gravity?
2. Is horizontal or vertical loading more practical?
3. How many correction planes are required?
4. What correction method will be used?
5. How often will fixtures or rotor families change?
6. What level of operator guidance and reporting is needed?
7. What service, calibration, training, and spare-part support is available?
8. Can the machine be evaluated using representative components?

For buyers comparing suppliers, Akuracy’s information about its engineering and industrial equipment capabilities may provide useful background, but the final selection should remain application-led. The most defensible choice is the configuration that fits the rotor, correction process, facility, and quality system together.

Recommended next steps

Prepare a rotor application sheet before contacting a supplier. Include drawings or photographs, rotor dimensions, mass range, shaft or bore details, balancing planes, operating speed, correction method, daily or monthly workload, acceptance requirements, and site conditions.

Then ask each supplier to explain the proposed balancing machine configuration, fixture concept, operator workflow, installation requirements, and service arrangements. A practical evaluation using representative fan, armature, pump, or automotive rotors can reveal issues that are not apparent from a catalogue description.

For broader quality-control planning, buyers can also review Akuracy’s industrial testing machine resources when balancing equipment forms part of a larger testing laboratory or manufacturing inspection setup.
