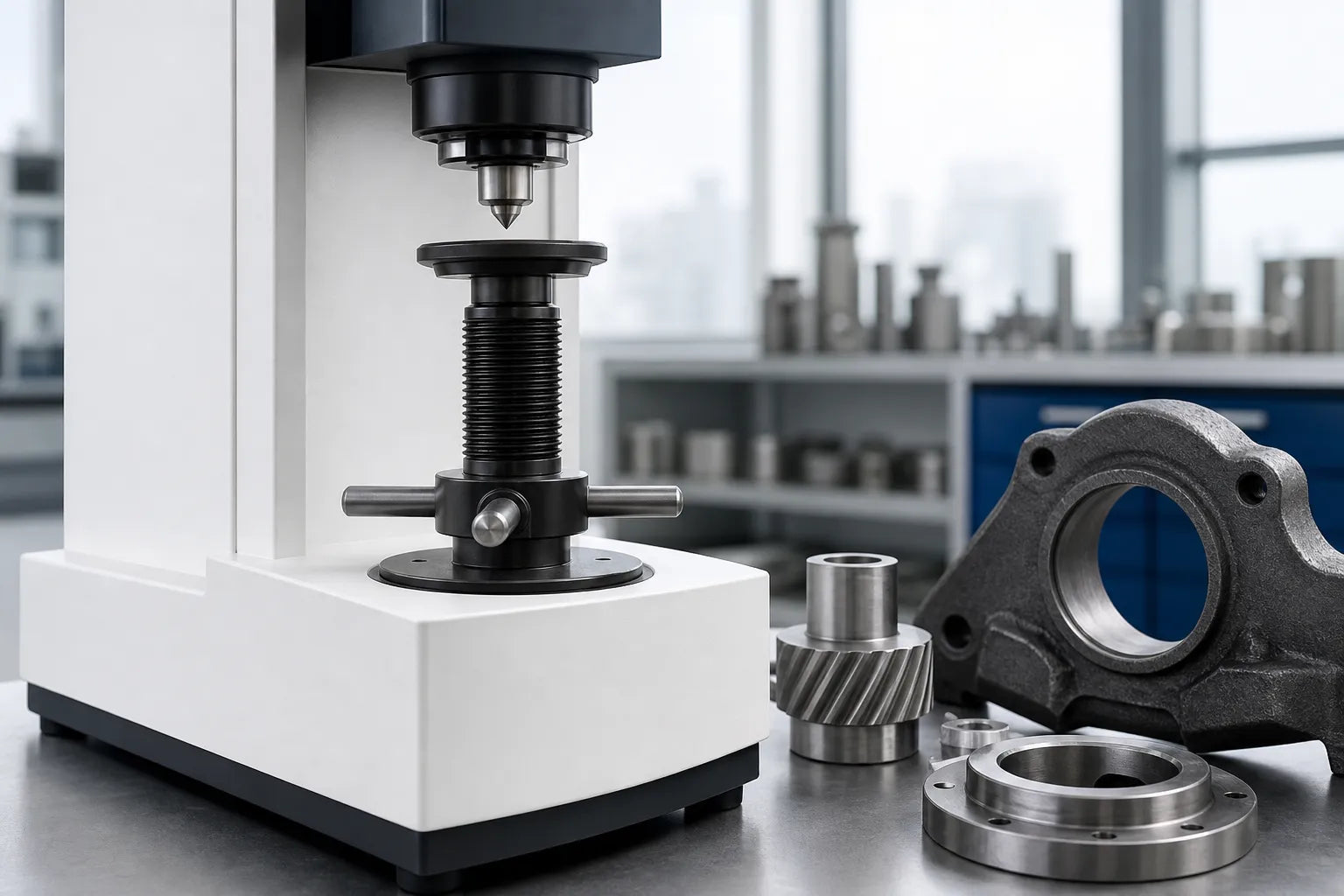

How to select a brinell hardness tester for cast and forged parts

Written by

Rajiv Nambiar

Senior Applications Engineer

11 Aug 202610 min read

Foundries and heavy engineering shops face a specific hardness testing challenge: the parts are large, the surfaces are rough, and the material structure is often coarse-grained. Brinell hardness testing is well-suited to this environment because the large indenter and high loads produce an impression that averages across grain boundaries rather than landing inside a single grain. But choosing the right brinell hardness tester for cast iron, ductile iron, steel castings, or forged billets requires more than picking the highest load available. Ball size, load combination, surface preparation requirements, part handling, and how the indentation is measured all affect whether the machine actually fits your workflow.

Quick answer: how to choose a brinell hardness tester

For most foundry and forge applications, the selection comes down to three practical decisions: the load and ball size combination your material and standard require, whether the machine can physically accommodate your parts, and how the indentation diameter will be measured.

Brinell hardness testers apply a tungsten carbide or hardened steel ball under a controlled load, hold it for a defined dwell time, and then require measurement of the resulting indentation diameter. The hardness value is calculated from that diameter and the applied load. Most foundry work follows ISO 6506 or ASTM E10, which specify load-to-ball-diameter ratios (the 0.102 × F/D² factor) to keep results comparable across different scales.

For cast iron and most steel castings, a 10 mm ball with loads between 500 kgf and 3000 kgf covers the majority of applications. Softer non-ferrous castings may use a 5 mm ball at lower loads. If you are testing a wide range of materials, a machine with selectable loads is more practical than a fixed-load unit.

The Brinell hardness testing machine category includes both bench-top and floor-standing models, and the right choice depends heavily on part size and daily throughput rather than on any single specification.

What to look for in a brinell hardness tester

Selecting a brinell hardness test machine for foundry use is not the same as selecting one for a general laboratory. The criteria below are weighted toward the realities of casting and forging environments: heavy parts, variable surface conditions, and the need for repeatable results across shifts.

For a broader view of how hardness method selection fits into a laboratory equipment strategy, the hardness testing machine selection guide covers the full range of scales and their appropriate applications.

Fit for your real use case

The first question is whether the machine physically fits the parts you test. Foundry castings and forgings are often heavy, awkward, and cannot be easily repositioned. A bench-top brinell hardness tester with a small anvil clearance will not accept a large casting flange or a forged crankshaft. Floor-standing models with deep throat depth and adjustable anvil height are generally more practical for this environment.

Consider also the range of materials you test. A ductile iron casting, a grey iron housing, and a heat-treated steel forging all require different loads. If your shop tests all three, a machine with at least three selectable load steps (typically 500, 1000, 1500, 2000, 2500, and 3000 kgf for a 10 mm ball) gives you the flexibility to stay within the valid hardness range for each material without switching machines.

Throughput matters too. If hardness testing is a production gate check rather than a periodic audit, the machine needs to cycle quickly and the indentation reading process needs to be fast enough not to become a bottleneck.

Value, price, and total cost

The purchase price of a brinell hardness tester is only part of the cost picture. Consumables — tungsten carbide balls, calibration blocks, and reference standards — are ongoing costs. Machines that use standard ball sizes sourced from multiple suppliers tend to have lower consumable costs over time than proprietary systems.

Calibration and verification are also recurring costs. A machine that supports in-house verification with certified reference blocks reduces dependence on external calibration visits. Confirm that the machine meets the requirements of your applicable standard (ISO 6506-2 or ASTM E10) for indirect verification, and check what the manufacturer or supplier offers in terms of calibration support.

Optical or digital indentation reading systems add to the upfront cost but can reduce operator time and measurement variability. For high-volume foundry use, the reduction in re-test rates and operator disputes over borderline readings often justifies the additional investment.

Maintenance access is another practical cost factor. Machines with accessible hydraulic systems, clear service documentation, and available spare parts have lower long-term downtime costs than units where service requires specialist visits for routine maintenance.

Features that actually change the experience

Some features on a brinell hardness tester specification sheet matter in daily use; others rarely affect outcomes. The following are the ones that genuinely change the experience in a foundry or forge environment.

Motorized or hydraulic load application with closed-loop control produces more consistent dwell times and load application rates than manual lever systems. Variability in how quickly the load is applied and how long it is held affects the indentation size, which affects the hardness reading. Automated load application removes this source of operator-to-operator variation.

Integrated optical measurement — a built-in microscope or camera system that measures the indentation diameter directly on the machine — is one of the most impactful features for reducing operator variation. Manual measurement with a portable optical microscope requires the operator to judge the edge of the indentation, and different operators reading the same indentation can produce different diameter values. Computerized image analysis systems capture the indentation, apply edge detection, and calculate the diameter with less subjectivity. For foundry environments where multiple operators share a machine across shifts, this matters.

Large anvil capacity and adjustable height are essential for heavy parts. Some machines include a powered elevating screw or hydraulic table lift, which reduces the physical effort of positioning heavy castings and reduces the risk of damaging the indenter by rough part placement.

A wide load range in a single machine is more useful than a narrow-range specialist unit for most foundry labs. The ability to test grey iron at 1000 kgf and hardened steel forgings at 3000 kgf on the same machine, with the same 10 mm ball, keeps the workflow simple and the calibration requirements manageable.

Tradeoffs and limitations to check first

Brinell hardness testing has real limitations that affect whether it is the right method for a given application, and understanding them before purchase prevents mismatched equipment.

The indentation is large by design. A 10 mm ball at 3000 kgf produces an impression several millimeters in diameter. This is an advantage for coarse-grained castings because it averages the hardness across multiple grains, but it means the method cannot be used on thin sections, near edges, or on finished surfaces where the indentation would be unacceptable. If your parts include thin-walled castings or precision-machined surfaces that must remain undamaged, Brinell may not be appropriate for those features.

Surface preparation is non-negotiable. The indentation diameter must be measured accurately, and a rough, scaled, or oxidized surface makes edge detection difficult whether you are using a manual microscope or a digital system. Foundry castings typically need grinding or filing at the test location to achieve a surface finish that allows reliable measurement. Factor this into your workflow time estimate.

The hardness range of the Brinell scale has an upper limit. Very hard materials — fully hardened tool steels, for example — exceed the valid range for Brinell testing with a tungsten carbide ball, and the indenter itself can be damaged. If your product mix includes very hard forgings or case-hardened parts, you will need a complementary method such as Rockwell for those materials.

Portability is limited. Bench and floor-standing brinell hardness testers are fixed-location equipment. If you need to test parts that cannot be moved to the lab — large castings still on the foundry floor, for example — a portable hardness tester using a different principle (such as Leeb rebound) may be needed as a supplement, with conversion to Brinell values used cautiously and only within the material-specific conversion tables.

How to make the right brinell hardness tester decision

Matching the machine to your actual workflow requires working through a short checklist before evaluating specific models.

Start with the material and standard. Identify which standard your customers or quality system requires (ISO 6506 or ASTM E10 are the most common), and confirm the load and ball size combinations that standard specifies for your hardness range. This immediately narrows the load range the machine must support.

Next, assess your part geometry. Measure the largest part you routinely test: its height, weight, and the clearance needed to position the test location under the indenter. Compare these against the machine's throat depth, maximum specimen height, and anvil load capacity. A machine that cannot physically accept your largest parts is not a viable option regardless of its other specifications.

Then consider your measurement method. If your lab has experienced operators who test a small number of parts per shift, a manual optical microscope system may be adequate. If throughput is high, operators rotate frequently, or your quality records require documented measurement data, a machine with integrated digital indentation measurement and data output is the more defensible choice.

Evaluate the total cost of ownership rather than the purchase price alone. Include calibration blocks, replacement balls, service contracts, and the cost of downtime if the machine requires specialist service for routine maintenance.

Finally, consider whether your foundry also evaluates other mechanical properties. Many foundry quality labs co-evaluate tensile strength alongside hardness, and understanding universal testing machine principles can help you plan a lab that handles both requirements without redundant equipment.

A practical decision framework for most foundry buyers:

• If you test grey iron, ductile iron, or steel castings in the 100–450 HBW range: a floor-standing machine with a 10 mm ball, selectable loads from 500 to 3000 kgf, and integrated optical measurement covers the majority of applications.
• If you test a narrow material range at fixed hardness levels: a fixed-load machine with a manual microscope may be sufficient and simpler to maintain.
• If you test both soft non-ferrous castings and hard steel forgings: prioritize a wide load range and confirm the machine's upper hardness limit before purchase.
• If multiple operators share the machine across shifts: integrated computerized indentation reading is worth the additional cost for consistency.

Recommended next steps

If you are at the point of evaluating specific machines, the most productive next step is to define your load range requirement and part size envelope before contacting suppliers. These two parameters eliminate most mismatches before you reach the specification comparison stage.

Review the Brinell hardness testing machine options available to compare configurations by load range, throat depth, and measurement system. If your lab also tests other material properties and you want to understand how a brinell hardness test machine fits alongside other equipment, the hardness testing machine selection guide provides a broader framework for building a complete testing capability.

Confirm with your supplier that the machine you select can be verified against your applicable standard, that calibration blocks and replacement balls are available, and that service support is accessible for your location. These practical factors often matter more in long-term operation than any single specification on the data sheet.
