Temperature is not a variable you can treat loosely in charpy impact testing. A difference of ten or twenty degrees Celsius at the moment of impact can shift a steel specimen from tough and ductile to brittle and unpredictable — and that shift is exactly what the test is designed to detect. For labs working with structural steels, pressure vessel plates, or weld coupons, understanding how temperature interacts with absorbed energy is the foundation of producing results that actually mean something.

What charpy impact testing means in practice

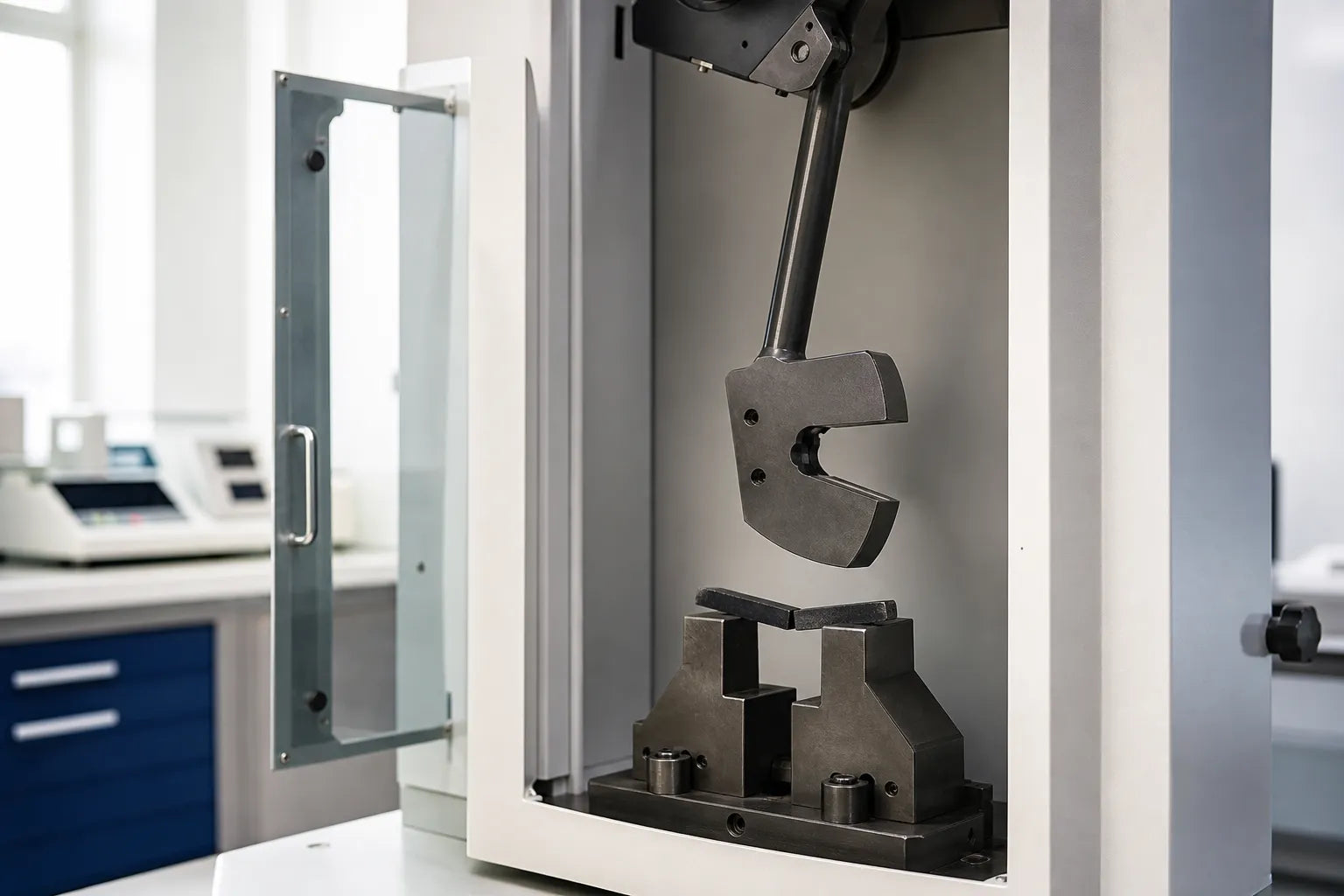

Charpy impact testing is a standardized method for measuring the energy a notched metal specimen absorbs when struck by a swinging pendulum hammer. The result — reported in joules under ISO procedures or foot-pounds under ASTM — tells you how tough a material is under dynamic loading at a specific temperature. That last phrase matters enormously: the result is only valid at the temperature at which the specimen was conditioned and struck.

The charpy impact test is used across structural steel fabrication, pipeline construction, pressure vessel manufacturing, and weld qualification. When engineers specify a minimum absorbed energy at a given temperature, they are essentially asking: will this material resist brittle fracture in the coldest conditions it will ever see in service? The test answers that question directly, but only if temperature is controlled correctly throughout the procedure.

Charpy v notch impact testing is the most common variant. The V-shaped notch acts as a stress concentrator, making the specimen sensitive to the material's fracture behavior. Alongside the Charpy method, the Izod test is the other widely used pendulum impact method, though Charpy dominates in structural and weld applications under both ASTM E23 and ISO 148-1.

How to think about charpy impact testing

Getting reliable results from impact testing charpy specimens is not just about operating the pendulum correctly. The test is sensitive to a chain of decisions that begins well before the hammer swings. Temperature control sits at the center of that chain.

The core problem to understand

Most structural steels do not fail in a single predictable mode across all temperatures. At elevated temperatures, they absorb a large amount of energy and deform plastically before fracturing — this is ductile behavior. As temperature drops, absorbed energy decreases, sometimes sharply, until the material fractures with little plastic deformation at all. This is brittle behavior, and the transition between the two modes is called the ductile-brittle transition.

The transition does not happen at a single precise temperature for most steels. It occurs across a range, and the shape of that transition curve — plotted as absorbed energy versus test temperature — is what charpy v notch impact testing is designed to map. The temperature at which absorbed energy drops to a defined threshold (often 27 J or 40 J depending on the specification) is called the transition temperature, and it is the value that engineers compare against the minimum service temperature of the structure.

This is why a lab cannot simply test at room temperature and extrapolate. A steel that absorbs 120 J at 20 °C might absorb only 18 J at −20 °C. If the specification requires 27 J at −20 °C and you only tested at room temperature, you have no idea whether the material passes or fails in service conditions.

The practical decision criteria

Once you understand the transition behavior, the practical question becomes: how do you reliably deliver a specimen to the anvil at exactly the required test temperature?

ASTM E23 and ISO 148-1 both specify conditioning requirements. Specimens must be held at the target temperature for a defined soak period — long enough for the entire cross-section to reach equilibrium, not just the surface. For sub-ambient testing, specimens are typically conditioned in a temperature-controlled bath using a liquid medium appropriate for the target range. Dry ice and alcohol baths are common for temperatures around −40 °C to −78 °C. Liquid nitrogen is used for lower temperatures.

The critical constraint is transfer time. Once a specimen is removed from the conditioning medium and placed on the anvil, it begins warming immediately. ASTM E23 limits the transfer time to five seconds. ISO 148-1 specifies a similar requirement. If transfer takes longer, the specimen temperature at the moment of impact is unknown, and the result is not valid.

This means the lab setup matters as much as the bath temperature. The distance between the conditioning bath and the anvil, the tools used to handle the specimen, and the operator's technique all affect whether the five-second window is met consistently. Labs that run charpy impact testing regularly should validate their transfer procedure as part of their quality system, not treat it as a detail.

For elevated temperature testing — less common but required for some applications — specimens are heated in a furnace or bath and the same transfer time constraint applies. The physics work in reverse: a hot specimen cools toward room temperature the moment it leaves the heating medium.

Common mistakes to avoid

The most common error in impact testing charpy specimens is assuming that the bath temperature equals the specimen temperature. A bath set to −40 °C will only deliver a specimen at −40 °C if the soak time is sufficient. Thin specimens reach equilibrium faster than full-size 10 mm × 10 mm × 55 mm specimens. Sub-size specimens — which are permitted under both ASTM and ISO when full-size material is not available — have different thermal mass and may need adjusted soak times. Always verify that your soak time is appropriate for the specimen geometry you are using.

A second common mistake is failing to account for the temperature of the tongs or transfer tools. Metal tongs that have been sitting at room temperature will conduct heat into a cold specimen during the few seconds of transfer. Pre-cooling the tongs in the conditioning bath before each transfer is a simple step that significantly improves temperature accuracy.

A third issue is bath temperature verification. The bath thermocouple or thermometer measures the fluid temperature, not the specimen temperature. If the bath is poorly stirred or the specimen is placed near the edge rather than fully submerged, the actual specimen temperature may differ from the displayed value. Calibrated temperature measurement equipment, properly positioned, is not optional — it is part of producing defensible results.

Finally, labs sometimes test at a temperature close to the transition range without recognizing that scatter in results is expected there. In the upper and lower shelves of the transition curve, replicate results are relatively consistent. In the transition region itself, results can vary widely between nominally identical specimens. Reporting a single result from the transition region without context can be misleading. Running multiple replicates and reporting the average — as most specifications require — is the correct approach.

How to apply this to charpy impact testing

Putting this into practice means building temperature control into every stage of the test workflow, not treating it as a step that happens automatically.

Start by confirming the test temperature required by the applicable specification — whether that is a material standard, a welding procedure qualification record, or a customer purchase order. Then verify that your conditioning equipment can reach and hold that temperature stably. A bath that cycles ±5 °C around the target is not adequate for precise work.

Calibrate your temperature measurement equipment on a schedule appropriate for your quality system. A thermocouple that reads two degrees low will consistently produce specimens that are two degrees warmer than intended — which in the transition region could mean the difference between a pass and a fail.

Train operators on transfer technique and time it during qualification. If your lab layout makes a five-second transfer difficult, change the layout. The pendulum machine and the conditioning bath should be as close together as practical.

Document everything: bath temperature, soak time, transfer time, ambient temperature, and the identity of the operator. When a result is questioned — by a customer, an auditor, or a third-party reviewer — this documentation is what allows you to demonstrate that the test was conducted correctly.

For weld coupon testing in particular, note that the notch location relative to the weld centerline, heat-affected zone, or fusion line is specified in the welding procedure or qualification standard. Temperature control errors and notch location errors are the two most common sources of invalid results in weld impact testing. Getting both right is what separates a valid qualification from one that has to be repeated.

If you are evaluating or upgrading your lab's impact testing capability, the Akuracy homepage is a useful starting point for understanding what equipment and support options are available for testing laboratories.

Recommended next steps

Temperature control in charpy impact testing is a discipline, not a checklist item. The labs that produce consistently reliable results are the ones that treat specimen conditioning, transfer time, and temperature verification as core competencies rather than background assumptions.

If your lab is setting up a new impact testing capability or reviewing an existing one, the logical starting points are the governing standards — ASTM E23 for most North American work, ISO 148-1 for international applications — and an honest assessment of whether your current equipment and procedures meet their requirements.

Understanding how your pendulum machine is calibrated, how your temperature measurement equipment is verified, and how your operators are trained on transfer technique will tell you more about the quality of your results than any single test report. For labs that also perform hardness testing, tensile testing, or other mechanical property work alongside charpy impact testing, consistent calibration practices across all equipment types are what underpin a credible quality system. Exploring the full range of material testing equipment and services at akuracy.org can help you identify where gaps exist and what support is available to address them.
