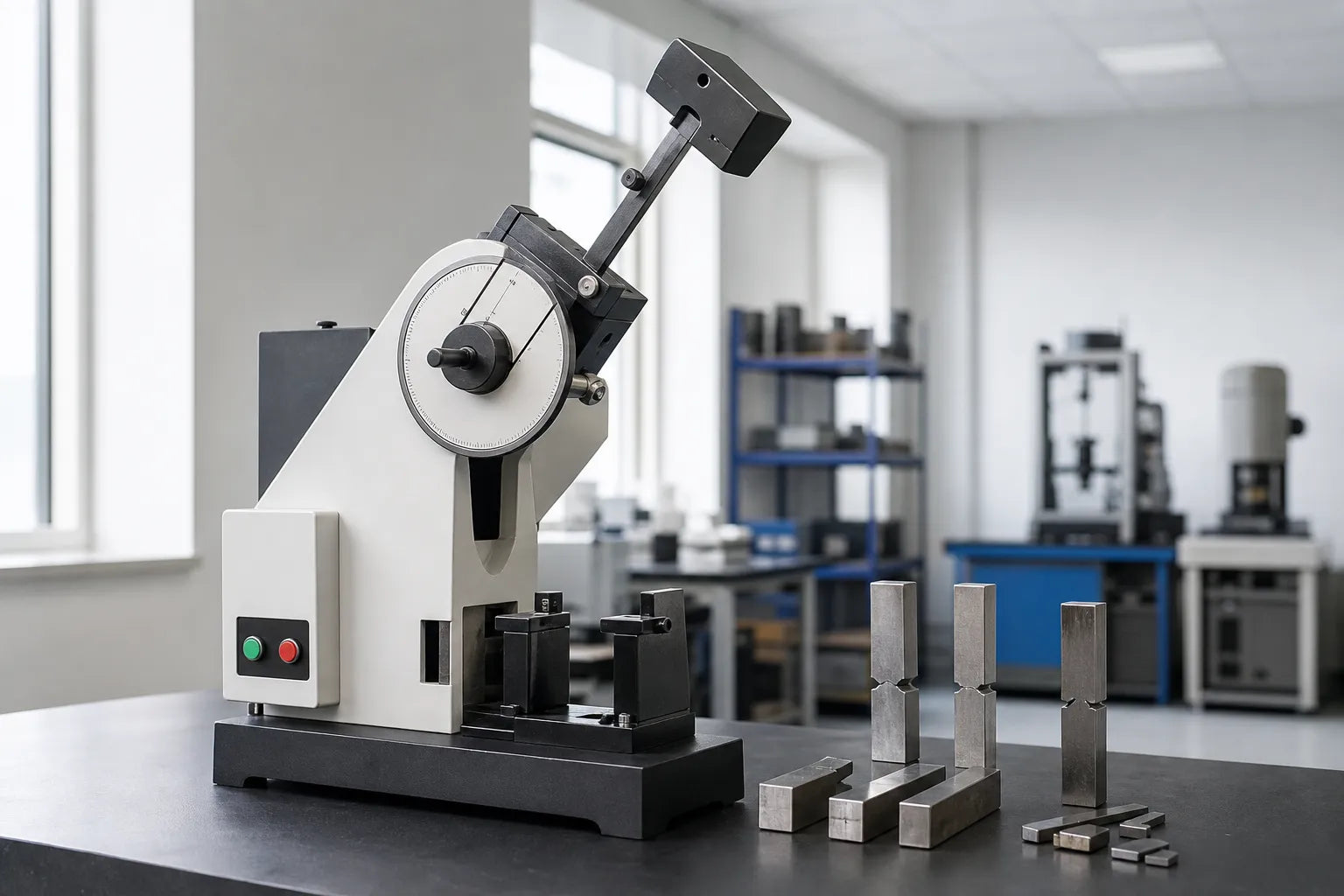

How to buy a Charpy testing machine for plant and lab use

Buying a Charpy testing machine is a decision that touches quality control, regulatory compliance, and long-term lab productivity. Whether you are equipping a new metallurgical lab, replacing aging equipment, or scaling up production-line verification, the criteria you set before issuing an RFQ will determine whether the machine you receive actually fits your workflow. This guide walks procurement teams and lab managers through the technical and commercial questions that matter most, so you can evaluate options with confidence rather than relying on brochure claims alone.

Quick answer: how to choose a Charpy testing machine

The most important factors when selecting a Charpy testing machine are pendulum energy capacity, striker geometry, anvil support spacing, specimen compatibility, and the verification and software capabilities that your standard requires. Most buyers also need to decide between manual, semi-automatic, and fully automatic configurations before they can compare machines meaningfully.

If your work is governed by ASTM E23 or ISO 148-1, those standards define the permissible tolerances for striker radius, support spacing, and pendulum alignment — so the machine must be verifiable against those tolerances, not just nominally compliant. If you are testing sub-size specimens or non-standard geometries, confirm that the machine supports the relevant anvil and striker combinations before anything else.

For a broader foundation on why impact energy matters in material characterization, the article on fatigue and impact testing principles provides useful context on how Charpy results relate to ductile-to-brittle transition behavior and fracture mechanics.

The short decision rule: match pendulum capacity to your highest expected absorbed energy, confirm standard compliance at the geometry level, and treat software outputs and service availability as non-negotiable secondary filters. Browsing the full range of impact testing machine options is a practical starting point once you have your capacity and standard requirements written down.

What to look for in a Charpy testing machine

Choosing a Charpy impact testing machine well means working through a structured set of criteria rather than comparing headline specifications in isolation. The sections below address each criterion in turn.

Fit for your real use case

The first question is what you are actually testing and how often. A plant running incoming inspection on structural steel plate has different demands than a research lab characterizing low-temperature toughness of pipeline welds. Volume, specimen type, temperature conditioning requirements, and the standards you report against all shape which machine configuration is appropriate.

For high-throughput production environments, a semi-automatic or automatic Charpy impact tester with motorized specimen positioning and integrated temperature conditioning reduces operator fatigue and improves repeatability. For lower-volume or R&D use, a manual pendulum machine with a high-resolution encoder may be sufficient and easier to maintain.

Consider also whether you need combined Charpy and Izod capability. Many machines offer interchangeable strikers and anvils to support both test methods, which can be valuable if your lab handles diverse material types. However, dual-configuration machines require careful verification for each setup, so factor that into your calibration and qualification plan.

Temperature conditioning is a separate but related decision. If your specifications require testing at sub-zero or elevated temperatures, you will need a compatible conditioning bath or furnace and a transfer mechanism that keeps the specimen within the required temperature window between conditioning and impact. Confirm the transfer time your machine design allows and compare it against the tolerance your standard permits.

Value, price, and total cost

The purchase price of a Charpy impact testing machine is only one part of the cost picture. Calibration, striker and anvil replacement, software licensing, operator training, and service contracts all contribute to total cost of ownership over a five-to-ten-year horizon.

Machines with proprietary software or non-standard mechanical interfaces can create ongoing dependency on a single supplier for consumables and support. Before committing, ask the supplier what replacement parts are stocked locally, what the lead time is for a replacement striker, and whether calibration can be performed by an accredited third-party lab or only by the manufacturer's technicians.

Verification consumables — certified reference specimens — are a recurring cost that buyers sometimes overlook. ASTM E23 and ISO 148-2 both specify the use of reference specimens for periodic machine verification. Confirm that certified reference specimens for your energy range are available from multiple sources, and factor their cost and availability into your operating budget.

Energy capacity also affects cost. Machines with higher maximum pendulum energy are generally more expensive, but buying a machine with insufficient capacity forces retesting or workarounds. If your material range includes high-toughness alloys or weld qualifications that may approach or exceed the machine's capacity, size up rather than down.

Features that actually change the experience

Some features on a Charpy impact tester specification sheet are genuinely useful in daily operation; others are rarely used after commissioning. Here is how to separate them.

Encoder resolution and data acquisition matter more than they appear. A high-resolution optical encoder on the pendulum shaft allows the machine to capture absorbed energy with finer granularity and supports instrumented impact testing if you need load-versus-displacement data in addition to absorbed energy. If your standard or customer specification requires instrumented results, confirm that the machine's data acquisition system meets the relevant requirements before purchase.

Automatic specimen centering and positioning reduces the largest source of operator-induced variability in Charpy testing. Even in manual machines, a well-designed centering tool with positive stops improves test-to-test consistency. For high-volume labs, motorized positioning with a specimen magazine is worth the additional cost.

Software outputs are increasingly important for traceability. Look for machines that generate test reports with all required fields — specimen ID, test temperature, absorbed energy, lateral expansion, fracture appearance if required — and that export data in formats compatible with your laboratory information management system. Proprietary formats that require manual transcription introduce transcription errors and slow down reporting.

Safety interlocks are a must-have, not a nice-to-have. A pendulum carrying several hundred joules of energy is a serious hazard. Confirm that the machine has a secure pendulum latch, a guarded test area, and an interlock that prevents the pendulum from being released while the test area is open.

Tradeoffs and limitations to check first

Every Charpy impact testing machine involves tradeoffs, and understanding them before purchase prevents post-delivery disappointment.

Pendulum capacity is the most common mismatch. A 300 J machine is not simply a larger version of a 150 J machine — the frame, bearings, and foundation requirements are different. If your facility has floor load or ceiling height constraints, confirm that the machine's physical envelope and foundation requirements are compatible before finalizing the specification.

Striker geometry tolerances tighten as standards evolve. ISO 148-1 and ASTM E23 have been revised over the years, and older machines may not meet current geometric tolerances for striker radius or support spacing without modification. If you are buying a used or refurbished machine, have it independently verified against the current edition of your applicable standard before accepting it.

Sub-size specimen capability is not universal. If your application involves thin-section material or tube specimens that require sub-size Charpy specimens, confirm that the machine's anvil and striker set supports those geometries and that the machine has been verified at the sub-size energy levels you expect.

Instrumented impact testing requires additional hardware and software that is not included in all base configurations. If you anticipate needing load-time or load-displacement data, clarify upfront whether the instrumented capability is built in or an add-on, and what the upgrade path looks like.

How to make the right Charpy testing machine decision

Translating the criteria above into an actual purchase decision requires a structured process. The following steps give procurement teams a practical framework.

Start by writing a one-page test requirement summary before you contact any supplier. Include: the standards you must comply with (ASTM E23, ISO 148-1, or others), the specimen types and sizes you will test, the energy range you expect, whether you need temperature conditioning, your expected test volume per week, and any software or data integration requirements. This document becomes the basis for your RFQ and prevents suppliers from proposing machines that are technically incompatible with your needs.

When evaluating proposals, ask each supplier to provide a dimensional drawing of the striker and anvil geometry with tolerances, a list of the standard editions the machine has been verified against, and a sample verification report from a recent machine delivery. If a supplier cannot provide these, treat that as a significant risk indicator.

Specimen preparation is a prerequisite that affects machine selection. Charpy specimens require precise notch geometry — V-notch or U-notch depending on your standard — and the notch must be machined to tight dimensional tolerances. If you are setting up a complete testing capability rather than adding a machine to an existing lab, a notch broaching machine is the standard tool for producing consistent, standard-compliant notches at production volume. Confirm that your specimen preparation process is in place before commissioning the impact machine, because notch geometry errors will produce invalid results regardless of how well the pendulum machine is calibrated.

Service and support questions to resolve before signing a purchase order:

• What is the supplier's response time for on-site service in your location?
• Are calibration weights and reference specimens supplied with the machine or purchased separately?
• What is the warranty period and what does it cover?
• Is operator training included, and is it on-site or remote?
• What is the lead time for replacement strikers and anvils?

Finally, plan your verification schedule before the machine arrives. ISO 148-2 and ASTM E23 both describe indirect verification using certified reference specimens. Establish which energy levels you will verify, how frequently, and who will perform the verification. Building this into your quality management system before commissioning avoids gaps in your traceability record.

Plants that also need surface hardness data on the same materials should note that the hardness tester selection guide covers complementary criteria for selecting Rockwell and other hardness instruments, which are often procured alongside impact testing equipment in quality lab buildouts.

Recommended next steps

Before issuing an RFQ for a Charpy impact testing machine, consolidate your test requirements into a written specification that covers standard edition, specimen types, energy range, temperature conditioning needs, and software integration requirements. Use that document to evaluate proposals on a consistent basis rather than comparing brochure specifications.

Confirm that your specimen preparation process — particularly notch machining — is either already in place or will be procured alongside the impact machine. Gaps in specimen preparation are one of the most common reasons that a newly commissioned Charpy impact tester produces out-of-specification or inconsistent results.

Review the verification requirements of your applicable standard and build a verification schedule into your quality management system before the machine arrives. Traceability gaps discovered after commissioning are significantly more disruptive than those addressed during procurement planning.
