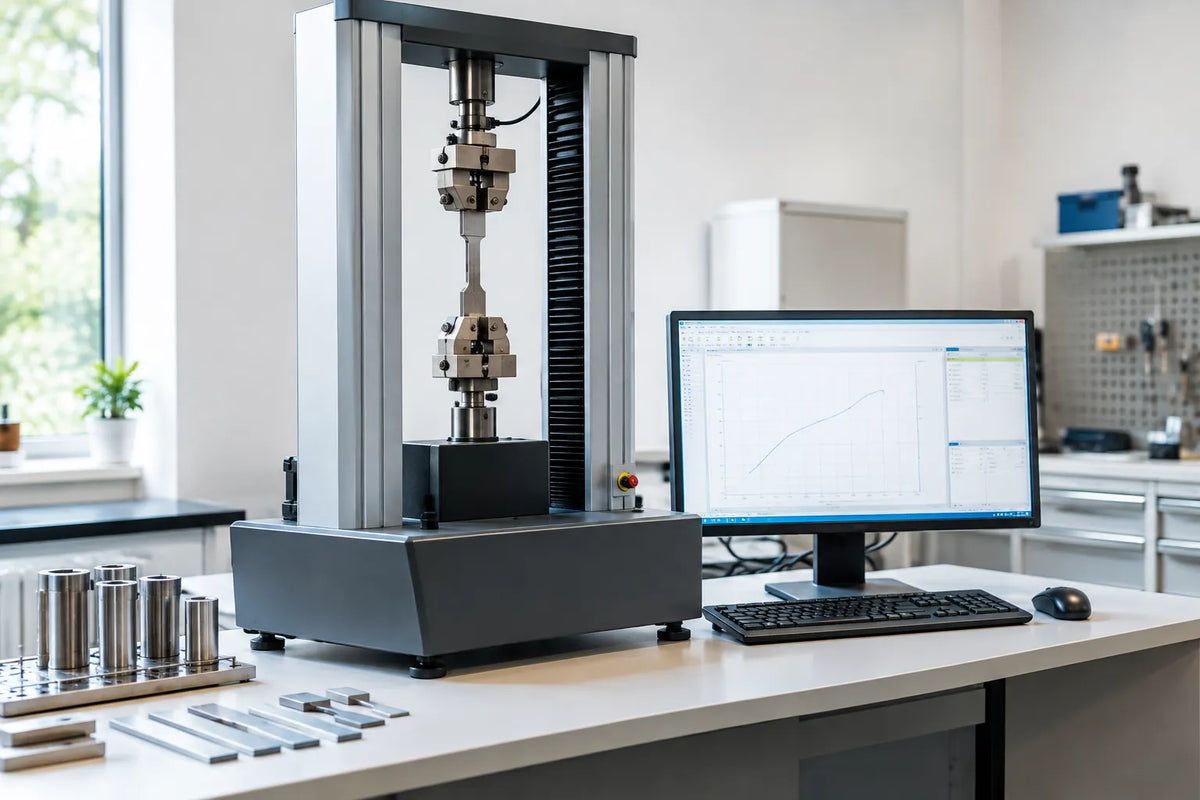

How to choose a computerized universal testing machine

Written by

Raghav Menon

Technical Editorial Lead

28 Sep 202611 min read

A computerized universal testing machine should be evaluated as a complete testing system, not simply as a rated load frame. Capacity, force measurement, software, fixtures, calibration, operator training, genuine spare parts, and repair support all affect whether the machine can produce defensible results in routine laboratory work.

For Indian quality-control teams, the right buying decision begins with a written specification and ends with documented acceptance checks. The quoted universal testing machine cost is only one part of the ownership decision.

Define the Tests Your Laboratory Must Run

Before comparing suppliers, document the materials, specimen dimensions, test methods, force range, testing speed, and reporting requirements. A machine suitable for routine metal tensile testing may not automatically be suitable for every compression, bend, elongation, or special-purpose application.

A practical requirement sheet should include:

• Materials to be tested, such as metals, plastics, rubber, composites, concrete-related specimens, or other products
• Tensile, compression, bend, proof-load, elongation, or related tests required
• Expected minimum and maximum test forces
• Specimen shape, width, thickness, length, and gripping requirements
• Applicable standards and laboratory procedures
• Required data outputs, calculations, and report formats
• Expected future applications

This information helps separate essential capability from optional features. It also reduces the risk of buying a machine that appears attractive on paper but cannot accommodate the laboratory’s actual specimens.

Match Capacity and Working Space to Specimens

Rated capacity is important, but it does not determine suitability by itself. Check the usable force range, test width, crosshead travel, daylight, throat or frame clearance, and the dimensions of the specimens and fixtures.

For example, a laboratory may require a high-capacity frame for structural or metal testing but also perform lower-force tests on smaller specimens. In that case, the load-cell arrangement and measurement resolution deserve as much attention as the maximum force rating.

Ask the supplier to state clearly:

1. The maximum force capacity.
2. The recommended working range for the proposed load cell.
3. Available clearance between grips or compression platens.
4. Crosshead travel and adjustment method.
5. Maximum specimen size for each planned test.
6. Whether future fixtures can be installed without modifying the frame.

A compression testing machine application may need adequate platen size and alignment, while tensile testing equipment may require a specific grip opening, jaw design, and elongation measurement arrangement. The correct choice is the machine that fits the complete test method, not merely the highest-capacity model.

Choose the Drive and Control Arrangement

Hydraulic and screw-driven universal testing machines can serve different laboratory priorities. A hydraulic arrangement may be appropriate where high force, robust loading, or a broad range of industrial tests is required. A screw-driven arrangement may suit laboratories that prioritise controlled movement, lower-force testing, or particular speed and displacement requirements.

The comparison should cover:

• Force range and expected loading pattern
• Required test speed and speed stability
• Continuous or intermittent laboratory use
• Hydraulic power-pack maintenance, where applicable
• Noise, floor space, and site conditions
• Ease of operator control
• Availability of service personnel and replacement components

Do not select the drive system from a generic preference. Relate it to the materials, specimen sizes, test methods, daily workload, and maintenance resources available at the site.

Check Measurement Accuracy and Test Compliance

A computerized universal testing machine should be assessed against the laboratory’s required accuracy and verification process. A nominal capacity statement does not establish suitability for IS 1608 Grade 1 testing or any other required classification.

Request the proposed accuracy class, applicable verification details, force-measurement method, speed-control information, and calibration documentation. The supplier should also explain which conditions apply to the stated performance, including the selected load cell and test setup.

Assess Load-Cell Accuracy Across the Working Range

Load-cell selection strongly influences the quality of an individual utm test. A load cell chosen only for the machine’s maximum capacity may not provide the most suitable measurement resolution for lower-force specimens.

Discuss the actual force range of each test. If a laboratory tests both small tensile specimens and high-load components, it may need a planned load-cell strategy rather than one sensor for every application.

Ask these questions before placing an order:

• Which load cell is included?
• What force range will be used for each test method?
• Is a second load cell required for low-force work?
• How are load cells identified and protected from overload?
• Are genuine spare load cells available through the service channel?
• How will the installed load cell be documented at commissioning?

The decision rule is simple: select measurement hardware around the force range and uncertainty needs of the tests, not around the largest number in the machine name.

Confirm Calibration and Traceable Verification

Calibration should be treated as part of commissioning and continuing laboratory control. Request the calibration or verification records supplied with the computerized universal testing machine, together with the identity of the equipment used and the relevant acceptance criteria.

The laboratory should clarify:

• Whether force measurement is verified before routine use
• Which components are covered
• Whether speed, displacement, and extensometer channels are checked where relevant
• What certificate or report is supplied
• When the next verification is due
• Who is responsible for calibration after installation
• How nonconforming results will be handled

For a laboratory working toward NABL requirements, retain the machine specification, purchase documents, calibration records, software information, operating instructions, training records, and acceptance results in a controlled equipment file. IS 1608 Grade 1 suitability should be confirmed from documented technical evidence rather than assumed from a sales description.

Evaluate Software, Reports, and Test Fixtures

Computerisation adds value only when the software supports the laboratory’s test methods and preserves understandable records. During evaluation, ask for a practical demonstration using a representative test setup rather than relying on screenshots or a feature list.

The demonstration should show test creation, specimen data entry, live monitoring, result calculation, report generation, data storage, and recovery after an interrupted test where relevant.

Review Test Setup and Digital Reporting

A useful software review should cover:

• Method templates and editable test parameters
• Live force, displacement, and time information
• Load-extension or other relevant curves
• Calculations required by the laboratory procedure
• User access and approval controls
• Data export options
• Report fields, units, specimen identification, and result traceability
• Storage and backup arrangements
• Ability to identify the machine, load cell, operator, and test date

The report should make it clear what was tested, how it was tested, and which result was obtained. Avoid accepting a system that produces attractive graphs but leaves critical settings or specimen information unclear.

A supplier comparison should distinguish between software included in the quoted universal testing machine cost and software options that require additional licensing, configuration, or later payment.

Specify Grips, Extensometers, and Compression Tools

Fixtures are not minor accessories. Grip geometry, surface condition, alignment, and specimen compatibility directly influence the test result.

Specify the required accessories by application:

• Wedge or other tensile grips
• Grips for flat, round, thin, or delicate specimens
• Compression platens
• Bend fixtures
• Extensometers
• Adapters and alignment components
• Special fixtures for planned future tests

For each fixture, record the specimen dimensions, material, expected force, operating range, and applicable method. Confirm whether the fixtures are included, optional, or supplied separately.

For example, a metal tensile test may need a grip designed to prevent slippage without damaging the specimen. A compression test may depend on platen size and alignment. A future application may require an extensometer that is not part of the standard supply. These details should appear in the written offer.

Calculate Ownership Cost and Service Readiness

The lowest initial quote may not represent the lowest practical ownership cost. A proper comparison includes installation, site preparation, calibration, training, fixtures, software, preventive maintenance, consumables, spares, and repair arrangements.

For broader guidance on comparing offers, see UTM Machine Price: What Indian Buyers Should Compare. A separate review of quote scope is available in UTM Machine Price: What a Defensible Quote Includes.

Look Beyond the Quoted Machine Price

Ask suppliers to separate one-time and recurring costs. The evaluation should identify:

• Machine frame and drive system
• Load cells and additional measurement channels
• Grips, platens, fixtures, and extensometers
• Computer, control system, and software
• Installation and commissioning
• Site preparation and utilities
• Calibration or verification
• Operator training
• Warranty coverage and exclusions
• Preventive maintenance
• Replacement load cells, grips, seals, and other genuine spares
• Travel, freight, or other service-related charges where applicable

This structure makes universal testing machine cost easier to compare across suppliers. It also exposes offers where essential fixtures or commissioning services have been excluded from the headline price.

Training should cover safe specimen installation, correct fixture selection, machine limits, load-cell handling, method setup, report review, routine care, and basic fault identification. A trained operator reduces the risk of invalid tests and avoidable damage.

Verify Support, Spares, and Repair Response

A machine can be technically suitable and still create operational risk if support is difficult to access. Before purchase, ask for a written explanation of the service process in India.

Important questions include:

• Who provides installation and commissioning?
• What is the process for reporting a fault?
• How are urgent breakdowns escalated?
• Which genuine spare load cells and grips can be supplied?
• Are hydraulic or electrical service parts supported?
• What operator and maintenance training is provided?
• What work is covered by the warranty?
• How are calibration and repair visits arranged?
• What documentation accompanies replacement parts and service work?

Do not accept vague statements such as “full support” without defining the scope. Response time, service coverage, repair cost, and availability of genuine spares should be discussed before the purchase order, particularly when the machine is essential to production release or paid laboratory testing.

Build a Defensible Shortlist and Acceptance Plan

A defensible shortlist connects every supplier response to the same written requirement. This protects the laboratory from comparing one complete offer with another offer that excludes fixtures, software, calibration, or training.

For additional cost-comparison context, see Universal Testing Machine Cost: A Quote Comparison.

Compare Suppliers Against One Written Specification

Create a requirement matrix with columns for requirement, supplier response, evidence, inclusion status, and comments. Include at least:

• Test types and materials
• Capacity and working range
• Frame dimensions and specimen space
• Load-cell details and accuracy
• Speed and displacement control
• IS 1608 Grade 1 suitability, where required
• Software functions and digital reports
• Grips, fixtures, and extensometers
• Calibration and verification documents
• Electrical and site requirements
• Installation and commissioning
• Operator training
• Warranty and service process
• Genuine spare-parts support
• Delivery scope and exclusions

If a supplier proposes an equivalent alternative, record the deviation and obtain technical approval before ordering. A verbal assurance should not replace a written specification.

This process is especially important when replacing a failed machine. The delivered unit should be traceable to the agreed model, capacity, configuration, accessories, and documentation. Photographs, serial numbers, drawings, and a signed configuration list can help establish what was inspected and what was ordered.

Use Factory and Site Acceptance Checks

Acceptance should confirm both identity and function. Before dispatch, where practical, verify the machine configuration against the purchase specification. At the site, check:

1. Machine identification, serial numbers, and rated capacity.
2. Frame condition, alignment, guards, and safety functions.
3. Installed load cell and supplied fixtures.
4. Crosshead or actuator movement.
5. Force measurement and zero stability.
6. Speed and displacement control.
7. Software installation and user access.
8. Test setup, data capture, calculations, and report output.
9. Calibration or verification documentation.
10. Electrical connections and site utilities.
11. Operator training and handover records.
12. Manuals, drawings, certificates, and spare-part information.

Use representative specimens or an agreed demonstration method where appropriate. The acceptance record should identify any open issue, responsible party, and closure requirement.

Do not release the computerized universal testing machine for routine testing solely because it powers on. Confirm that the delivered configuration matches the inspected and agreed specification and that the laboratory can operate, verify, and maintain it.

Share Your Testing Requirements with Akuracy

A sound specification should state the specimen material and dimensions, test types, force capacity, applicable standard, expected test range, fixtures, reporting needs, site conditions, calibration expectations, training requirements, and service support needs.

Providing these details allows a technical proposal to be evaluated against the actual laboratory application rather than against a generic machine description. For a computerized universal testing machine, that application-led approach is the best way to compare quality, specification match, ownership risk, and long-term testing needs.
