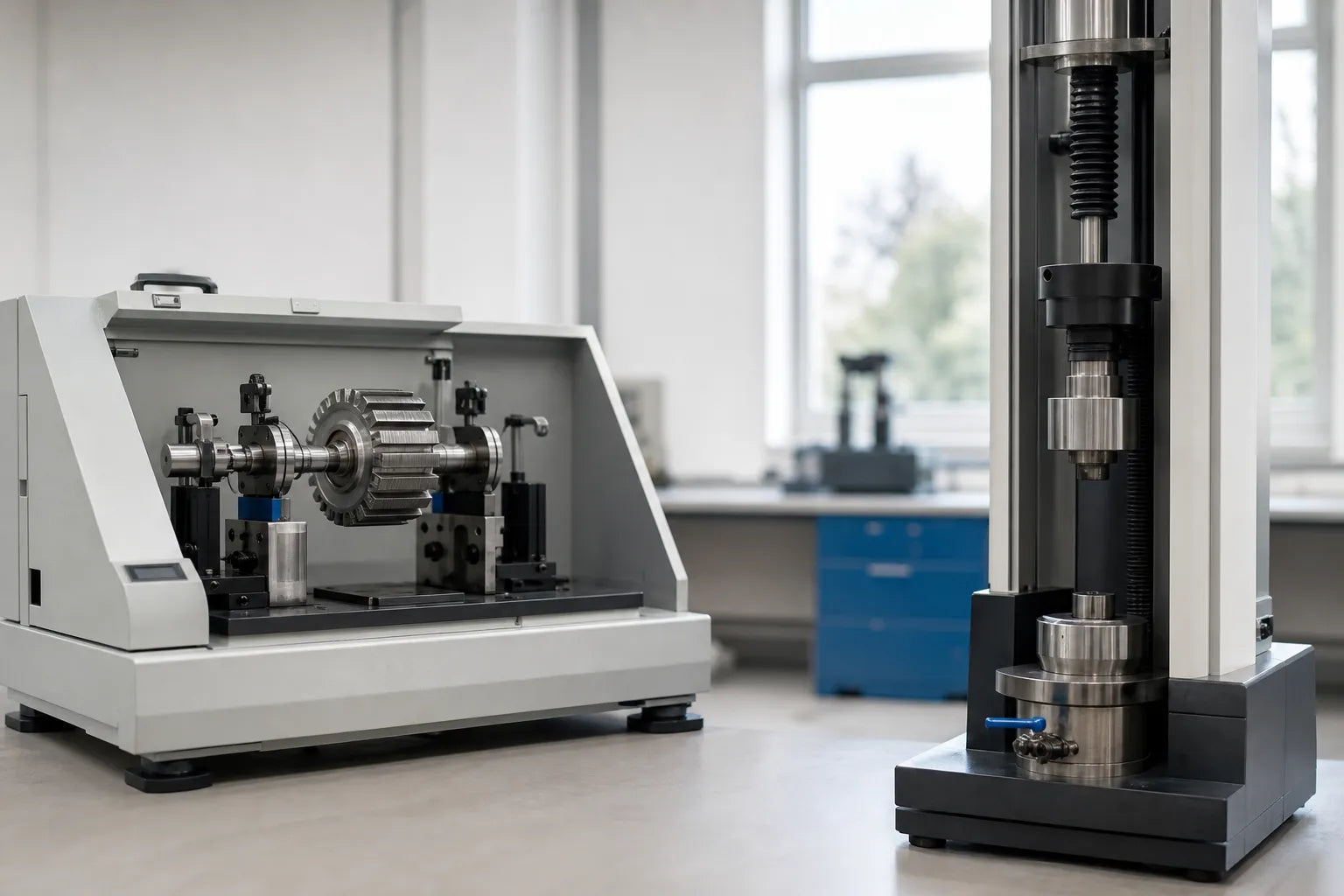

Choosing between a horizontal dynamic balancing machine and a vertical hard-bearing system usually comes down to rotor geometry, correction access, and how your parts move through the shop floor. Both configurations rest on the same balancing theory of machines — measuring vibration response to locate unbalance and guide correction — but the mechanical layout changes what's practical to load, spin, and fix. This guide compares the two setups by fit, tradeoffs, and limitations so you can match the configuration to your part family rather than the other way around.
dynamic balancing machine compared at a glance
| Criteria | Horizontal dynamic balancing machine | Vertical hard-bearing system |
|---|---|---|
| Best fit | Shaft-like rotors with two support journals (rotors, armatures, pump shafts) | Disc-like or short-axis rotors that stand naturally on end (flywheels, brake rotors, fans) |
| Ideal use case | Production lines handling long, cylindrical parts | Parts where the natural mounting orientation is upright |
| Main strength | Familiar setup for rotors that already run horizontally in service | Loading and unloading without reorienting the part |
| Key tradeoff | Needs adequate bay length and journal access for larger rotors | Needs headroom and a stable base, and may require different tooling per part shape |
Neither configuration is universally better; the decision depends on what the part looks like and how it moves through your process. For a broader look at the balancing machine category and the range of configurations available, the Balancing Machine collection is a useful starting reference. And because correction access ties closely to how a part is tested elsewhere in the quality chain, it's worth checking related equipment decisions like those covered in the impact testing machine compliance guide.
Compare dynamic balancing machine by the criteria that matter
Dynamic balancing machines all apply the same underlying principle: spin the rotor, measure the resulting vibration or force at each bearing support, and calculate the correction needed at one or more planes. Where horizontal and vertical hard-bearing configurations diverge is in how the rotor is supported, how corrections are accessed, and how well the setup matches your production rhythm. The sections below walk through fit, value, and limitations using the same criteria for both.
Fit and use case
A horizontal dynamic balancing machine suits rotors that are naturally longer than they are wide — shafts, armatures, cardan assemblies, and similar parts that already run on a horizontal axis in their final application. Mounting mirrors the in-service orientation, which can simplify fixturing decisions for these part families.
A vertical hard-bearing system suits rotors that are disc-shaped or short relative to their diameter — flywheels, clutch plates, fan hubs, and brake rotors. These parts often sit flat and stable when stood on end, so loading and unloading is straightforward without needing to support an overhanging shaft. If your part catalog is a mix of both geometries, some operations run parallel lines rather than trying to force one configuration to handle everything.
Value and tradeoffs
Value in a balancing machine setup isn't just about the base configuration — it's about how well the layout matches your existing handling equipment, operator training, and correction methods. A horizontal dynamic balancing machine tends to fit naturally into lines where parts already move on roller conveyors or between horizontal work centers, so the tradeoff is mainly floor length rather than added handling steps.
A vertical hard-bearing system can reduce handling time for disc-like parts because operators don't need to reorient the rotor before or after the balance run, but the tradeoff shows up in floor height requirements and in tooling: different rotor diameters and bore patterns may need dedicated fixtures. Buyers weighing value should look at total handling time across the whole job, not just the balancing cycle itself.
Limitations and deal-breakers
A horizontal setup becomes a poor fit when rotors are short, wide, or naturally stand upright — forcing them into a horizontal cradle can complicate fixturing and correction access. It's also a weaker choice where floor space is tight in the length direction, since longer rotors need proportionally longer support spans.
A vertical hard-bearing system runs into limits when rotor length exceeds what the vertical column can comfortably support, or when a facility's ceiling height constrains the stack-up of rotor plus fixturing plus access clearance for correction tools. It can also be a poor fit if your part mix is dominated by shaft-type rotors, since forcing those into a vertical orientation adds handling complexity rather than removing it.
Decision rule for dynamic balancing machine
Start with the rotor, not the machine. If most of your parts are shaft-like and already handled horizontally elsewhere in your process, a horizontal dynamic balancing machine keeps handling consistent end to end. If most parts are disc-like, short-axis, or naturally stand on end, a vertical hard-bearing configuration usually reduces reorientation steps.
Where your part mix is genuinely split, weigh throughput against floor space: a single configuration forced onto the wrong geometry usually costs more in fixturing and cycle time than running two dedicated setups, if space allows. Operator skill also matters — teams already trained on one orientation may see fewer errors sticking with the familiar layout during a transition period.
Balancing decisions rarely happen in isolation from other lab or line testing needs. If hardness verification is also part of your incoming or in-process quality checks, the hardness testing machine selection guide covers criteria that follow a similar buyer logic: match the equipment to the part geometry and the workflow, not the other way around.
FAQ about dynamic balancing machine
What is a dynamic balancing machine?
A dynamic balancing machine measures unbalance in a rotating part by spinning it and recording vibration or force at its supports, then calculates where and how much correction is needed.
How does a dynamic balancing machine work?
It spins the rotor at a controlled speed, senses vibration signals at each bearing or support, and processes them against balancing theory of machines principles to locate the unbalance angle and magnitude.
How much does a dynamic balancing machine cost?
Cost varies by configuration, capacity, and tooling needs, so a specific figure isn't reliable to quote here; request a quote based on your rotor specifications and production volume.
What is a dynamic balancing tool?
The term generally refers to the instrumentation and sensors — such as vibration pickups and a phase reference — used with a balancing machine to detect and quantify unbalance.
What should readers know first about dynamic balancing machine?
Start by identifying your rotor geometry and correction method, since these two factors drive whether a horizontal or vertical hard-bearing configuration will fit your process better.
How do you choose the right dynamic balancing machine approach?
Match the machine orientation to your dominant rotor shape, then confirm floor space, correction access, and operator familiarity before finalizing a configuration.
What mistakes should you avoid with dynamic balancing machine?
Common mistakes include choosing an orientation based on available floor space alone, without checking rotor geometry, and underestimating tooling changes needed between part families.
Is dynamic balancing machine worth it for daily use?
For any operation running rotating parts at volume, consistent balancing checks help catch unbalance before it reaches the field, making regular use a practical part of quality control.
Recommended next steps
Before committing to a configuration, map your current and near-future part mix by geometry, then check that against available floor length and headroom in your facility. Reviewing the qualitative fit criteria above alongside your own handling workflow — rather than choosing based on machine familiarity alone — will point you toward the horizontal or vertical hard-bearing setup that fits your dynamic balancing machine needs with the fewest downstream compromises.
