Fatigue testing principles every materials and product lab should know

Fatigue is one of the most common causes of structural failure in engineering components, yet it remains one of the least intuitive failure modes to reason about. A part can survive a single large load without any visible damage, then crack and fracture after millions of smaller, repeated loads that individually seem harmless. Understanding how and why that happens is the foundation of any serious materials or product testing program — and it shapes every decision about how a lab sets up its endurance testing capability.

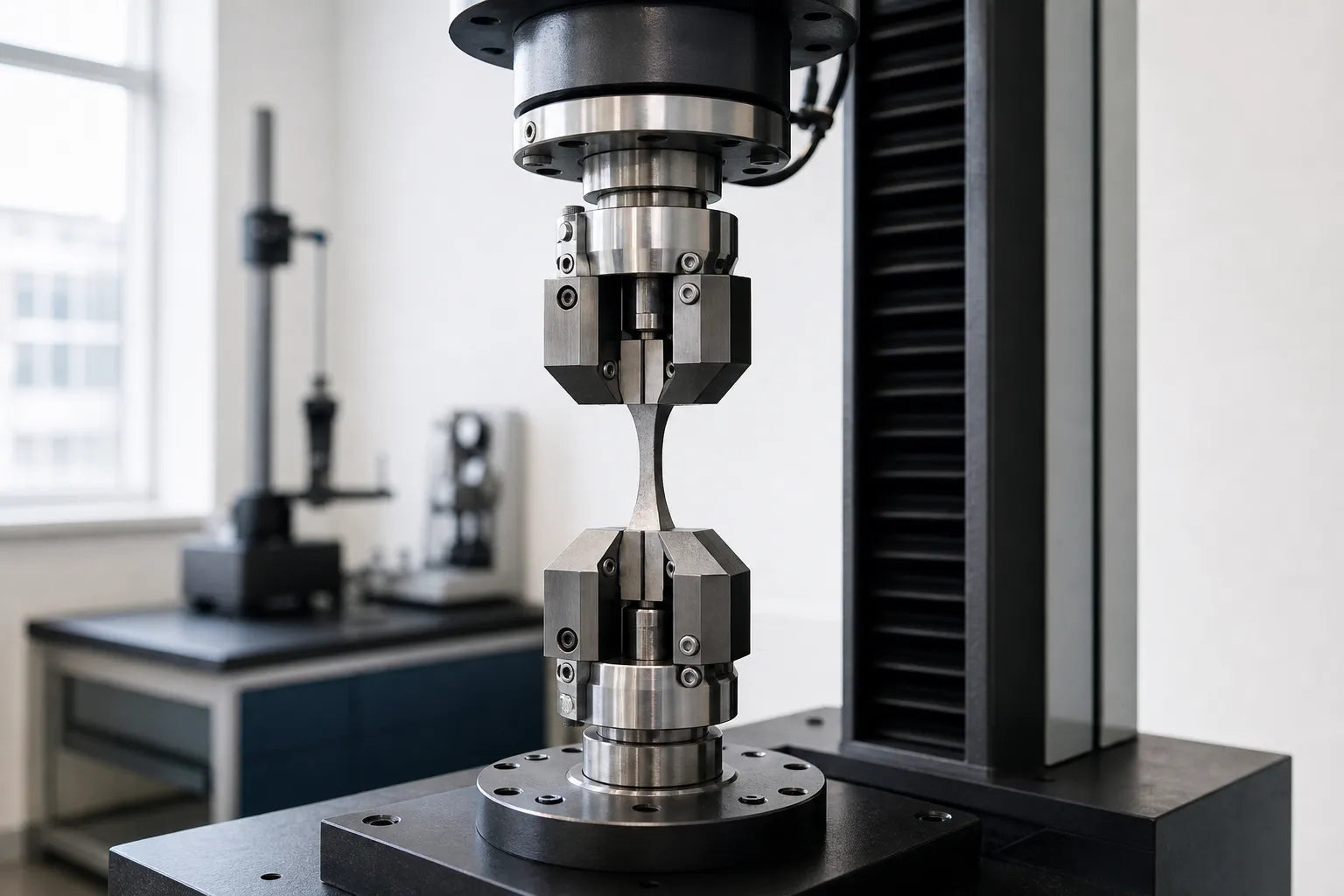

What fatigue testing means in practice

Fatigue testing is the process of applying repeated, cyclic loads to a specimen or component and measuring how it responds over time. The goal is to characterize a material's or part's resistance to progressive damage under conditions that simulate real service life — rotating shafts, vibrating brackets, pressurized vessels that cycle on and off, or any structure that experiences fluctuating stress.

The central output of most fatigue programs is the S-N curve, sometimes called the Wöhler curve. This is a plot of applied stress amplitude (S) against the number of cycles to failure (N). Running a series of specimens at different stress levels and recording when each one fails lets you map out this curve for a given material and geometry. At high stress levels, failure happens quickly. As stress drops, the number of cycles to failure increases — sometimes dramatically. For ferrous metals like steel, the curve typically flattens out at a stress level called the endurance limit, below which the material can theoretically survive an infinite number of cycles. Aluminum and many non-ferrous alloys do not exhibit a true endurance limit, which means fatigue life must always be defined at a specific number of cycles for those materials.

Axial fatigue testing — applying tension-compression cycles along a single axis — is the most common configuration, but it does not capture every real-world loading scenario. Many components in service experience twisting rather than pulling. Drive shafts, fasteners, springs, and surgical instruments all carry torsional loads, and a specimen that performs well under axial cycling may behave very differently when twisted repeatedly. That is where a Torsion Testing Machine becomes relevant: it applies controlled, cyclic angular displacement or torque to characterize how a material or component responds to repeated twisting, giving labs a more complete picture of endurance behavior across loading modes.

How to think about fatigue testing

Before a lab runs a single specimen, it helps to build a clear mental model of what fatigue testing is actually measuring and what variables control the outcome. The numbers that come out of a fatigue program are only as meaningful as the decisions made going into it.

The core problem to understand

The fundamental challenge in fatigue is that damage accumulates at a microscopic level long before anything is visible on the surface. Fatigue failure typically proceeds in three stages: crack initiation, crack propagation, and final fracture. Crack initiation usually begins at a stress concentration — a notch, a surface scratch, a grain boundary, a void in the material, or a geometric feature like a fillet radius or a hole. Once a small crack forms, each subsequent load cycle drives it a little further through the material. The crack grows slowly at first, then accelerates as the remaining cross-section shrinks and local stresses rise. Final fracture happens suddenly when the remaining material can no longer carry the load.

This three-stage model has direct implications for how labs design specimens and interpret results. Surface finish matters enormously because a rough surface provides more initiation sites. Residual stresses from machining or heat treatment can either accelerate or retard crack initiation depending on their sign. Specimen geometry must be carefully controlled — particularly the gauge section radius and surface condition — so that results reflect material behavior rather than manufacturing variability. Standard specimen designs from ASTM and ISO exist precisely to eliminate these sources of noise, and deviating from them without good reason makes data difficult to compare across labs or literature.

Stress ratio is another concept that shapes every fatigue dataset. The R value is the ratio of minimum stress to maximum stress in a cycle. A fully reversed cycle, where the specimen is pulled and then compressed by equal amounts, has an R value of -1. A zero-to-tension cycle, where stress oscillates between zero and a peak tensile value, has an R value of 0. Mean stress matters because tensile mean stress generally reduces fatigue life while compressive mean stress can extend it. When comparing fatigue data from different sources, confirming that the R values match is not optional — data generated at R = -1 and data generated at R = 0.1 describe different loading conditions and should not be treated as equivalent.

The practical decision criteria

Deciding whether to build in-house fatigue testing capability comes down to a few honest questions about volume, variability, and the cost of not knowing.

If a lab is developing new materials or alloys, fatigue data is not a one-time need — it is an ongoing requirement that grows with every formulation change, heat treatment variation, or processing parameter shift. Sending specimens to an external lab for each iteration adds lead time and cost that can slow development cycles significantly. In that context, owning a Fatigue Testing Machine in-house often pays for itself through faster iteration and tighter control over test conditions.

For quality control applications, the calculus is slightly different. Fatigue testing is inherently destructive and time-consuming — a single specimen run to 10 million cycles at a typical test frequency takes real calendar time. Most production QC programs use fatigue data to establish design allowables and then rely on non-destructive inspection or simpler mechanical tests for routine lot acceptance. Fatigue testing in QC is more commonly used for periodic audits, process change validation, or failure investigation rather than 100% inspection.

The loading mode question is equally important. If the components a lab supports experience primarily bending or axial loads, a standard axial fatigue machine covers most needs. If the application involves shafts, fasteners, or any component where torsion is a primary or secondary load, adding torsional fatigue capability closes a real gap. Torsion testing and axial fatigue testing are complementary, not redundant — they answer different questions about the same material.

Frequency is another practical consideration. Servo-hydraulic machines can run at relatively high frequencies but require hydraulic infrastructure. Resonance-based machines operate at their natural frequency, which can be very high, making them efficient for high-cycle testing. Electrodynamic systems offer good control at moderate frequencies. The right choice depends on the cycle counts the lab needs to reach, the specimen stiffness, and the load levels required.

Common mistakes to avoid

The most common error in fatigue testing programs is treating the S-N curve as a material constant rather than a conditional result. Fatigue data is sensitive to specimen geometry, surface finish, environment, temperature, loading waveform, and test frequency. A fatigue life number pulled from a textbook or a material supplier's datasheet was generated under specific conditions that may not match the lab's specimens or the component's service environment. Using that number without understanding its conditions can lead to unconservative designs.

A second frequent mistake is running too few specimens. Fatigue data is inherently scattered — two nominally identical specimens tested at the same stress level can fail at cycle counts that differ by an order of magnitude. Statistical approaches, such as the staircase method for endurance limit determination or probit analysis for S-N curve fitting, exist to handle this scatter, but they require adequate sample sizes. Running three specimens per stress level and drawing a smooth curve through the points produces a curve that looks precise but carries very wide confidence intervals.

Neglecting the effect of the test environment is another pitfall. Fatigue life in air, in a corrosive fluid, or at elevated temperature can differ dramatically. Corrosion fatigue — the interaction between cyclic stress and a corrosive environment — can reduce endurance limits by a factor of two or more compared to air testing. If the component will operate in a specific environment, the test should reflect that environment, or the data should be used with appropriate knockdown factors.

Finally, labs sometimes underestimate the importance of alignment. Misalignment in the load train introduces bending moments that add to the intended axial stress, effectively raising the stress amplitude at the specimen surface without the machine's load cell registering the difference. Regular alignment checks and the use of flexible couplings or alignment fixtures are standard practice for a reason.

How to apply this to fatigue testing

Translating these principles into a functioning lab program requires a few deliberate choices made in the right order.

Start with the loading scenario. Identify the dominant load mode in service — axial, bending, torsional, or some combination — and select a test configuration that replicates it. For components that carry torque, a torsional fatigue setup is not an approximation of the real condition; it is the direct measurement. Labs that need to cover both axial and torsional loading can explore equipment that handles both modes, or they can run separate programs on dedicated machines. The Torsion Testing Machine category covers a range of configurations suited to different specimen types and torque ranges, which is worth reviewing when scoping a new program.

Next, define the test parameters before touching a specimen. Establish the stress ratio, the frequency, the waveform shape, the failure criterion, and the maximum cycle count. Document these decisions and the rationale behind them. This step sounds obvious, but labs under schedule pressure often start testing before the protocol is fully locked, which creates data that cannot be compared to future runs or to external datasets.

Specimen preparation deserves the same rigor as the test itself. Machine specimens to the specified geometry, verify surface finish with a profilometer, and inspect for visible defects before loading. Keep a record of the machining parameters and any post-machining treatments. If specimens are being cut from a larger piece of material, note the orientation relative to the rolling or forging direction, because fatigue properties are often anisotropic.

During testing, monitor load and displacement continuously. Stiffness changes during a test can indicate crack growth before final fracture, and that information is useful for understanding the propagation phase. Some labs use compliance monitoring or acoustic emission to track crack growth in real time, which adds resolution to the dataset without requiring additional specimens.

After testing, analyze the fracture surfaces. Fatigue fractures have characteristic features — beach marks, ratchet marks, and a distinct transition between the fatigue zone and the final overload zone — that confirm the failure mode and often reveal the initiation site. This fractographic analysis is not optional; it is the check that confirms the test produced a genuine fatigue failure rather than an artifact of the test setup.

Recommended next steps

If your lab is evaluating whether to add endurance testing capability, the most productive starting point is a clear inventory of the loading modes your components actually experience in service. That single step determines whether axial fatigue testing covers your needs, whether torsion testing is essential, or whether a combined program makes sense.

From there, review the relevant ASTM or ISO standards for your material class and application. The standards define specimen geometry, surface finish requirements, test frequencies, and data reporting formats — following them from the start saves significant rework later and makes your data comparable to published literature and external lab results.

Finally, consider the full program cost honestly. A fatigue testing machine is a capital investment, but the cost of generating unreliable data — or of not having data when a design decision or failure investigation requires it — is often larger. Labs that build a disciplined fatigue testing program, with proper specimen preparation, documented protocols, and adequate sample sizes, generate data that supports confident engineering decisions rather than data that raises more questions than it answers.
