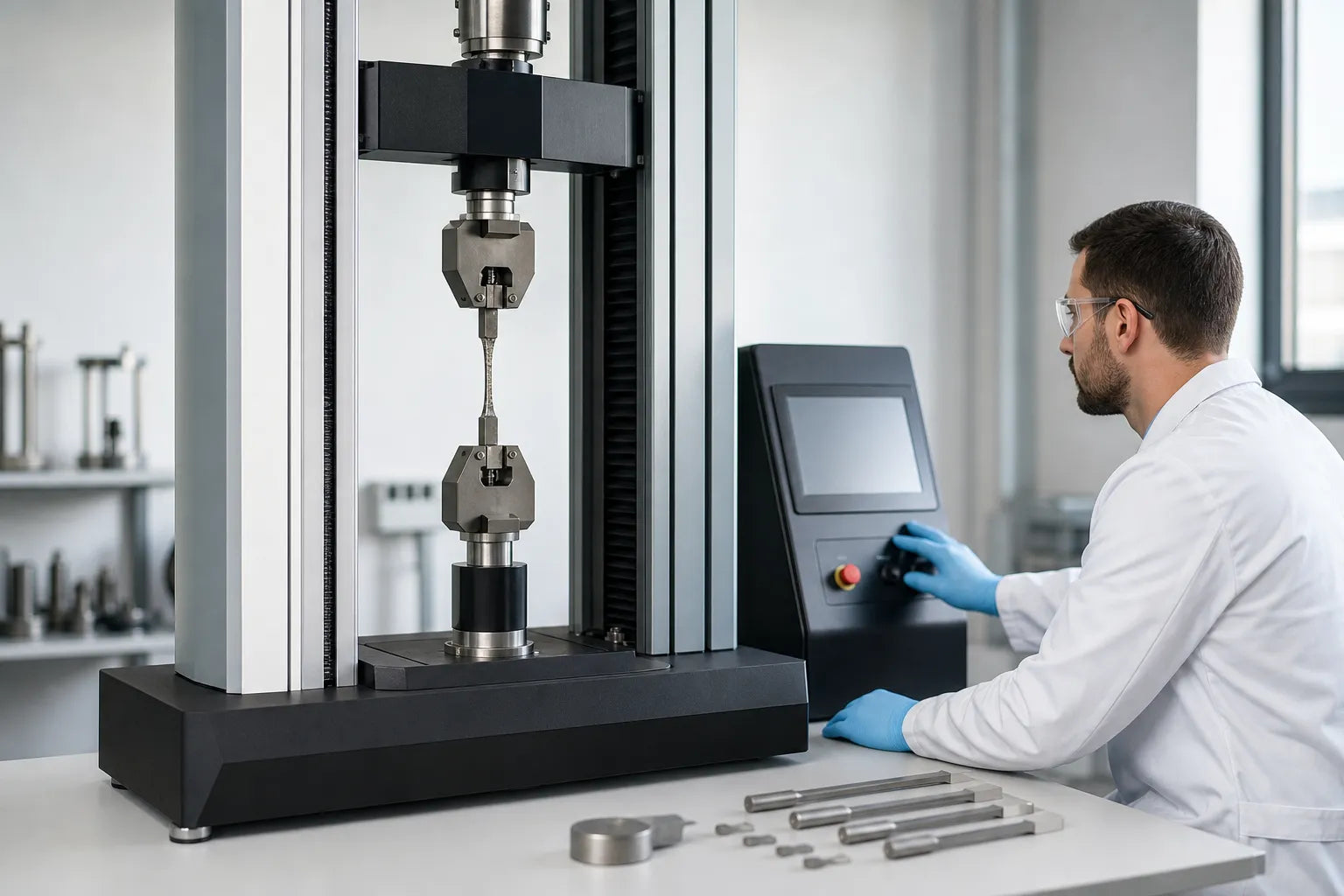

Metal labs face a layered decision when specifying mechanical testing: which measurement method actually matches the material, the applicable standard, and the daily workflow? A universal tensile strength testing machine sits at the center of most structural and quality-control programs, but the hardness methods that often accompany tensile testing — Rockwell, Brinell, and Vickers — each carry distinct assumptions about specimen geometry, surface condition, and acceptable indentation size. Choosing the wrong combination wastes time on surface preparation, produces results that fail inter-laboratory comparison, or simply violates the reporting requirements of the governing standard. This article maps each method to the situations where it performs well and flags the conditions where it falls short.
Quick answer: how universal tensile strength testing machine options compare
The core question for any metal lab is whether a single test method can satisfy all its reporting obligations, or whether a combination of methods is necessary. A digital universal testing machine handles tensile, compression, and flexural loading in one frame, making it the anchor instrument for mechanical characterization. Hardness testing — using Rockwell hardness, Brinell hardness, or Vickers hardness scales — then supplements tensile data with rapid, non-destructive (or minimally destructive) surface measurements.
Rockwell hardness is the fastest method and requires the least surface preparation, which makes it the default choice for production-line inspection of steels and hardened components. Brinell hardness uses a larger indenter and a larger load, so it averages over a wider area and is better suited to coarse-grained or heterogeneous materials such as cast iron and forgings. Vickers hardness uses a geometrically consistent pyramid indenter across a wide load range, which makes it the preferred method when thin sections, case-hardened layers, or weld heat-affected zones need to be characterized at the microscale.
The decision rule is not about which method is superior in the abstract. It is about which method the governing standard requires, which specimen geometry permits, and which surface condition the lab can realistically achieve before the test.
Universal tensile strength testing machine compared at a glance
| Criterion | Tensile testing (UTM) | Rockwell hardness | Brinell hardness | Vickers hardness |
|---|---|---|---|---|
| Best fit | Structural properties, elongation, yield | Hardened steels, rapid QC | Cast iron, forgings, non-ferrous | Thin sections, case depth, welds |
| Ideal use case | Full stress-strain characterization | High-volume production inspection | Coarse-grained or heterogeneous materials | Microhardness mapping, small features |
| Main strength | Complete mechanical property profile | Speed and minimal prep | Large indentation averages local variation | Scale-independent geometry, wide load range |
| Key tradeoff | Destructive; specimen must be machined | Sensitive to surface finish and specimen thickness | Large indentation may not suit finished parts | Requires optical measurement; slower than Rockwell |
| Standard examples | ISO 6892-1, ASTM E8 | ISO 6508, ASTM E18 | ISO 6506, ASTM E10 | ISO 6507, ASTM E92 |
For labs building out a testing program, the universal tensile testing machine core list provides a structured reference for matching frame capacity and configuration to material families.
Compare universal tensile strength testing machine by the criteria that matter
Selecting a testing approach requires evaluating more than the method name. Material type, section thickness, surface condition, and the reporting standard each constrain the choice independently. A method that works for one criterion may fail on another, so the evaluation needs to run through all four before a decision is made.
Fit and use case
A universal tensile strength testing machine is the only instrument that directly measures tensile strength, yield strength, and elongation from a single test. These properties are required by structural design codes, material certification standards, and incoming inspection protocols for load-bearing components. No hardness method substitutes for tensile data when the standard explicitly requires a stress-strain curve or a reported elongation value.
Hardness testing rockwell is the most practical fit for high-throughput inspection of finished or semi-finished steel parts. The test cycle is short, the indentation is small enough that it does not damage most production surfaces, and the scale system — HRC for hard steels, HRB for softer steels and non-ferrous alloys — is widely understood across supply chains. Rockwell hardness is a poor fit for thin sheet, soft coatings, or materials with a coarse microstructure, because the indenter can punch through or produce a result that reflects substrate rather than surface properties.
Brinell hardness is the right fit when the material is heterogeneous at the scale of a Rockwell or Vickers indentation. Cast iron, large forgings, and some aluminum alloys have microstructural features — graphite flakes, large grains, or second-phase particles — that make a small indentation unrepresentative. The larger Brinell indentation averages over more of the microstructure and produces a more stable result. The tradeoff is that the indentation is visible and may be unacceptable on finished surfaces.
Vickers hardness covers the widest range of applications when load is varied. At macro loads it overlaps with Brinell and Rockwell in terms of the material volume sampled. At micro loads it becomes the standard tool for case depth measurement, weld HAZ profiling, and thin-film or coating characterization. If the lab needs to traverse a hardness gradient across a cross-section — for example, from a carburized surface into the core — Vickers is the only practical method.
Value and tradeoffs
A universal tensile strength testing machine represents a significant capital investment, but it is the only instrument that produces the full mechanical property profile required by most structural standards. For labs that certify material to ASTM E8 or ISO 6892-1, there is no lower-cost substitute; the test is mandatory. The value calculation is therefore not about whether to buy a UTM, but about which frame capacity, grip configuration, and extensometer type match the material range the lab handles.
Hardness testing by Rockwell hardness offers the lowest cost per test in a production environment. The instrument is relatively compact, the consumable cost is low (indenters have long service lives), and the operator skill requirement is modest once the machine is calibrated. The tradeoff is that Rockwell hardness results are not always directly comparable across laboratories if the surface preparation protocol or the machine calibration differs, and the method is sensitive to specimen thickness and support conditions.
Brinell hardness testing involves a larger, heavier instrument and requires optical measurement of the indentation diameter, which adds time and operator skill. The value case is strongest when the material genuinely requires a large indentation for a representative result, and when the surface can accept the mark. For labs that test castings or forgings in large volumes, the method is well established and the standards are mature.
Vickers hardness testing at micro loads requires a well-controlled environment — vibration, temperature stability, and a polished specimen surface — and the optical measurement step is more demanding than reading a Rockwell dial. The value case is strongest when no other method can reach the feature of interest: a thin case, a narrow weld bead, or a small component cross-section. For macro Vickers work on homogeneous materials, the method competes directly with Brinell and the choice often comes down to which standard the customer specifies.
Limitations and deal-breakers
The primary limitation of tensile testing on a universal tensile strength testing machine is that it is destructive. The specimen must be machined to a defined geometry, which means the part is consumed. For incoming inspection of small batches or expensive components, this is a real constraint. Some labs use hardness testing as a screening method and reserve tensile testing for periodic qualification or when a hardness result falls outside the expected range.
Rockwell hardness has two common deal-breakers. First, the method requires a minimum specimen thickness relative to the indentation depth; thin sheet or foil cannot be tested on most Rockwell scales without the indenter bottoming out or the anvil influencing the result. Second, the surface must be flat, clean, and free of scale or decarburization. A curved surface requires a correction factor, and a rough or oxidized surface will produce scatter that makes the result unreliable.
Brinell hardness is not suitable for thin sections, small parts, or finished surfaces where the indentation mark is unacceptable. The method also has an upper hardness limit; above a certain hardness level the tungsten carbide ball deforms and the result becomes unreliable. For very hard steels or tool steels, Rockwell HRC or Vickers is the appropriate alternative.
Vickers hardness at micro loads is sensitive to every aspect of specimen preparation. If the surface is not polished to the required finish, the indentation diagonals cannot be measured accurately and the result is invalid. Vibration during the dwell period distorts the indentation. These requirements make micro-Vickers testing slower and more labor-intensive than any other hardness method, and it is not a practical choice for high-volume production inspection.
Decision rule for universal tensile strength testing machine
The decision framework for a metal lab can be structured around four questions asked in sequence.
First, does the governing standard require tensile data? If the answer is yes, a universal tensile strength testing machine is mandatory regardless of what hardness testing is also performed. Understanding the universal testing machine principles that underpin load frame design and extensometer selection helps labs specify the right configuration from the start.
Second, what is the material and its microstructural scale? Homogeneous, fine-grained wrought steels are compatible with all three hardness methods. Coarse-grained or heterogeneous materials — castings, forgings, some non-ferrous alloys — favor Brinell hardness because the larger indentation produces a more representative average. Thin sections, coatings, and case-hardened layers require Vickers hardness at an appropriate micro load.
Third, what is the surface condition and geometry? If the part is finished and the surface cannot accept a visible indentation, Rockwell hardness on an appropriate scale is the least damaging option. If the surface is rough or curved, additional preparation is required regardless of method, and the cost of that preparation should factor into the method selection.
Fourth, what does the customer or certification body specify? Many purchase orders and material specifications call out a specific hardness method and scale. When the standard is explicit, the lab has no discretion; the method is fixed. When the standard is silent or allows alternatives, the lab can optimize for throughput, surface condition, and available equipment.
Applying these four questions in order eliminates most ambiguity. A lab testing hardened steel shafts to a customer specification that calls out Rockwell HRC uses hardness testing Rockwell and does not need to evaluate alternatives. A lab certifying structural plate to a standard requiring tensile properties uses a universal tensile strength testing machine and may add Brinell hardness as a supplementary check. A lab characterizing weld quality in thin-wall tubing uses Vickers hardness to map the HAZ and may use a UTM for weld coupon tensile tests.
FAQ about universal tensile strength testing machine
What is a universal tensile testing machine?
A universal tensile testing machine is a load frame that applies controlled tension, compression, or flexure to a specimen and measures the resulting force and displacement to determine mechanical properties such as tensile strength and elongation.
What should readers know first about universal tensile strength testing machine?
The method a universal tensile strength testing machine uses is determined by the governing standard, not by preference; Rockwell hardness, Brinell hardness, and Vickers hardness each serve different material types and section geometries alongside tensile data.
How do you choose the right universal tensile strength testing machine approach?
Match the method to the material microstructure, section thickness, surface condition, and the specific standard being met — Rockwell hardness for rapid QC on steels, Brinell hardness for coarse materials, Vickers hardness for thin sections or gradients.
What mistakes should you avoid with universal tensile strength testing machine?
Applying hardness testing Rockwell to specimens below the minimum thickness for the selected scale, or using Brinell hardness on finished surfaces where the indentation mark is unacceptable, are the most common method-selection errors in metal labs.
Is universal tensile strength testing machine worth it for daily use?
For labs that certify material to structural standards, a universal tensile strength testing machine is not optional — tensile data cannot be replaced by a hardness tester alone when the standard requires a stress-strain curve or elongation value.
What should you compare before deciding on universal tensile strength testing machine?
Compare the required standard, the material family and microstructural scale, the specimen geometry and surface condition, and whether the lab needs tensile data, hardness data, or both before selecting between Rockwell hardness, Brinell hardness, Vickers hardness, or a combined program.
Recommended next steps
Labs that are mapping out a testing program should start with the governing standard and work backward to instrument selection. If the standard requires tensile properties, the universal tensile strength testing machine is the anchor instrument and hardness testing is supplementary. If the standard specifies a hardness method, confirm that the specimen geometry and surface condition are compatible with that method before committing to a workflow.
For labs evaluating Rockwell hardness, Brinell hardness, and Vickers hardness alongside tensile testing, the practical next step is to audit the material range against the method limitations described above. Thin sections and case-hardened parts point toward Vickers hardness. Castings and forgings point toward Brinell hardness. High-volume steel inspection points toward hardness testing Rockwell. Mixed programs — which are common in job shops and contract labs — often require at least two hardness methods plus a UTM, and the instrument selection should reflect that from the start rather than being retrofitted later.
Reviewing the specifications of available frame configurations, grip types, and extensometer options against the actual specimen dimensions and load ranges the lab handles is the most direct way to avoid over- or under-specifying the equipment. A hardness tester that cannot reach the required scale, or a UTM with insufficient stroke for the specimen gauge length, creates compliance gaps that are expensive to correct after purchase.
