For labs working with heat-treated steel, choosing the right hardness tester Rockwell C setup is not just a matter of picking any bench-top unit. Rockwell C is a scale built for hardened and tempered steels, and it behaves very differently from scales designed for softer or thinner materials. Getting the scale, load, indenter, and specimen preparation right determines whether your readings are trustworthy or misleading. This guide walks through when a rockwell hardness tester on the C scale is the correct tool, when it isn't, and what to check before you commit to a machine or a testing procedure.
What hardness tester rockwell c means in practice

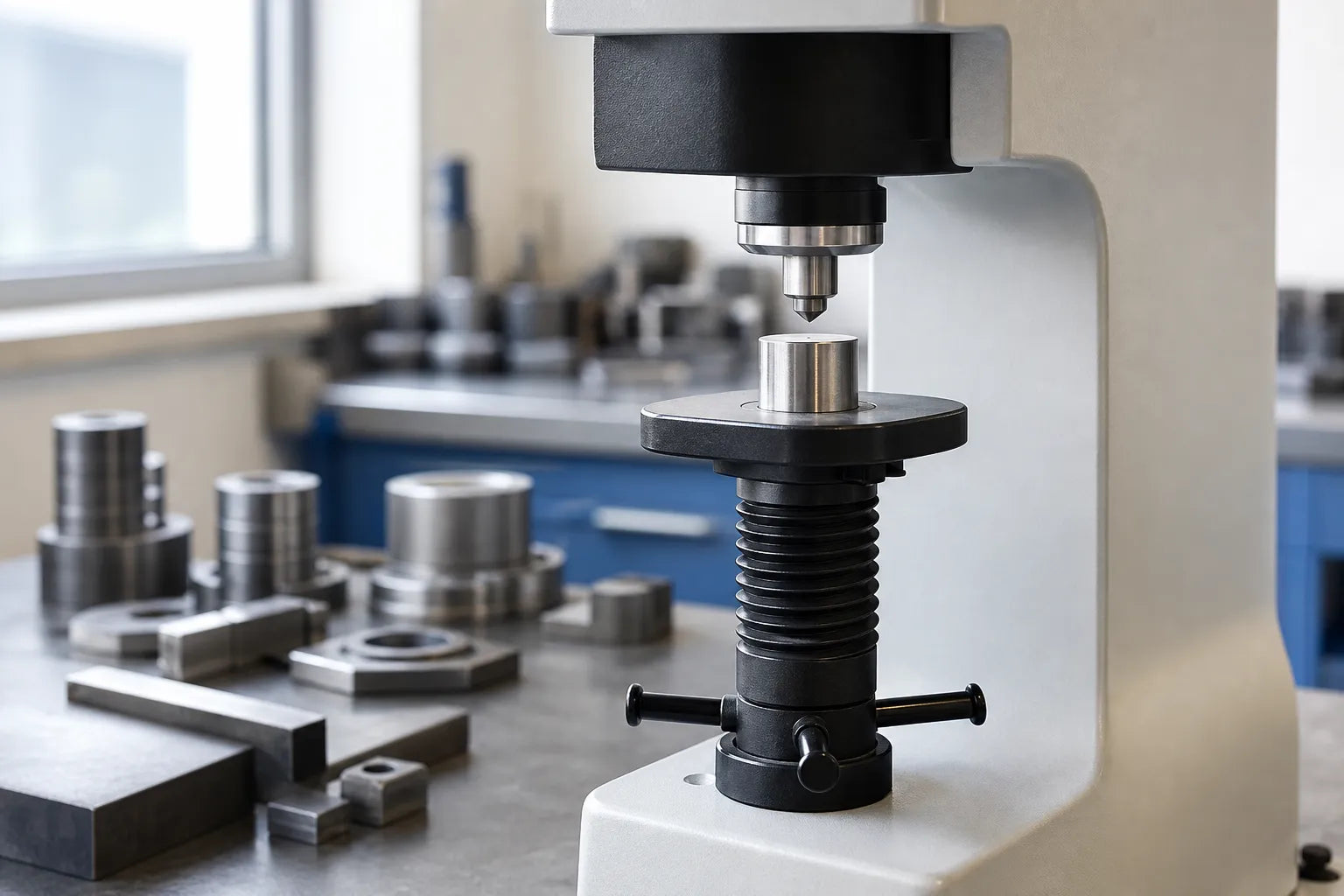

A hardness tester rockwell c setup uses a diamond cone indenter (often called a Brale indenter) under a major load of 150 kgf, applied after a minor load, to measure resistance to penetration in hard materials. The result is reported in HRC units, and it is the standard scale for tool steels, bearing races, gears, dies, and other components that have gone through hardening and tempering.
This matters in practice because a rockwell hardness tester is only as reliable as the scale-to-material match. Using the C scale on the wrong material, or using the wrong indenter geometry, produces numbers that look precise but do not reflect the actual surface condition. A hardness tester rockwell reading on the C scale is meaningful only when the specimen is hard enough, thick enough, and flat enough to support the diamond indenter's load without distorting the substrate.
Before running production tests, most labs verify their machine's accuracy using a certified Rockwell C test block. This step confirms the tester itself is delivering correct rockwell hardness values before any customer part is measured, and it should be part of the routine calibration check rather than a one-time setup task.
How to think about hardness tester rockwell c
Choosing and operating a hardness tester rockwell c device is a matter of matching the scale to the material and the machine to the workload. Heat-treated steel testing has specific requirements that distinguish it from softer-metal or thin-sheet testing, and understanding those requirements up front avoids wasted test cycles and disputed results.
The core problem to understand
The core issue with Rockwell C testing is that the scale was designed for a specific hardness range, roughly 20 to 70 HRC, and for materials with enough mass and rigidity to resist the diamond indenter without excessive deformation. Heat-treated steel usually falls squarely in this range, which is why HRC is the default scale for hardened tool steel, case-hardened gears, and similar components.
The trouble starts when someone tries to stretch the C scale outside its intended use, for example on thin case-hardened layers, small pins, or soft annealed stock. In those situations the indenter can punch through the hardened layer into softer base material, or the specimen can flex under load, and the resulting number will not represent the true surface hardness. A properly specified Rockwell hardness testing machine gives you the load and indenter options needed to switch scales when a part falls outside the C scale's working range.
The practical decision criteria
When deciding whether Rockwell C is the right scale for a given batch of heat-treated steel, work through a short set of criteria rather than defaulting to habit.
- Material hardness range: confirm the expected hardness falls within roughly 20-70 HRC before testing; readings outside this band are less reliable even if the machine accepts them.
- Specimen thickness: as a general rule, the specimen should be thick enough that the indentation does not influence or "read through" to the opposite face; thin or case-hardened parts often need a superficial scale instead.
- Surface preparation: scale, decarburization, or rough machining marks under the indenter will distort results regardless of how well the rockwell hardness tester itself is calibrated.
- Support and fixturing: irregular shapes, round bars, and small parts need proper anvils or V-blocks so the part cannot rock or shift during the load cycle.
- Repeatability needs: production quality control benches that run high volumes benefit from digital result capture, since manual dial reading introduces operator variation over long shifts.
A hardness tester rockwell c chosen with these criteria in mind will produce data that quality control and heat-treat engineers can actually rely on for pass/fail decisions.
Common mistakes to avoid
The most common mistake is scale misuse: applying the C scale to thin, soft, or small parts where the substrate cannot support the 150 kgf major load. This typically shows up as inconsistent readings on repeat tests of the same part, or unexpectedly low hardness values on material that was supposedly hardened correctly.
A second frequent error is inadequate specimen support. Round or irregular parts placed on a flat anvil without a V-block or dedicated fixture can shift slightly during loading, which skews the indentation depth and therefore the rockwell hardness value.
A third mistake is skipping routine verification. Even a well-built rockwell hardness tester will drift over time, so labs that do not check their machine against a certified test block periodically risk making decisions on data that has quietly gone out of tolerance. For a deeper look at how these issues show up in daily use and how to correct them, see this guide to Rockwell hardness testing errors.
How to apply this to hardness tester rockwell c
Turning this into a working procedure starts with confirming scale fit for the parts you actually test. If your production runs mostly hardened tool steel, forged components, or heat-treated shafts in the 20-70 HRC range, the C scale is the right default and a standard hardness tester rockwell c bench unit will cover most needs.
If your parts include thin case-hardened layers, small components, or coatings, plan for a machine that also supports superficial Rockwell scales, so you are not forced to misuse the C scale on unsuitable specimens. Confirm the machine's anvil and fixture options match your part geometry, particularly for round stock or irregular shapes that need extra support during the load cycle.
Build in a routine verification step using a certified reference block before each shift or batch, and log the results so drift is caught early rather than after a customer dispute. If your operation runs high volumes or needs traceable records for audits, prioritize a rockwell hardness tester with digital result capture, since this reduces transcription errors and makes it easier to export data for quality documentation. Finally, if you notice recurring inconsistencies that are not explained by specimen prep, review the common failure patterns in Rockwell hardness testing errors before assuming the machine itself is at fault.
FAQ about hardness tester rockwell c
What is Rockwell C hardness?
Rockwell C hardness is a measurement made with a diamond cone indenter under a 150 kgf major load, used mainly for hardened and tempered steels within roughly the 20-70 HRC range.
What is a Rockwell hardness tester?
A Rockwell hardness tester is a bench or floor machine that applies a minor then major load through an indenter and calculates hardness from the resulting indentation depth, across several possible scales.
What is 60 HRC hardness?
60 HRC describes a hardness reading of 60 on the Rockwell C scale, a level typical of hardened tool steels and components after proper heat treatment.
Is Rockwell C the same as HRC?
Yes, HRC is simply the standard abbreviation for a hardness value obtained on the Rockwell C scale using the diamond indenter and 150 kgf major load.
What should readers know first about hardness tester rockwell c?
Confirm the material and part geometry actually suit the C scale's hardness range and thickness requirements before testing, since scale misuse is the most common source of unreliable readings.
How do you choose the right hardness tester rockwell c approach?
Match the scale to the material's expected hardness range, check specimen thickness and support needs, and prioritize machines that also offer superficial scales for thin or small parts.
What mistakes should you avoid with hardness tester rockwell c?
Avoid applying the C scale to thin or soft specimens, skipping proper fixturing for irregular shapes, and neglecting routine verification against a certified reference block.
Is hardness tester rockwell c worth it for daily use?
For labs regularly testing hardened steel in the standard HRC range, a dedicated rockwell hardness tester is a practical, standard tool for daily quality control work.
Recommended next steps
If your lab regularly tests heat-treated steel within the standard HRC range, a properly specified hardness tester rockwell c setup, supported by routine verification and correct fixturing, will give you dependable, defensible results. Start by confirming your part range against the scale's suited hardness and thickness limits, then check that your rockwell hardness tester includes the fixtures and, if needed, the superficial scales your parts require. Pair this with regular checks using a certified reference block and a habit of reviewing unusual readings against known error patterns, so your rockwell hardness data stays consistent as testing volume grows.
