How steel tensile strength is measured and interpreted

1. Start with the outcome you actually need

Define whether the result is intended for material acceptance, process control, design review, or failure investigation. Steel ultimate tensile strength is only one result; yield strength, elongation, reduction of area, and fracture location may also determine whether the material is suitable.

For routine laboratory work, specify the grade, applicable standard, specimen geometry, expected capacity, and reporting units before selecting a electronic tensile tester. This prevents a machine from being chosen only by its maximum load.

2. Set up the simplest workable system

Begin with a correctly prepared tensile specimen taken from the relevant steel product. Record its grade, heat or batch identification, thickness or diameter, sampling location, and direction relative to rolling or forming.

Specimen direction can affect the measured tensile strength of steel. A longitudinal specimen and a transverse specimen may not produce identical results. Review the wider tensile strength fundamentals before comparing results from different products or laboratories.

3. Follow the process without overcomplicating it

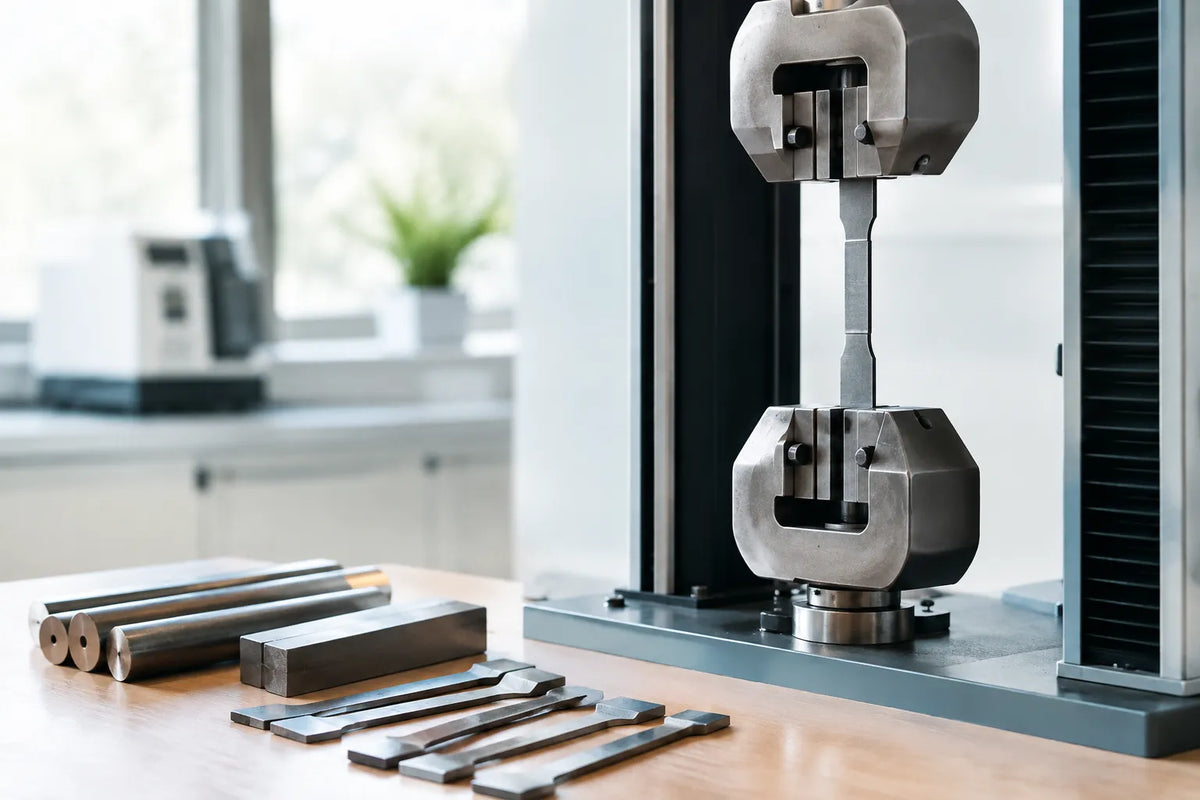

Mount the specimen centrally in suitable grips, apply the specified test speed or strain rate, and record load and extension continuously. The machine converts load into tensile stress using the original cross-sectional area.

The typical sequence is:

• Elastic deformation
• Yielding or proof-strength measurement
• Plastic deformation and strain hardening
• Maximum load
• Necking and fracture

The highest engineering stress reached is the ultimate tensile strength. For practical guidance on execution and reporting, see tensile testing methods.

4. Check what is working and what is not

Interpret the results as a group rather than accepting one number in isolation. Yield strength indicates when permanent deformation begins, while ultimate tensile strength is the maximum engineering stress before the load falls during necking.

Elongation shows ductility, and fracture location helps assess specimen validity. A result may require review if the specimen breaks at a grip, dimensions were measured incorrectly, alignment was poor, or the machine settings did not match the approved method.

5. Adjust when your situation changes

Do not compare steel tensile strength results without checking the conditions behind them. Grade, heat treatment, thickness, rolling direction, temperature, specimen shape, gauge length, and test speed can all influence the reported value.

If a replacement Universal Testing Machine is being commissioned, verify the delivered unit against the agreed specification. Check capacity, grips, software, calibration documentation, load-cell identification, installation records, and operator training before accepting production results.

6. One more thing that makes a difference

Separate engineering stress from true stress when reviewing advanced material behaviour. Engineering stress uses the original area, so the reported ultimate tensile strength occurs at the maximum engineering load. After necking begins, the actual local area continues to change.

For routine conformity reports, use the definitions and calculations required by the applicable standard. Do not combine values produced under different definitions and then treat them as directly comparable.

7. Another angle worth knowing

Use a worked example to check the calculation. If a specimen carries a maximum load of 60,000 N and its original cross-sectional area is 300 mm², the engineering ultimate tensile strength is:

`60,000 N ÷ 300 mm² = 200 N/mm²`

Because 1 N/mm² equals 1 MPa, the result is 200 MPa. The calculation is simple, but the area, load measurement, specimen dimensions, and test record must be correct.
