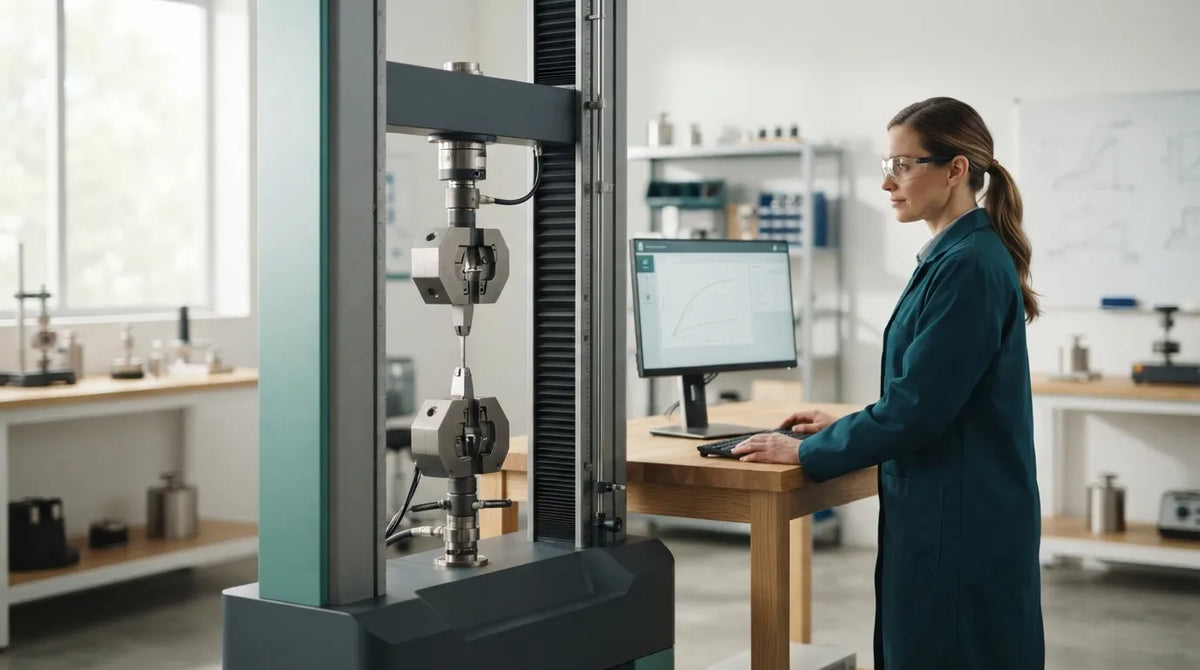

How a universal testing machine load frame affects test quality

Written by

Raghav Menon

Technical Content Editor

1 Sep 202612 min read

A universal testing machine is only as reliable as the mechanical system that carries, measures, and controls the test force. The load frame provides the foundation for alignment and stiffness, while the crosshead, grips, load cell, extensometer, and controller determine how accurately the machine applies and records a test.

For laboratory managers and quality-control teams, comparing quotations by capacity alone can be misleading. Two universal testing machines may have similar headline specifications but produce different test quality because of differences in frame construction, alignment, measurement, fixtures, software, and service support. This guide explains what to examine before selecting a machine for tensile, compression, bending, or related material tests.

What universal testing machine means in practice

A universal testing machine, often called a UTM, applies a controlled force to a specimen and measures its response. Depending on the test arrangement, the machine can pull, compress, bend, or otherwise load materials and components.

A universal testing machine for tensile test applications usually holds a prepared specimen between upper and lower grips. The crosshead moves at a defined rate, the load cell measures force, and an extensometer may measure strain or extension directly on the gauge length. The controller records the relationship between force and displacement or strain until the test reaches its defined endpoint.

Common applications include:

• Tensile testing of metals, plastics, wires, composites, and other materials
• Compression testing of specimens, components, and assemblies
• Bend and flexural testing
• Proof-load and verification tests
• Yield, ultimate strength, elongation, and deformation measurements
• Quality control of incoming materials and manufactured parts
• Research and development in engineering laboratories

The word “universal” does not mean that one machine automatically performs every possible test. Its flexibility depends on the frame, load range, grips, fixtures, extensometer, software, and applicable test method. A machine configured for metal tensile testing may require different grips, accessories, or measurement arrangements for plastics, rubber, wire, concrete-related work, or composite materials.

This is why testing machines should be assessed as complete test systems rather than as a load capacity displayed on a quotation.

The main parts of a universal testing machine

A typical UTM includes six core elements.

1. Load frame

   The frame supports the moving and fixed components and resists the force generated during testing. Its stiffness, structural stability, and alignment influence how consistently the specimen is loaded.

2. Crosshead

   The crosshead moves relative to the frame and transfers force through the grips or fixtures. Controlled movement is important because test results can be affected by speed, displacement accuracy, and mechanical backlash.

3. Grips and fixtures

   Grips hold tensile specimens, while compression platens, bending fixtures, wedge grips, threaded grips, or other attachments support different test arrangements. The correct fixture must suit the specimen geometry and material.

4. Load cell

   The load cell converts applied force into an electrical measurement. Its capacity and measurement range should match the expected test loads without unnecessarily sacrificing useful resolution at lower forces.

5. Extensometer

   An extensometer measures strain or extension over a defined gauge length. It can be essential when the test requires accurate elongation, yield, modulus, or other deformation-related measurements.

6. Controller and data system

   The controller manages crosshead movement, force application, test speed, data acquisition, and result reporting. The system should allow the laboratory to define appropriate test parameters and preserve traceable test records.

A weakness in any one of these areas can affect the final result. For example, a stiff frame cannot compensate for unsuitable grips, and a high-quality load cell cannot correct poor specimen alignment.

How to think about universal testing machine

The most useful way to evaluate universal testing machines is to follow the complete load path: from the actuator or drive system, through the crosshead and grips, into the specimen, and back through the measurement and control system.

A laboratory should ask not only whether the machine can apply the required force, but also whether it can apply that force in a controlled, repeatable, and standards-appropriate manner.

The core problem to understand

The central problem is that the machine does not measure material behavior in isolation. It measures the response of a test setup that includes the specimen, grips, frame, load cell, extensometer, fixtures, and software.

If the specimen is not centered, the load may include bending as well as tension or compression. If a grip slips, the recorded extension may not represent specimen elongation. If the frame or fixtures deflect significantly, crosshead displacement may not equal specimen deformation. If the load cell range is poorly selected, the measurement may not provide the resolution the laboratory expects.

Consider a tensile test on a metal specimen. The intended load should pass axially through the specimen gauge section. Misalignment can introduce secondary stresses, producing premature failure or an unusual fracture location. A suitable load frame and correctly adjusted grips help reduce this risk, but the laboratory must also follow proper specimen preparation and setup procedures.

ASTM E8 is widely associated with tension testing of metallic materials, while IS 1608 addresses tensile testing of metallic materials in the Indian standards context. The exact edition, material type, specimen dimensions, reporting requirements, and laboratory procedures must be confirmed before the machine is specified. A quotation that simply states “suitable for ASTM E8 and IS 1608” may not explain which grips, extensometer, control functions, or specimen arrangements are included.

The load frame matters because it establishes the mechanical reference for the test. A frame that is insufficiently rigid or difficult to align can affect:

• Force distribution through the specimen
• Repeatability between tests
• Stability during loading
• Deformation readings
• Fracture location and failure mode
• The laboratory’s ability to meet a specified method

This does not mean that the largest or heaviest frame is always the best choice. The correct design is the one that suits the force range, specimen dimensions, test method, environment, and expected workload.

The practical decision criteria

Before comparing universal testing machine quotations, document the laboratory’s actual testing program. The following criteria provide a practical starting point.

1. Test methods and materials

List every material and test type the laboratory expects to handle. A machine used for steel tensile specimens may need a different arrangement from one used for plastics, thin sheet, wire, elastomers, or composite laminates.

Identify whether the machine will perform:

• Tensile tests
• Compression tests
• Flexural or bend tests
• Proof or load-holding tests
• Extension or elongation measurements
• Tests on rigid specimens, thin specimens, or irregular components

The machine should be evaluated against the actual specimen range rather than a general description such as “multi-purpose.”

2. Required force range

Select a force capacity based on the strongest expected specimen and the applicable safety margin, while considering the lower end of the working range. A very large capacity may be unsuitable for delicate or low-force measurements if the measurement system is not configured accordingly.

Ask the supplier to clarify the load-cell arrangement and whether additional load cells are needed for materially different test ranges. Changing load cells may also involve calibration, setup, and software considerations.

3. Frame stiffness and alignment

The frame should provide a stable load path for the intended force range. Important questions include:

• How is the specimen centered?
• How are the grips or fixtures mounted?
• How is crosshead movement guided?
• What adjustment is available for specimen alignment?
• How are compression platens or bending fixtures positioned?
• How can the laboratory verify or maintain alignment?

The design should also provide enough working space for the longest specimen, grips, extensometer, and safety arrangements. A machine that has adequate force capacity but insufficient vertical or horizontal clearance may not suit the planned work.

4. Crosshead movement and control

Crosshead control affects the applied test rate and the repeatability of the procedure. Review how the machine sets and maintains speed, how movement is measured, and how the controller responds to force or displacement limits.

For standards-based work, the laboratory should confirm that the control modes and data acquisition functions support the selected method. Do not assume that every universal testing machine uses the same terminology or control logic.

5. Grips and fixtures

Grips are among the most important practical accessories. They must hold the specimen securely without causing premature damage or allowing slip.

For a universal testing machine for tensile test work, review:

• Grip type and specimen geometry
• Jaw face material and profile
• Manual or powered operation
• Suitable thickness and width range
• Ease of centering
• Access for extensometer attachment
• Replacement and maintenance requirements

A laboratory testing several material families may need more than one grip set. The cost and availability of these accessories should be considered before approval, even when they are not the largest part of the machine quotation.

6. Load cell and extensometer selection

The load cell should be appropriate for the test range and required measurement quality. The extensometer should match the material, expected strain, gauge length, and test method.

For example, a rigid metal specimen may require a different extensometer arrangement from a highly extensible polymer. Some tests may rely on crosshead displacement for a general deformation indication, while others require direct strain measurement over the gauge length.

Ask which measurements are included in the standard configuration and which are optional. Also confirm how calibration, verification, installation, and replacement are handled.

7. Data, reporting, and traceability

A laboratory may need force-extension curves, stress-strain curves, peak force, yield-related values, elongation, modulus, or pass/fail results. The controller and software should support the required calculations and reporting workflow.

Before choosing among testing machines, check whether the system can:

• Store specimen identification and test parameters
• Record raw or processed data as required by the laboratory
• Generate repeatable reports
• Export data in a usable format
• Protect or preserve test records
• Allow authorized changes to methods and settings

Software should be judged by the laboratory’s daily workflow, not only by the presence of a graphical interface.

8. Calibration and support

A UTM is a measurement system that requires continuing care. Ask about calibration support, preventive maintenance, spare parts, technical assistance, and operator training.

A supplier with experience in material testing equipment can help the laboratory consider the relationship between machine configuration, calibration, specimen preparation, and test method. Akuracy manufactures and exports material testing machines and provides calibration, repair, and support services for testing laboratories and industrial quality-control operations.

Common mistakes to avoid

Choosing only by maximum capacity

Maximum force is important, but it is not the only determinant of test quality. Frame stiffness, alignment, load measurement, grips, extensometry, and software may matter more to the specific test program.

Treating every tensile setup as equivalent

A tensile test on a standard metal specimen is not the same as a tensile test on thin sheet, wire, plastics, or composite material. Grip design, specimen dimensions, strain measurement, and failure behavior can differ substantially.

Ignoring specimen dimensions

Confirm the required specimen width, thickness, length, gauge length, and maximum extension. Also check whether the frame can accommodate the grips and extensometer without restricting movement.

Assuming crosshead displacement is specimen strain

Crosshead travel can include deformation from the frame, grips, fixtures, and other parts of the load path. When the method requires direct strain or elongation measurement, specify a suitable extensometer and measurement procedure.

Overlooking alignment and centering

Poor centering can introduce bending stresses. Operators should have a clear setup procedure, appropriate fixtures, and a practical way to position specimens consistently.

Comparing incomplete quotations

A low initial quotation may exclude grips, extensometers, fixtures, software functions, installation, calibration, training, or future support. Compare complete configurations and identify exclusions in writing.

Failing to plan maintenance

Grips wear, cables can be damaged, moving parts require inspection, and measurement systems need calibration or verification. A maintenance plan should be considered before the machine enters routine service.

How to apply this to universal testing machine

A practical selection process begins with the test method and works backward toward the machine configuration.

Step 1: Define the test matrix

Prepare a table for internal use that lists:

• Material or product
• Test type
• Expected force range
• Specimen dimensions
• Required speed or control mode
• Required deformation measurement
• Applicable standard or internal procedure
• Test frequency
• Environmental or safety conditions

This prevents the purchase decision from being driven by one frequently discussed test while overlooking less common but important applications.

Step 2: Separate essential and optional functions

Mark each requirement as essential, desirable, or future-use. For example, a particular grip may be essential for current tensile work, while a bending fixture may be a future expansion.

This approach helps procurement teams compare equivalent offers without paying for an undefined collection of accessories.

Step 3: Check the load path

Ask the supplier to explain how force travels through the machine during each major test. Review the frame, crosshead, grip mounting, fixtures, and specimen position together.

For compression testing, consider platen stability and specimen centering. For bending, consider fixture span and support arrangement. For tensile testing, consider axial alignment and grip behavior.

Step 4: Match measurement to the result

If the laboratory reports only maximum force, its measurement needs may differ from a laboratory reporting yield behavior, modulus, or elongation. Confirm which values must be measured directly and which may be calculated.

Where strain accuracy is important, specify the extensometer arrangement, gauge length, travel, attachment method, and removal or protection procedure near specimen failure.

Step 5: Review ASTM E8 and IS 1608 requirements carefully

Use the applicable edition and material-specific requirements as the reference for the purchase specification. Check specimen geometry, test speed, strain measurement, calculation rules, conditioning, and reporting.

The machine supplier can describe the equipment configuration, but the laboratory remains responsible for confirming that its complete procedure, operators, calibration system, and specimen preparation meet the selected standard.

Step 6: Compare the complete ownership requirement

In addition to the machine, consider:

• Installation and commissioning
• Operator training
• Calibration and verification
• Fixture replacement
• Software updates or support
• Service response
• Availability of consumable or wear parts
• Documentation and operating procedures

These factors influence the machine’s usefulness during routine laboratory work.

Step 7: Create an acceptance checklist

Before delivery or commissioning, define how the laboratory will verify the equipment. The checklist may cover identification, supplied accessories, movement, force indication, software operation, safety functions, and documentation.

A clear acceptance process helps ensure that the delivered universal testing machine matches the approved quotation and test requirements.

Recommended next steps

Before requesting or approving a universal testing machine, prepare a concise technical requirement covering the intended materials, test types, specimen dimensions, force range, applicable standards, test frequency, and required results.

For tensile work involving ASTM E8 or IS 1608, pay particular attention to specimen alignment, grip suitability, extensometer requirements, crosshead control, and reporting functions. These details often determine whether the machine performs reliably in routine testing.

A structured requirement also makes it easier to compare testing machines fairly and identify which items are included, optional, or excluded. It gives the laboratory, procurement team, and supplier a common technical reference before installation and commissioning.
