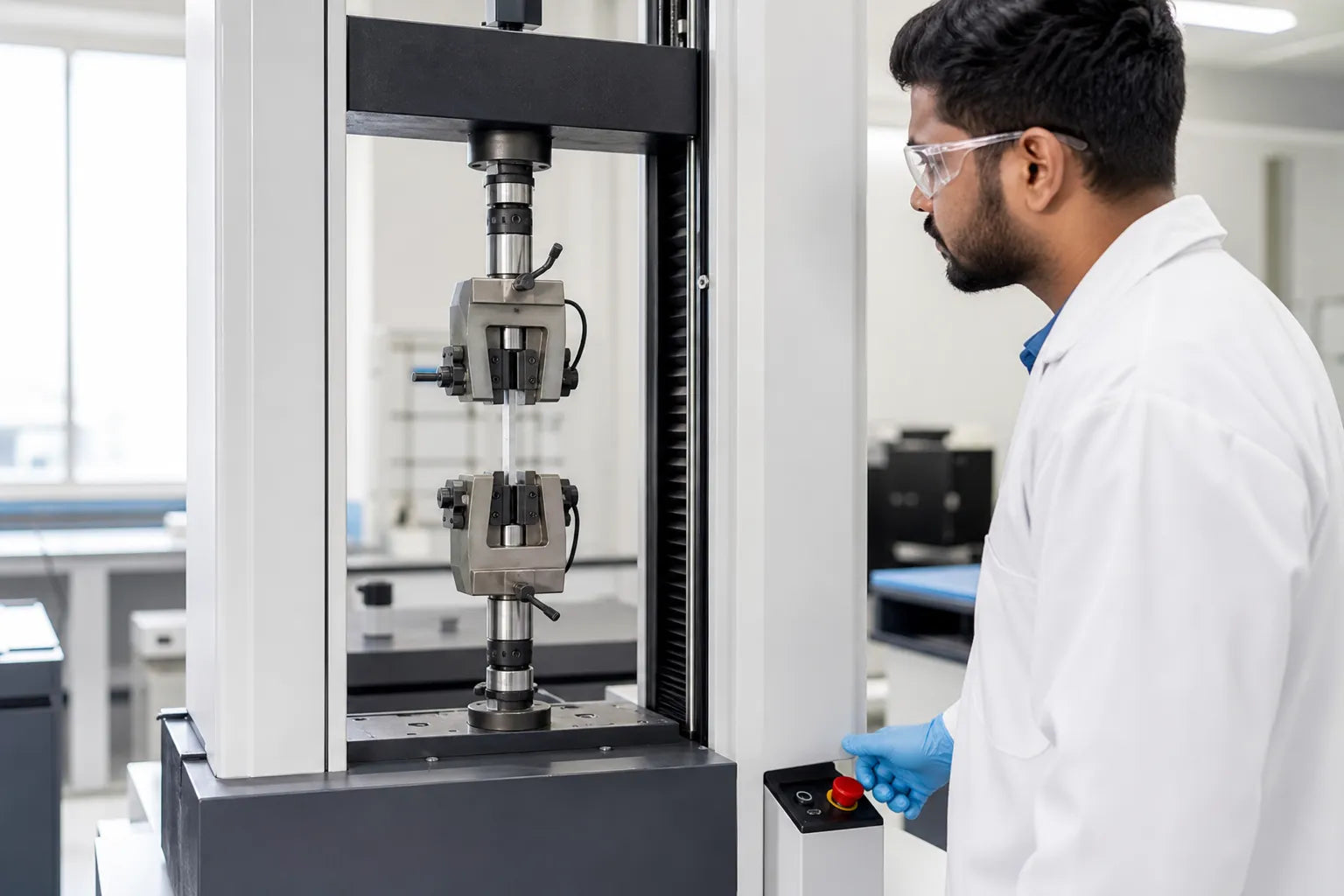

Universal testing machines explained for Indian QC and R&D labs

Universal testing machines sit at the centre of mechanical characterisation work in Indian laboratories, yet choosing, configuring, and operating one correctly is rarely as straightforward as a specification sheet suggests. Whether you run a quality control cell in an automotive component plant, manage an accredited third-party testing lab, or oversee an R&D facility developing new materials, the decisions you make around load capacity, gripping systems, extensometry, and software reporting will shape the reliability of every result you produce. This guide walks through machine architecture, the standards that govern Indian testing practice, and the practical matching process that helps labs avoid costly mismatches between equipment and application.

What universal testing machines means in practice

A universal testing machine is a servo-controlled or electromechanical load frame designed to apply controlled tension, compression, bending, or shear forces to a specimen while simultaneously measuring load and displacement. The word "universal" reflects the machine's ability to run multiple test modes from a single platform by changing grips, fixtures, and test parameters — not that any single machine suits every conceivable application.

In Indian laboratories, universal testing machines are most commonly used for tensile testing of metals, polymers, rubber, textiles, and composites. They are also used for compression testing of concrete cores, foam, and packaging, as well as flexural testing of beams, pipes, and laminates. The same load frame, with appropriate tooling, can run all of these test types.

The architecture of a typical machine consists of a rigid load frame (single-column or dual-column), a crosshead driven by a ball-screw or hydraulic actuator, a load cell mounted in the load train, grips or fixtures attached to the crosshead and base, and a controller that governs crosshead speed and data acquisition. Electromechanical machines dominate the low-to-mid capacity range (roughly 1 kN to 600 kN) and are preferred in most QC and R&D settings because of their displacement accuracy and ease of programming. Hydraulic machines are more common above 600 kN, where the forces required for structural steel sections, wire ropes, or large castings exceed what a ball-screw actuator can deliver economically.

For a universal testing machine for tensile test work specifically, the load cell accuracy class and the extensometer resolution are the two parameters that most directly determine whether your results will satisfy ASTM E8 or IS 1608. Both standards require that the testing machine be verified to a specific accuracy class before use — a requirement that is often overlooked when labs focus only on maximum load capacity.

Testing machines in this category are also governed by IS 1828 (the Indian standard for verification of testing machines) and ASTM E4 (the equivalent American standard). Calibration against these standards is not optional for accredited laboratories; it is a prerequisite for issuing valid test reports.

How to think about universal testing machines

Understanding what a UTM can do is only half the picture. The more useful skill is knowing how to reason about the machine in relation to your specific specimens, standards, and reporting obligations. This section builds that reasoning framework.

The core problem to understand

The central challenge with universal testing machines is the mismatch between rated capacity and actual usable range. A machine rated at 100 kN can apply up to 100 kN of force, but its load cell is typically accurate only above a certain percentage of full scale — often 0.5% to 1% of rated capacity, depending on the accuracy class. If you are testing thin polymer films that break at 50 N, a 100 kN machine will produce results with unacceptable uncertainty, even if the machine itself is perfectly calibrated.

This is why load cell selection and, in some cases, interchangeable load cell systems matter as much as the frame capacity. Many modern electromechanical testing machines support multiple load cells that can be swapped depending on the specimen type. A metals lab testing both structural steel coupons and thin-gauge sheet may need a 200 kN cell for the former and a 2 kN cell for the latter, on the same frame.

The second structural problem is grip design. Grips must hold the specimen without slipping and without introducing stress concentrations at the grip face that cause premature failure. Wedge-action grips are the most common choice for flat metal specimens because they self-tighten as load increases. Pneumatic grips are preferred for soft materials where consistent, repeatable clamping pressure is important. Threaded grips are used for round bar specimens. Using the wrong grip type is one of the most common reasons for invalid test results — the specimen breaks in the grip zone rather than in the gauge length, and the result must be discarded.

The practical decision criteria

When specifying a universal testing machine for tensile test applications, Indian labs should work through the following criteria in order.

Specimen material and geometry come first. The material determines the expected failure load, which sets the load cell range. The geometry — flat, round, tubular, woven — determines the grip type. IS 1608 specifies standard specimen geometries for metallic materials; ASTM E8 covers the equivalent American geometries. If your lab tests to both standards, confirm that your grips and fixtures can accommodate both specimen families.

Capacity and accuracy class come next. For metals testing under IS 1608 or ASTM E8, the machine must meet accuracy class 1 (within 1% of the applied force). For some polymer or rubber testing standards, class 2 may be acceptable. Verify the accuracy class of the machine you are evaluating, not just the maximum load.

Crosshead speed range matters more than most buyers realise. Tensile tests on metals are typically run at slow, controlled displacement rates (often 1 mm/min to 10 mm/min for yield determination). Some polymer tests require much higher speeds. Confirm that the machine's controller can maintain the specified speed accurately across the full range, not just at mid-range.

Extensometry is the area where Indian labs most frequently underinvest. A crosshead displacement measurement is not the same as a gauge-length strain measurement. For accurate Young's modulus and proof stress determination, a clip-on or non-contact extensometer is required. Clip-on extensometers are cost-effective and reliable for ductile metals. Video or laser extensometers are better suited for brittle materials, rubbers, or specimens where attaching a clip would disturb the measurement. If your lab issues reports that include modulus values, an extensometer is not optional.

Software and reporting capability is the final practical criterion. Modern UTMs are controlled by PC-based software that handles test programming, data acquisition, and report generation. For NABL-accredited labs, the software must produce reports that include all parameters required by the relevant standard, with traceability to calibration records. Confirm that the software can export data in formats your quality system requires, and that it supports the specific calculations (0.2% proof stress, elongation after fracture, reduction of area) mandated by your test standards.

Browsing the tensile testing machine collection gives a useful reference point for how capacity, configuration, and application type map onto different machine families.

Common mistakes to avoid

Buying on capacity alone is the most expensive mistake. A 600 kN machine in a lab that tests mostly 10 kN specimens will produce poor data and waste floor space. Size the machine to your actual specimen population, not to the largest specimen you might theoretically ever test.

Neglecting calibration intervals is the second common error. IS 1828 and ASTM E4 both specify that testing machines should be verified after installation, after any repair or relocation, and at regular intervals thereafter. Many Indian labs calibrate at installation and then allow years to pass before the next verification. For accredited labs, this is a nonconformity waiting to be found during an assessment.

Ignoring environmental conditions is a practical mistake that affects both machine performance and result validity. Electromechanical machines are sensitive to vibration, and their load cells can drift in high-humidity environments. If your lab is located in a coastal or high-humidity region, confirm that the machine's environmental specifications match your conditions, and consider whether air conditioning or vibration isolation is needed.

Underspecifying the software is a mistake that becomes apparent only after the machine is installed. If your lab needs to generate reports that comply with a specific customer format or a specific standard's reporting requirements, verify this capability before purchase, not after.

Finally, treating universal testing machines as standalone equipment rather than as part of a broader measurement system leads to gaps in traceability. The load cell, extensometer, and controller each require independent calibration. A calibrated machine with an uncalibrated extensometer produces results that cannot be fully defended in an audit.

How to apply this to universal testing machines

Translating the framework above into a practical procurement and commissioning process requires a structured approach. The following sequence works well for most Indian QC and R&D labs.

Start by auditing your current specimen population. List every material type, specimen geometry, expected failure load range, and applicable test standard. This audit will reveal whether you need a single-capacity machine or a system with interchangeable load cells. It will also identify which grip types you need on day one versus which you might add later.

Next, map your standards requirements. If you test to IS 1608, confirm that the machine meets the accuracy and speed requirements specified in that standard. If you also test to ASTM E8, check for any differences in specimen geometry or speed requirements that might affect your grip or software configuration. Where standards overlap, a well-configured machine can serve both without modification.

Then specify the extensometer. For most metals testing, a clip-on extensometer with a 50 mm gauge length is a practical starting point. If your lab tests high-elongation materials (rubbers, textiles, some polymers), you will need an extensometer with a longer travel range or a non-contact system. Confirm that the extensometer interfaces correctly with the machine's controller and that the combined system meets the strain measurement accuracy requirements of your test standard.

Commission the machine properly. Installation verification should include a full calibration of the load cell across its working range, verification of crosshead speed accuracy, and a check of the extensometer calibration. Run a set of reference specimens with known properties to confirm that the system produces results consistent with expected values before releasing the machine for production testing.

For labs that also characterise materials under cyclic loading, understanding fatigue testing principles for labs is a useful complement to UTM commissioning, since some fatigue test configurations use the same load frame with a different control mode.

Document everything. Your quality system should record the machine's calibration status, the load cells and extensometers in use, the grip configurations for each specimen type, and the software version. When a result is questioned months later, this documentation is what allows you to defend the measurement.

Review your setup periodically. As your specimen population changes — new materials, new customer specifications, new standards — revisit the machine configuration to confirm it remains appropriate. A UTM that was correctly specified three years ago may need a new load cell or a different extensometer as your testing scope evolves.

Labs evaluating their broader instrument portfolio alongside UTMs often find it useful to read the Rockwell hardness tester selection guide, since hardness testing and tensile testing frequently serve the same quality control objectives and are often procured together.

Recommended next steps

If you are at the beginning of a UTM procurement process, the most productive first step is the specimen audit described above. Knowing your actual load ranges, specimen geometries, and applicable standards before you engage any supplier puts you in a position to evaluate proposals critically rather than accepting a default configuration.

If you already have a universal testing machine and are questioning whether it is configured correctly for your current work, start with the calibration records. Confirm that the load cell, extensometer, and controller have all been calibrated within the required intervals and that the calibration covers the load range you actually use — not just the upper portion of the machine's rated capacity.

For labs building out a complete mechanical testing capability, universal testing machines are typically the anchor instrument around which other testing machines are selected. Hardness testing, impact testing, and fatigue testing each address properties that a UTM cannot measure directly, but the specimen preparation and documentation practices developed around UTM work transfer well to those disciplines.

The goal in every case is the same: a measurement system that produces results you can defend, to the standard your customer or accreditation body requires, on the specimens your process actually generates. Getting the machine specification right from the start is the most reliable way to reach that goal.
