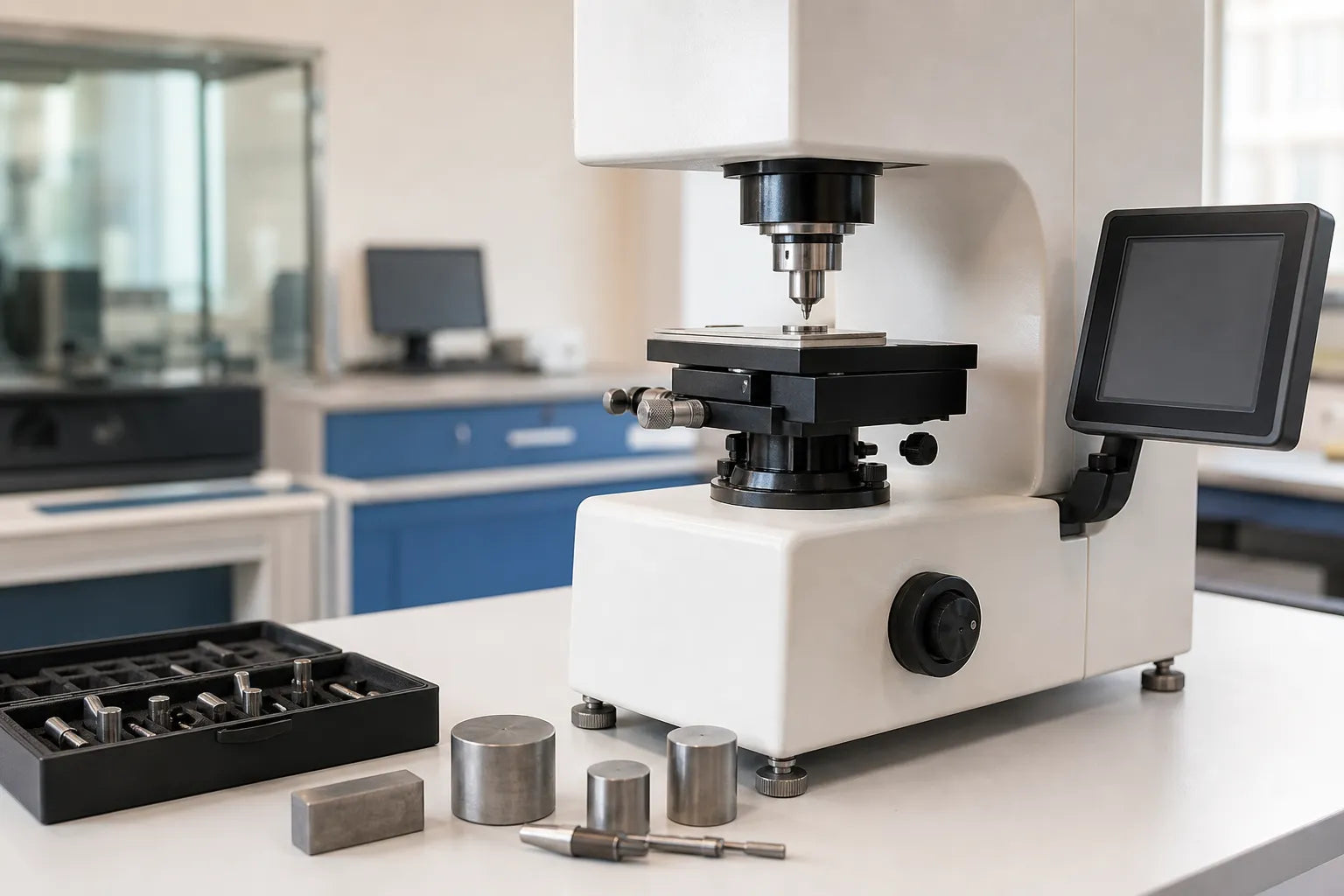

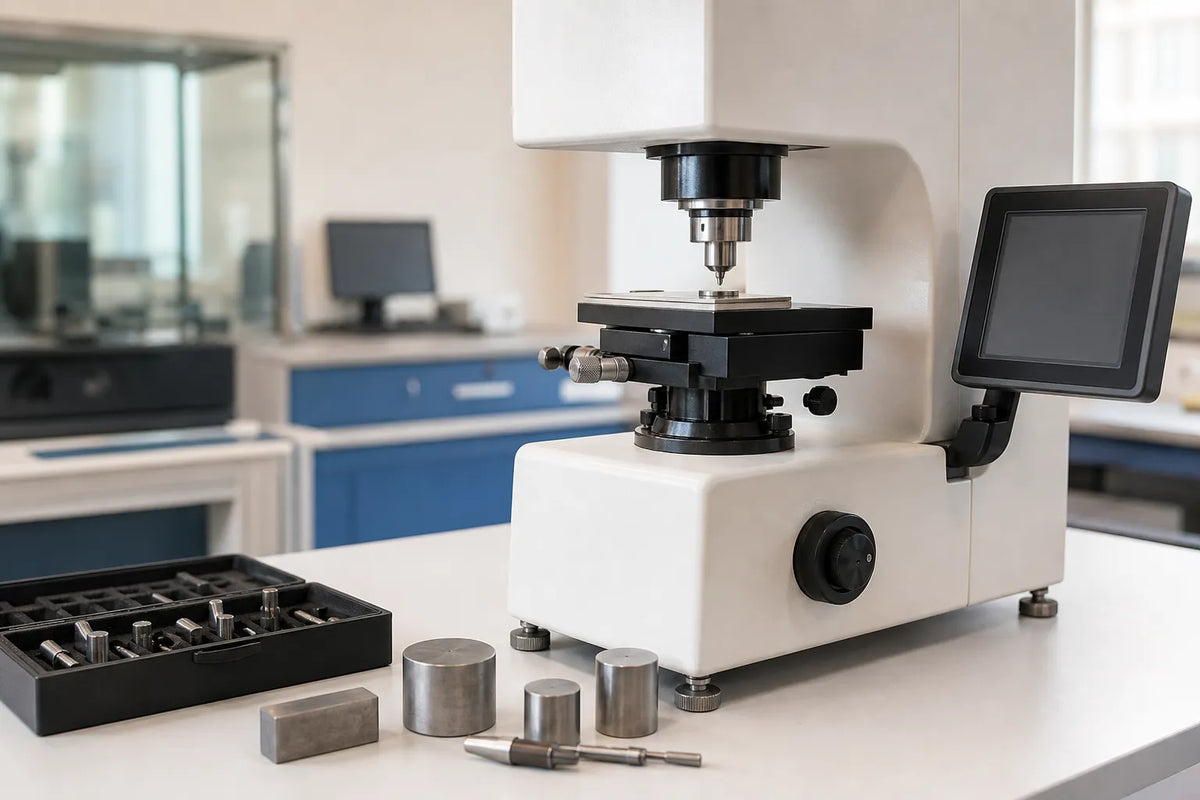

What really drives Vickers hardness tester cost and value

Written by

Rajiv Nambiar

Senior Applications Engineer

13 Aug 202610 min read

Buying a Vickers hardness tester is rarely as simple as comparing sticker prices. The upfront cost is only one part of the picture. Optics quality, load range, turret automation, image analysis software, calibration traceability, and the availability of local service support all shape what you actually pay over the life of the machine — and what results you can trust. This guide breaks down each of those cost drivers so you can make a confident, well-grounded decision rather than discovering hidden expenses after the purchase.

Quick answer: how to choose a Vickers hardness tester

If you are evaluating a Vickers hardness test machine for the first time, start with three questions: What materials and load ranges do you need to cover? How many tests do you run per day? And what level of measurement traceability does your quality system require?

The answers will immediately separate the machines worth considering from those that are technically capable but wrong for your situation. A micro-load tester suited to thin coatings and case-hardened layers is a very different investment from a macro-Vickers machine used for bulk steel qualification. Neither is universally better — fit to use case is the first filter.

Once fit is established, the real comparison is between low upfront price and low total cost of ownership. In Indian laboratory conditions, where ambient temperature, power stability, and service response times vary considerably, a machine with a cheaper optical system or no local support contract can cost significantly more over three to five years than a better-specified machine bought at a higher initial price.

The sections below walk through each criterion in detail.

What to look for in a Vickers hardness tester

Fit for your real use case

The Vickers method applies a diamond pyramid indenter under a defined load, then measures the diagonal lengths of the resulting indentation under a microscope. That measurement step is where most of the real-world variation between machines shows up — not in the loading mechanism itself.

Consider the load range first. Micro-Vickers testers typically operate from around 10 gf to 1 kgf and are suited to thin films, coatings, case depths, and small components. Macro-Vickers machines cover loads from 1 kgf up to 100 kgf or more and are appropriate for bulk hardness testing of forgings, castings, and structural steel. Some machines span both ranges, which adds flexibility but also adds cost. If your work is clearly in one zone, a dedicated machine in that range is usually more cost-effective.

Sample geometry matters too. Tall or irregular parts may require a machine with a larger throat depth or a motorized Z-axis. If you are testing mounted metallographic samples on a flat stage, a standard configuration is fine. If you are testing assembled components or curved surfaces, check the stage travel and clearance specifications carefully before shortlisting.

Value, price, and total cost

The purchase price of a Vickers hardness tester reflects several compounding factors, and understanding which ones you are actually paying for helps you avoid both overpaying for features you will not use and underpaying for a machine that will create problems downstream.

Optics are the single largest quality differentiator. The Vickers test result depends entirely on the accuracy of the indentation measurement, which in turn depends on the resolution, contrast, and flatness of the optical system. A machine with a low-grade objective lens will produce inconsistent diagonal readings, especially at micro-load levels where the indentation is very small. Better optics cost more to manufacture, and that cost is passed through to the buyer — but it is also the cost that most directly protects measurement accuracy.

Turret automation is the next significant driver. Manual turrets require the operator to physically rotate between the indenter and the measurement objective, introducing handling variation and slowing throughput. Motorized turrets eliminate that variable and are essentially mandatory for high-volume labs or for any application where operator-to-operator repeatability is being audited. The price premium for a motorized turret is real, but so is the reduction in measurement uncertainty.

Image analysis software adds another layer of cost and capability. Basic machines require the operator to manually position crosshairs over the indentation diagonals. Semi-automatic systems use motorized eyepiece drives. Fully automatic image analysis software identifies the indentation boundary, measures both diagonals, calculates the HV value, and logs the result — all without operator judgment calls. For labs running accreditation under NABL or similar schemes, automatic measurement reduces the subjectivity that auditors scrutinize. The software license and the camera system it requires are a genuine cost, but they also reduce per-test labor time and improve audit traceability.

Calibration and traceability infrastructure is a cost that buyers often underestimate. A machine needs certified reference hardness blocks at regular intervals, and the machine itself needs periodic calibration against traceable standards. If the supplier cannot provide calibration certificates with an unbroken chain to national or international standards, the machine's results may not be accepted by your customers or accreditation body. Factor calibration service costs into your total cost of ownership calculation from the start.

After-sales support is the final and often most underestimated cost driver in Indian lab conditions. A machine that breaks down and waits three weeks for a spare part or a service engineer from another city is not just an inconvenience — it is a production stoppage. Ask prospective suppliers specifically about spare parts availability, local service engineer coverage, and typical response times before committing.

Features that actually change the experience

Some features are genuinely transformative for day-to-day use; others are marketing additions that rarely get used.

Features that change the experience in practice include: a stable, vibration-damped base (critical for micro-load tests where even minor vibration distorts the indentation); a motorized XY stage with programmable test patterns (saves significant time when running hardness traverses on cross-sections); automatic turret rotation; and integrated image capture with measurement logging. If your lab is producing test reports for customers or regulators, automatic logging directly into a traceable record eliminates a manual transcription step that is both time-consuming and error-prone.

Features that are nice but rarely decisive include: touchscreen interfaces (useful but not accuracy-critical), multiple language options, and decorative enclosures. These add to the price without adding to measurement capability.

One feature worth specific attention is the illumination system. Consistent, even illumination of the indentation is essential for reliable automatic image analysis. Ring illumination or coaxial illumination systems produce more consistent contrast than basic reflected-light setups, particularly on polished metallic surfaces that can create glare artifacts.

Tradeoffs and limitations to check first

Every Vickers hardness test machine involves tradeoffs, and knowing them in advance prevents buyer's regret.

The main tradeoff between micro and macro capability is that machines designed to cover the full load range from 10 gf to 100 kgf are mechanically more complex and more expensive than dedicated machines. If your lab genuinely needs both ranges, the combined machine is justified. If you are buying combined capability speculatively, you are paying for a range you may never use.

Automatic image analysis is accurate on well-prepared, polished samples with clear indentation boundaries. On poorly prepared samples, rough surfaces, or materials with very low contrast between the indentation and the surrounding matrix, automatic measurement can fail or produce outliers. Manual measurement by a trained operator is sometimes more reliable in those edge cases. A machine with both automatic and manual measurement modes gives you the fallback.

Software lock-in is a real limitation. Some machines use proprietary image analysis software that cannot be updated independently or that requires expensive license renewals. Ask about the software update policy and whether future upgrades are included or separately charged.

Finally, consider the electrical supply environment. Machines with sensitive electronic load cells and digital measurement systems can be affected by voltage fluctuations. A stabilized power supply is often a necessary accessory in Indian industrial environments, and it adds to the effective purchase cost.

How to make the right Vickers hardness tester decision

Work through the following decision sequence before finalizing a purchase.

Start with your load range and sample type. Write down the thinnest and thickest sections you will test, the hardest and softest materials, and whether you need to measure case depth profiles. This defines the minimum specification your machine must meet.

Next, estimate your daily test volume. Low-volume labs (fewer than twenty tests per day) can often justify a semi-automatic machine with manual diagonal measurement. High-volume labs or labs under accreditation audit should prioritize automatic image analysis and motorized turrets, because the time savings and repeatability improvements justify the cost at scale.

Then assess your traceability requirements. If you are operating under NABL accreditation, supplying to automotive or aerospace customers, or producing test reports that will be used in dispute resolution, you need a machine whose calibration chain is fully documented and whose software produces traceable output records. This is not optional — it is a compliance requirement.

After that, evaluate the supplier's service infrastructure. Request specific information about local service coverage, spare parts lead times, and calibration service availability. A supplier who cannot answer these questions concretely is a risk in a market where downtime is costly.

Finally, calculate total cost of ownership rather than comparing purchase prices alone. Include calibration blocks, annual calibration service, software updates, consumables, and a realistic estimate of service costs over five years. The machine with the lower purchase price is not always the lower-cost machine over its working life.

For labs that also work with other hardness methods, it is worth reviewing how a Vickers hardness tester fits alongside Rockwell and Brinell equipment in your overall testing workflow, since some applications genuinely require multiple methods and some do not.

Recommended next steps

If you are at the stage of shortlisting machines, the most productive next step is to request a demonstration on your actual sample types rather than on the supplier's reference samples. A demonstration on polished reference blocks will always look good; a demonstration on your real production material will reveal how the optics, illumination, and image analysis software perform under your actual conditions.

Prepare a written specification that covers load range, minimum indentation size, required measurement uncertainty, software output format, and calibration traceability requirements. Sharing this with prospective suppliers forces a concrete technical response rather than a general product pitch.

If you are also evaluating other hardness methods for your lab, exploring the full range of hardness testing equipment available for different applications will help you understand where Vickers fits in a broader quality control workflow. For labs that need to support multiple test standards, reviewing the material testing machines suited to your industry sector is a useful parallel step. And if calibration traceability is a concern — as it should be for any accredited lab — understanding the calibration and support services available from your supplier before purchase is as important as the machine specification itself.

The right Vickers hardness tester is the one that fits your load range, your sample types, your throughput, and your traceability requirements — at a total cost of ownership that makes sense over its working life, not just on the day of purchase.
