Charpy impact testing sits at the heart of metals qualification work, yet it is often misunderstood by labs that are more comfortable with tensile or hardness routines. This guide explains the test principle from the ground up, covers the decisions that matter in daily lab practice, and shows where Charpy fits in a complete material qualification workflow — including weld procedure qualification, which is where the test earns much of its importance in Indian industrial labs.
What charpy impact testing means in practice

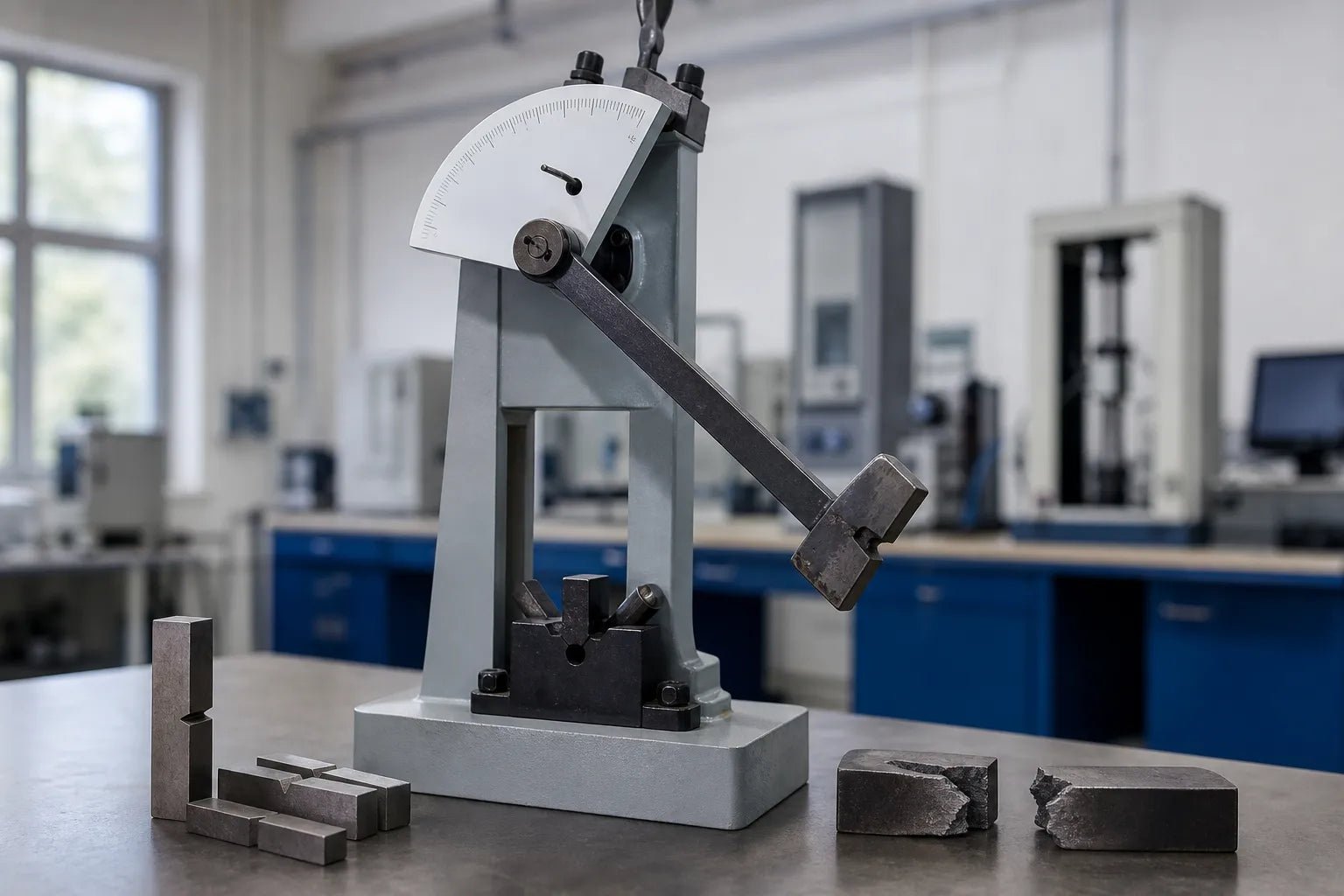

Charpy impact testing is a dynamic fracture test. A notched metal specimen is struck by a swinging pendulum hammer, and the machine measures how much energy the material absorbs before it fractures. That absorbed energy, reported in joules, is the central result of the test.
The reason this matters is that a material can be perfectly adequate under slow, steady loading — as measured by a tensile test — and still fail catastrophically when struck by a sudden impact. Structural steels used in pressure vessels, pipelines, bridges, and lifting equipment all face real-world loading that is anything but slow and steady. Charpy impact testing reveals whether a material has the toughness to survive those conditions.
The test is also temperature-sensitive in a way that tensile and hardness tests are not. Most ferritic steels undergo a ductile-to-brittle transition as temperature drops. Above a certain threshold, the material absorbs a large amount of energy and fractures in a ductile, fibrous manner. Below that threshold, absorbed energy drops sharply and fracture becomes brittle and crystalline. Identifying that transition temperature is one of the primary reasons engineers specify Charpy impact testing for low-temperature service applications.
In Indian labs, the test is governed primarily by IS 1757 and IS 1598, and weld procedure qualification under standards such as ASME Section IX and ISO 15614 routinely requires Charpy V-notch impact testing on the weld metal and heat-affected zone. An impact testing machine calibrated to the relevant standard is therefore essential equipment for any lab involved in structural or pressure-equipment work.
How to think about charpy impact testing
Understanding Charpy impact testing well means thinking about it at three levels: the underlying physics, the practical decisions that affect your results, and the procedural errors that quietly invalidate data.
The core problem to understand
The core concept in Charpy impact testing is the relationship between energy, notch geometry, and material behaviour at a specific temperature.
The pendulum hammer is released from a known height. It swings down, strikes the specimen, and continues upward on the other side. The difference between the starting potential energy and the energy remaining after the strike is the energy absorbed by the specimen. This is the Charpy impact value. The calculation is straightforward: absorbed energy equals the pendulum mass multiplied by gravitational acceleration multiplied by the difference in height before and after the strike. In practice, the machine's dial or digital readout displays this directly, but understanding the underlying physics helps you interpret anomalous readings.
The notch is not incidental — it is the controlled stress concentrator that forces fracture to occur at a defined location and in a defined mode. In Charpy V-notch impact testing, the notch has a 45-degree included angle, a 2 mm depth, and a 0.25 mm root radius, as specified in ISO 148-1 and ASTM E23. These dimensions are precise because small deviations change the stress state at the notch root and directly affect the absorbed energy result. A notch that is even slightly shallower or has a larger root radius will produce higher energy values that are not comparable to correctly prepared specimens.
This is also why Charpy impact testing is distinct from Izod impact testing, the other common pendulum method. In Izod testing, the specimen is clamped vertically as a cantilever and struck at the free end. In Charpy testing, the specimen is supported horizontally at both ends and struck at the centre, opposite the notch. The two methods are not interchangeable, and results cannot be directly converted between them.
The ductile-to-brittle transition is the most practically important concept in Charpy impact testing for structural metals. A series of tests conducted at progressively lower temperatures will show a characteristic S-curve when absorbed energy is plotted against temperature. The upper shelf represents fully ductile behaviour; the lower shelf represents fully brittle behaviour; and the transition region is where the material's behaviour is most sensitive to temperature. The transition temperature is often defined as the temperature at which absorbed energy equals a specified value — commonly 27 J or 40 J depending on the standard — or as the temperature at which the fracture surface shows 50 percent fibrous (ductile) appearance. Both criteria appear in different standards, so it is important to know which definition applies to your specification.
Understanding the physics of impact testing also connects naturally to fatigue behaviour. Both phenomena involve materials responding to dynamic, repeated, or sudden loading rather than static stress. If you want a broader foundation in how dynamic loading affects material performance, the article on fatigue testing principles covers the underlying materials science that applies across impact and cyclic loading scenarios.
The practical decision criteria
Several decisions shape whether your Charpy impact testing programme produces reliable, comparable data.
The first is specimen orientation. For rolled plate or forged material, the direction from which the specimen is machined relative to the rolling or forging direction significantly affects results. Longitudinal specimens (notch perpendicular to the rolling direction) typically absorb more energy than transverse specimens. Most standards specify orientation explicitly, but when they do not, you must document it carefully so that results are comparable across test series.
The second is test temperature. If the specification requires testing at sub-ambient temperature, the specimen must be conditioned at that temperature for a defined period — typically in a temperature-controlled bath — and then transferred to the anvil and struck within a strict time limit, usually five seconds. Any delay allows the specimen to warm, which can shift results significantly in the transition region. This is one of the most common sources of variability in low-temperature Charpy impact testing.
The third is the number of specimens. Most standards require a minimum of three specimens per test condition, and the acceptance criterion is applied to both the average and the individual minimum. A single outlier result below the individual minimum is a failure even if the average is acceptable. Understanding this distinction matters when you are evaluating borderline results.
The fourth is fracture surface examination. After testing, the fracture surface should be examined to estimate the percentage of fibrous (shear) versus crystalline (cleavage) fracture. This lateral expansion measurement and shear fracture percentage provide supplementary information about the failure mode and are required by some standards alongside the energy value.
Common mistakes to avoid
The most consequential mistakes in Charpy V-notch impact testing are those that affect notch geometry, specimen temperature, and machine calibration.
Notch preparation errors are the most common source of systematic bias. The V-notch must be machined to exact dimensional tolerances. A broached notch is generally preferred over a milled notch because broaching produces a more consistent root radius and surface finish. Any burrs, surface damage, or dimensional deviation at the notch root will alter the stress concentration and produce results that cannot be compared to correctly prepared specimens.
Machine calibration is the second critical area. The pendulum energy, friction losses, and anvil geometry must all be within the tolerances specified by the governing standard. Machines that are not regularly verified against certified reference specimens will drift, and the drift is not always visible in routine operation. ISO 148-2 covers the verification of Charpy impact testing machines, and labs that issue test reports for third-party acceptance should be able to demonstrate current verification status.
Specimen handling errors are easy to overlook. Dropping a specimen, marking it with a punch in the wrong location, or allowing surface contamination can all affect results. For low-temperature testing, handling the specimen with bare hands after conditioning will warm the notch region faster than the bulk of the specimen, introducing a localised temperature error.
Finally, recording errors matter more than they might seem. Charpy impact testing results are often used for material traceability and weld procedure qualification records that must be retained for years. Errors in specimen identification, test temperature, or orientation that are not caught at the time of testing can invalidate an entire qualification record.
How to apply this to charpy impact testing
Translating the principles above into a reliable lab workflow requires attention to three practical areas: specimen preparation, machine readiness, and documentation.
Specimen preparation begins before the specimen reaches the impact machine. The material must be machined to the correct cross-section — typically 10 mm × 10 mm for a standard specimen, with sub-size specimens permitted when material thickness is insufficient — and the notch must be introduced with precision. A notch broaching machine is the standard tool for this step, producing the controlled V-notch geometry that the test depends on. Dimensional verification of the notch using a calibrated optical comparator or profile projector should be part of the routine before any specimen is tested.
Machine readiness means more than switching the equipment on. Before a test series, verify that the pendulum is latched at the correct starting angle, that the energy scale is zeroed, and that the anvil and striker are clean and free of debris from previous tests. For machines with analogue dials, check that the pointer returns to zero correctly. For digital machines, confirm that the calibration verification is current. If your lab tests at sub-ambient temperatures, the temperature bath and transfer procedure should be rehearsed so that the five-second transfer window is consistently achievable.
Documentation for Charpy impact testing in a weld qualification context must capture specimen identity, material heat number, specimen orientation, notch type and dimensions, test temperature, individual energy values for each specimen, average energy, lateral expansion, and shear fracture percentage where required. The test report should also reference the standard used and the machine identification. This level of detail is not bureaucratic excess — it is what allows a third-party inspector or an auditor to reconstruct the test conditions years later.
Where Charpy impact testing fits in the broader qualification workflow is worth stating clearly. Tensile testing establishes strength and ductility under slow, controlled loading. Hardness testing provides a rapid, non-destructive indication of strength and is often used for weld HAZ surveys. Charpy impact testing adds the dimension of toughness under dynamic loading at a specified temperature. All three are typically required for full weld procedure qualification under major codes, and none of them substitutes for the others. A material that passes tensile and hardness requirements but fails Charpy impact testing is not qualified for low-temperature or impact-loaded service, regardless of its strength.
If you are evaluating equipment for your lab, the Charpy testing machine buying guide covers the selection criteria, capacity considerations, and verification requirements in detail — a useful next step once you have the test fundamentals in place.
FAQ about charpy impact testing
What is a Charpy impact test used for?
Charpy impact testing measures how much energy a metal absorbs when fractured by a sudden blow, used to assess toughness and identify the ductile-to-brittle transition temperature for structural and weld qualification.
How to perform a Charpy test?
A notched specimen is placed horizontally on the anvil supports, a pendulum hammer is released from a fixed height, and the energy absorbed during fracture is read from the machine's scale or display.
What are the two types of impact testing?
The two standard pendulum impact tests are Charpy, where the specimen is supported at both ends and struck at the centre, and Izod, where the specimen is clamped vertically and struck at the free end.
How to calculate Charpy impact energy?
Absorbed energy equals the pendulum mass multiplied by gravitational acceleration multiplied by the difference in height before and after the strike; in practice, the impact testing machine displays this value directly in joules.
How to read a Charpy test?
The primary result is the absorbed energy in joules. Supplementary readings include lateral expansion in millimetres and the percentage of shear (fibrous) fracture on the broken surface, all compared against the minimum values in the applicable standard.
What should readers know first about charpy impact testing?
The test measures dynamic toughness, not static strength. A material can meet tensile and hardness requirements and still fail Charpy impact testing if its toughness at the service temperature is insufficient.
How do you choose the right charpy impact testing approach?
Match the notch type, specimen size, test temperature, and acceptance criteria to the governing standard for your application — typically IS 1757, ASTM E23, or ISO 148-1 — and verify that your machine and specimen preparation meet that standard's requirements.
What mistakes should you avoid with charpy impact testing?
Avoid notch dimensional errors, exceeding the specimen transfer time during low-temperature testing, and using an uncalibrated machine. Any of these can produce results that appear valid but are not comparable to correctly conducted tests.
Recommended next steps
Charpy impact testing is a precise discipline where small procedural details — notch geometry, transfer time, machine calibration — have a direct and measurable effect on results. The most effective way to build competence is to work through the test standard in parallel with actual testing, so that each procedural requirement connects to a physical reason rather than being followed as a rule without context.
For labs setting up or upgrading their impact testing capability, the priority areas are specimen preparation equipment, machine verification, and documentation systems. Getting these three elements right before the first test report is issued is far less costly than discovering a systematic error after a series of qualification records has been generated.
The fundamentals covered here — pendulum energy, notch geometry, ductile-to-brittle transition, and the role of Charpy impact testing in a complete qualification workflow — provide the foundation. Building on that foundation with hands-on practice, regular machine verification, and careful specimen preparation is what separates labs that produce reliable Charpy data from those that simply produce numbers.
