1. Start with the outcome you actually need
Before touching the machine, confirm what the test report must deliver. Are you measuring yield strength, elongation at break, or both? Does the applicable standard call for IS 1608, ASTM E8, or ISO 6892-1? The answer determines specimen geometry, gauge length, and the crosshead speed you will set later.
Measure the specimen cross-section at three points along the gauge length and record the minimum value. Using an assumed nominal dimension instead of a measured one is one of the most common causes of inflated strength readings in production labs. A universal testing machine can only compute stress correctly if the actual area is entered before the test begins.
2. Set up the simplest workable system

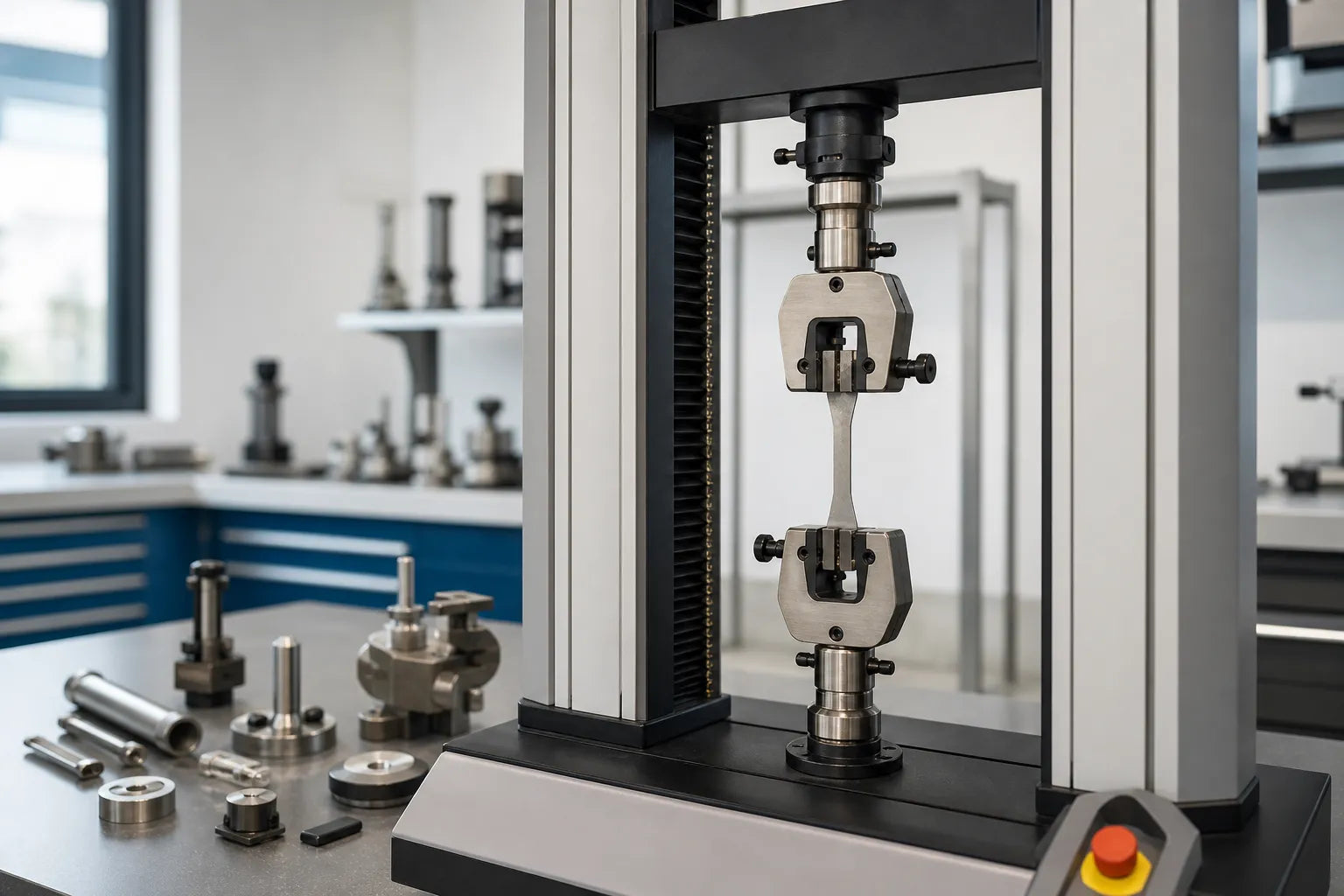

Select grips that match the specimen type — wedge grips for flat specimens, threaded grips for round bar. Mismatched grips cause jaw breaks, which invalidate the test and waste material. Align the upper and lower grip centerlines visually before clamping; even a small angular offset introduces bending stress that skews the stress-strain curve.
For tests that require elongation data, mount a mechanical extensometer on the gauge length marked on the specimen. Clip it symmetrically and verify the gauge length matches the standard requirement. Relying solely on crosshead displacement for elongation is a common shortcut in busy labs and consistently overestimates extension due to machine compliance.
3. Follow the process without overcomplicating it
Zero the load cell and the extensometer with the grips closed but no specimen loaded. Then insert the specimen, clamp it without pre-loading, and zero again. Set the crosshead speed according to the standard — most metallic specimen tests under IS 1608 specify a strain rate, not an arbitrary speed. Entering an incorrect speed is a frequent error that shifts the apparent yield point.
Run a short preload to seat the grips, confirm the load reading is stable, then start the test. The universal testing machines guide covers how strain rate selection interacts with material behaviour, which is useful background before you lock in the speed parameter for a new material family.
4. Check what is working and what is not
Watch the live load-extension curve as the test runs. A curve that dips immediately after the start usually signals grip slip or an unseated extensometer. A curve with an early, sharp drop before the expected yield region often means the specimen was nicked during preparation. Stop and re-prepare rather than recording a compromised result.
After the test, check three things before saving the report:
- Fracture location: it should fall within the gauge length, not at the grip edge
- Extensometer removal: confirm it was removed before fracture if the standard requires it
- Report values: cross-check computed UTS against the load at the peak of the curve manually
These checks catch software entry errors and unit mismatches, both of which appear regularly when operators switch between specimen types mid-shift.
5. Adjust when your situation changes
When the material, thickness, or standard changes, revisit every parameter — do not carry over settings from the previous batch. Thinner sheet specimens need lower grip pressure to avoid crushing; high-strength steel needs a slower approach speed to avoid load-cell overshoot. Universal testing machines for tensile strength testing are flexible by design, but that flexibility means incorrect carryover settings go undetected until results fail audit.
If ambient temperature in the lab changes significantly between shifts — common in Indian facilities without climate control — allow the load cell to stabilise for the manufacturer-recommended warm-up period before the first test of the day. Temperature drift in the load cell electronics is a real source of zero-load offset that compounds across a batch. Understanding how cyclic loading differs from static tensile loading is also useful context; the fatigue testing principles article explains why the two test types demand different machine configurations.
FAQ about universal tensile testing machine
What should readers know first about universal tensile testing machine?
Correct specimen measurement and grip selection must happen before any software parameter is set. Skipping these physical checks is the leading cause of invalid tensile data in production labs.
How do you choose the right universal tensile testing machine approach?
Match the machine capacity, grip type, and extensometer gauge length to the applicable test standard and specimen geometry. Choosing by machine capacity alone without checking grip compatibility leads to poor alignment and unreliable results.
What mistakes should you avoid with universal tensile testing machine?
The most damaging mistakes are using nominal instead of measured cross-section dimensions, skipping extensometer zeroing, and carrying over crosshead speed settings from a different material or standard without adjustment.
Is universal tensile testing machine worth it for daily use?
Yes. A properly set-up universal tensile testing machine for tensile test operations delivers consistent, auditable data that manual or indirect methods cannot match, making it essential for quality control in any production environment.
What should you compare before deciding on universal tensile testing machine?
Compare load cell capacity against your heaviest specimen, available grip types against your specimen geometry, and software compliance against the standards your lab is certified to. Universal testing machines for tensile strength vary significantly in these areas. ---
Recommended next steps
Review the test standard that applies to your most common specimen type and confirm that your current grip set, extensometer gauge length, and crosshead speed settings all match its requirements. If any parameter has been set by convention rather than by the standard, correct it before the next batch run. Consistent setup discipline is what separates repeatable tensile data from results that require repeated retesting.
