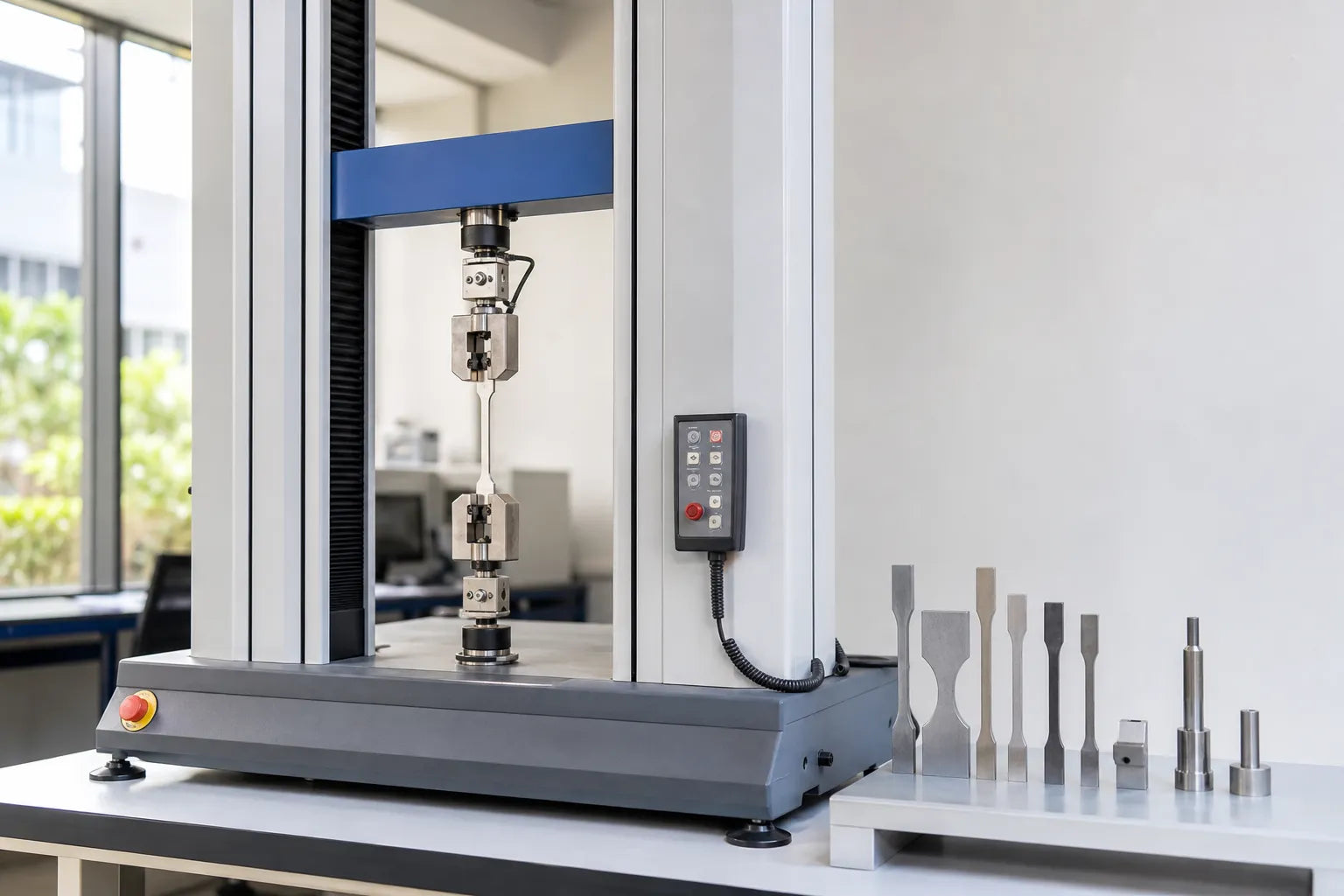

1. Best overall fit: the servo-hydraulic or electromechanical UTM as your lab anchor
A floor-standing Universal Testing Machine is the single most important piece of testing laboratory equipment in a new QC lab. It handles tensile, compression, bending, and shear tests across metals, polymers, composites, and textiles — making it the broadest-fit anchor for almost any industrial or institutional lab.
Key setup checklist items for this category:
- Confirm load capacity matches your heaviest expected specimen
- Verify floor load rating and ceiling clearance before delivery
- Plan a dedicated 3-phase power circuit with stable voltage
- Arrange grounding and vibration isolation if the lab is near heavy machinery
2. Best for value-focused readers: a single-column electromechanical UTM with modular grips
Labs with tighter budgets get strong coverage from a mid-range electromechanical universal testing machine for tensile strength that accepts interchangeable grip sets. You pay for one frame and expand capability over time rather than buying multiple machines upfront. Read the full universal tensile testing machine setup guide before finalizing your grip and fixture list.
Checklist items to keep costs controlled:
- Specify the grip types your first-year test matrix actually requires
- Budget for at least one certified calibration service at installation
- Confirm software licensing is included, not a recurring add-on
3. Best for a specific use case: pairing a UTM with a compression testing machine for concrete
Civil engineering and construction labs need both tensile and compressive data. A dedicated compression testing machine for concrete handles cube and cylinder specimens at the high loads those standards require, while the UTM covers rebar, geotextile, and polymer specimens. Running both as separate machines avoids fixture changeover time and keeps throughput high. If your lab also tests rotating components, the universal testing machine for tensile test resource covers how ancillary equipment decisions interact with your main testing workflow.
Checklist items for this dual-machine setup:
- Allocate separate floor zones with clear aisle access for each machine
- Confirm your compression tester meets the relevant concrete standard (IS, ASTM, or EN)
- Plan shared data software that accepts output from both machines
4. Best if you want fewer tradeoffs: a fully integrated UTM with built-in extensometry and software
Labs that cannot afford repeated downtime benefit from a universal testing machine for tensile strength that ships with an integrated extensometer, calibrated load cell, and licensed test software in a single validated package. The price and value for universal testing machine for tensile strength setups like this is higher upfront, but installation, calibration, and software compatibility are handled together, reducing the risk of component mismatch.
Checklist items before committing to an integrated package:
- Confirm the extensometer gauge length covers your specimen range
- Ask whether the software exports to your existing QC reporting format
- Verify the warranty covers both the mechanical frame and the electronics
5. Best option to skip if it does not match your needs: a high-capacity hydraulic UTM for general labs
A high-tonnage hydraulic universal testing machine for tensile strength is the right choice for structural steel, wire rope, or heavy forgings — but it is the wrong starting point for most new general-purpose labs. The hydraulic power unit requires dedicated plumbing, a larger footprint, higher maintenance intervals, and specialist operator training. If your test matrix does not include specimens above roughly 600 kN, this category of laboratory testing equipment adds cost and complexity without a matching return.
Skip this category if:
- Your specimens are primarily plastics, textiles, or light metals
- Your lab space is under 50 square meters
- You also need a hardness testing machine and a compression testing machine for concrete — the hydraulic UTM budget alone may crowd out those essential additions
FAQ about universal testing machine for tensile strength
What machine is used to test tensile strength?
A universal testing machine for tensile strength — also called a UTM — is the standard instrument. It applies a controlled tensile load to a specimen and records force and elongation until failure.
How do we test tensile strength?
A prepared specimen is gripped at both ends in the UTM, then pulled apart at a controlled crosshead speed. The machine records the load-extension curve, from which tensile strength, yield point, and elongation are calculated.
What should readers know first about universal testing machine for tensile strength?
Load capacity and grip compatibility are the two decisions that constrain everything else. Choosing universal testing machines without confirming these against your actual specimen dimensions and material types leads to costly retrofits.
How do you choose the right universal testing machine for tensile strength approach?
Match the machine's load range to your heaviest specimen, confirm the testing laboratory equipment meets the relevant standard (ASTM, ISO, IS), and verify that calibration and software support are available locally.
What mistakes should you avoid with universal testing machine for tensile strength?
The most common mistake is underspecifying the load cell range, which forces recalibration or machine replacement as the test matrix grows. Also avoid skipping a formal installation qualification — it affects traceability for all subsequent results.
Is universal testing machine for tensile strength worth it for daily use?
Yes, for any lab running routine material acceptance or quality control. A universal tensile strength testing machine pays back quickly when it replaces outsourced testing or manual pass/fail checks that lack documented traceability.
What should you compare before deciding on universal testing machine for tensile strength?
Compare load capacity, crosshead speed range, extensometer compatibility, software data export formats, and the supplier's local calibration and repair support. For labs also buying a hardness testing machine or compression testing machine for concrete, factor in total laboratory testing equipment budget across all instruments. ---
Recommended next steps
Prioritize your test matrix before any purchase. List every material type, specimen geometry, and applicable standard your lab will run in the first 12 months. That list drives load capacity, grip selection, and whether you need supporting laboratory testing equipment such as a hardness testing machine or a compression testing machine for concrete alongside your universal testing machines. Once the test matrix is clear, confirm utilities — power, space, and vibration isolation — before the universal testing machine for tensile strength arrives, so installation does not stall on an avoidable site issue.
