Tensile strength is not a single number that can be interpreted in isolation. In a mixed-material laboratory, the result must be connected to specimen geometry, material condition, test method, machine configuration, and the decision the quality team needs to make. A computerized universal testing machine can support this process by recording force, extension, stress-strain behaviour, and test conditions in a consistent digital workflow.
How tensile strength is defined and interpreted

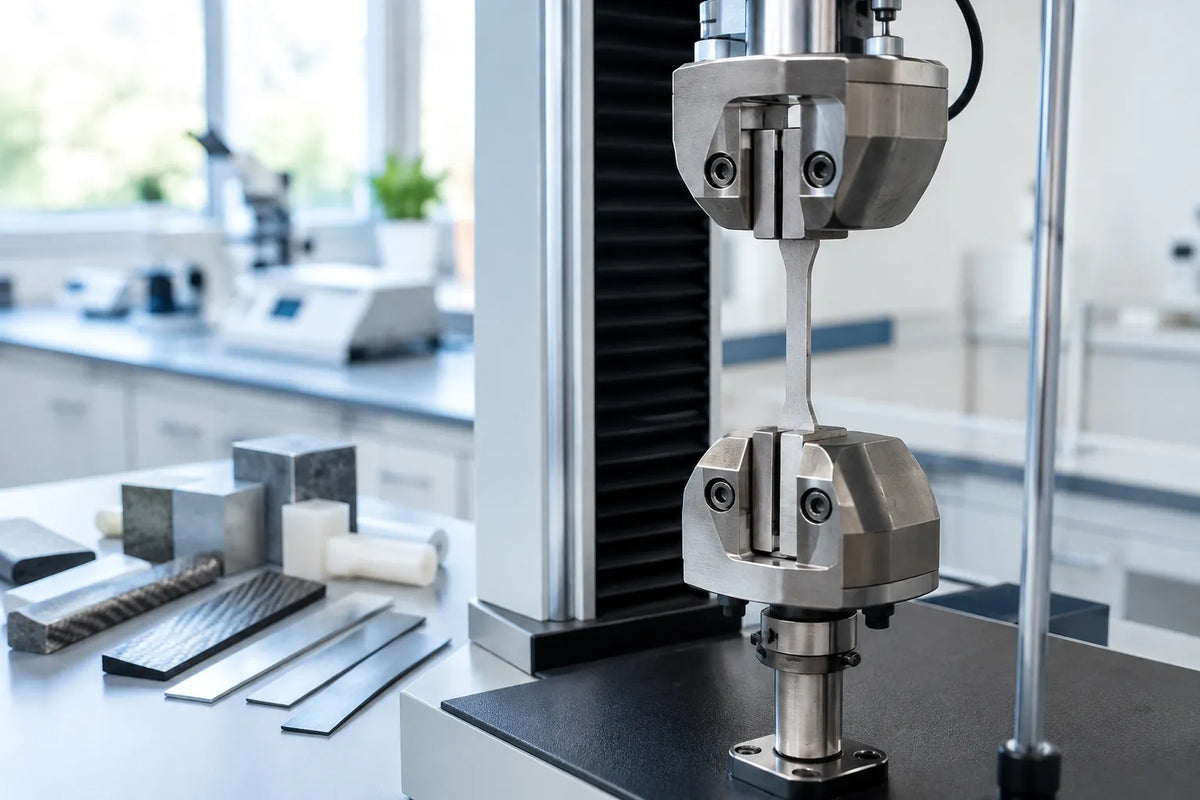

A tensile test applies a controlled pulling force to a prepared specimen until it elongates and, in many cases, fractures. The resulting data helps engineers understand how a material carries load, begins to deform permanently, reaches its maximum engineering stress, and fails.
The same test can answer different questions for different materials. A steel laboratory may focus on yield behaviour and elongation, while a polymer manufacturer may be more concerned with strain rate, conditioning, and deformation over time. The test equipment must therefore be configured around the material and the applicable method rather than treated as a universal, one-setting procedure.
From applied load to tensile stress
Tensile stress is commonly calculated by dividing the applied force by the specimen’s original cross-sectional area:
\[ \text{Tensile stress} = \frac{\text{Force}}{\text{Original cross-sectional area}} \]
This calculation explains why specimen measurements matter. If the width or thickness of a flat specimen is recorded incorrectly, the calculated stress and the reported tensile strength will also be incorrect, even when the force measurement is reliable.
Tensile strength generally refers to the stress associated with the highest load reached during the tensile test. This is often called ultimate tensile strength. It is not necessarily the stress at fracture. In a ductile metal, the specimen may reach its maximum engineering stress, form a neck, and then fracture at a lower engineering stress.
A computerized universal testing machine should allow the laboratory to record relevant specimen dimensions, load, extension, and calculated results. The software calculation is only as dependable as the dimensions, test method, calibration status, and operator inputs behind it.
For example, two steel specimens can withstand similar loads but show different tensile stress values if their original cross-sectional areas differ. Reporting the load alone would conceal that distinction.
Reading yield, ultimate, and fracture behavior
Yield strength indicates the point at which a material begins to undergo permanent deformation under the selected definition or method. It is important where a component must return to its original shape after loading or must remain within a specified elastic range.
Ultimate tensile strength is the maximum engineering stress recorded during the tensile test. It helps describe the material’s maximum load-bearing performance under that test condition, but it does not by itself describe ductility, toughness, fatigue performance, or long-term service behaviour.
Fracture behaviour adds another layer of interpretation. A ductile steel may show noticeable elongation and necking before failure. Another material may fracture with limited visible deformation. A quality decision should therefore consider the complete stress-strain curve, elongation, failure location, and fracture appearance where relevant.
For a computerized universal testing machine, useful output may include:
- Yield-related values according to the selected method
- Ultimate tensile strength
- Extension and percentage elongation
- Peak load and fracture load
- Stress-strain curve
- Specimen dimensions and gauge length
- Test speed and other method settings
- Notes on slippage, premature failure, or unusual behaviour
These records help distinguish a material problem from a testing problem.
Why material values are not directly interchangeable
Tensile results are meaningful only within their test context. Grade, heat treatment, manufacturing route, specimen orientation, thickness, temperature, moisture, strain rate, and surface condition can all affect the measured response.
A result from a longitudinal steel specimen should not automatically be compared with a transverse result from the same product. Similarly, a polymer tested after one conditioning procedure may not be directly comparable with a specimen tested at a different temperature or humidity.
The applicable standard or internal procedure should define specimen dimensions, preparation, test speed, conditioning, calculation method, and reporting requirements. Laboratories working toward NABL-related quality requirements should also ensure that their documented method, equipment records, calibration evidence, and operator practices support the intended scope.
A useful comparison asks:
- Were the materials from comparable grades or batches?
- Were the specimens prepared in the same orientation and geometry?
- Were the test speed and environmental conditions equivalent?
- Was the same calculation and reporting method used?
- Were the results obtained from equipment with suitable calibration and load-cell selection?
For broader background on steel grades, testing, and result interpretation, laboratories can also review steel tensile strength grades, tests, and results.
Comparing steel, polymers, and engineering materials
Mixed-material laboratories need a decision framework that recognises different material behaviours. A single acceptance rule for steel, polymers, composites, and elastomers can produce misleading conclusions.
The purpose of the tensile test may be incoming inspection, process control, product release, supplier verification, failure investigation, or material development. The same computerized universal testing machine may support these applications, but grips, load-cell range, extensometry, speed, and reporting must be selected for each method.
What steel tensile results typically reveal
Steel tensile testing commonly provides information about yield behaviour, ultimate tensile strength, elongation, and fracture. These values can help assess whether a batch, fabricated component, or processed product behaves consistently with its specified material requirements.
Quality teams may use tensile results when evaluating:
- Structural and construction steel
- Automotive components
- Rolled products and bars
- Welded or fabricated parts
- Fastener-related materials
- Incoming raw material
- Heat-treatment or process changes
A strength result should be considered alongside ductility. A material that reaches a high ultimate tensile strength but shows unexpectedly low elongation may require investigation, depending on the application and specification.
Specimen orientation is also important. Rolled, forged, extruded, and welded products can have direction-dependent properties. The report should identify the sampling location and orientation where those details affect interpretation.
How polymers change the testing conversation
Polymers can be strongly affected by strain rate, temperature, moisture, conditioning time, and viscoelastic behaviour. A polymer specimen may show different tensile stress and elongation when pulled slowly compared with a faster test, even when the material and specimen geometry remain unchanged.
Laboratory teams should establish how specimens are stored and conditioned before testing. They should also verify that the grips hold the specimen without cutting, crushing, or causing premature failure. For thin films, flexible sheets, or soft materials, grip design and jaw protection may be as important as nominal machine capacity.
A polymer tensile report may need to distinguish between:
- Tensile strength at break
- Maximum tensile strength
- Elongation at break
- Yield-related behaviour where applicable
- Test temperature and conditioning
- Crosshead speed
- Failure location and mode
A computerized universal testing machine can make these records easier to standardise, but the laboratory still needs a controlled method and trained operators.
Interpreting composites and other materials
Composites, laminates, elastomers, foams, films, and engineering textiles can require specialised preparation and interpretation. Fibre direction, layer arrangement, bonding quality, grip pressure, and edge condition may influence the failure mode.
A composite specimen that fails near the grip may indicate a preparation or gripping issue rather than representative material behaviour. A laminate tested along the fibre direction may produce a very different result from one tested across the fibres. These distinctions should be visible in the test request and report.
For elastomers and flexible materials, slippage and extension measurement require particular attention. For brittle materials, alignment and gripping must minimise unintended bending or local stress concentration. The laboratory should define when a result is valid, when a specimen must be rejected, and how abnormal failures are documented.
Turning results into a material decision
A tensile result becomes useful when it answers a defined engineering question. Examples include:
- Does incoming steel meet the required strength and elongation criteria?
- Did a heat-treatment change alter yield behaviour?
- Is a polymer batch consistent with previous approved production?
- Did a composite fail in the intended gauge section?
- Does a suspected process defect explain a reduction in tensile performance?
- Are different suppliers providing material with comparable behaviour?
The decision should not rely on ultimate tensile strength alone. Review the complete result, specimen condition, failure mode, batch identity, and applicable acceptance criteria. A digital report that preserves the curve and test settings is more useful for an audit or investigation than a standalone numerical result.
Preparing specimens and configuring the tensile test
Specimen preparation and machine setup determine whether the tensile test reflects the material or an avoidable laboratory error. A well-maintained machine cannot correct an incorrectly machined specimen, poor alignment, unsuitable grips, or incomplete test instructions.
Specimen geometry, machining, and conditioning
Before testing, verify the specimen’s dimensions, gauge length, thickness, width, diameter, surface condition, and identification. Measurements should be made using suitable instruments and recorded according to the laboratory procedure.
Machining marks, burrs, sharp transitions, scratches, and incorrect radii can create stress concentrations. These defects may cause failure away from the intended gauge section or produce unusually low results.
The specimen should be aligned with the machine axis. Misalignment can introduce bending, which changes the stress distribution and may affect extension or fracture behaviour. Fixtures and grips should be checked before the test series begins.
For polymers, composites, and moisture-sensitive materials, conditioning requirements should be documented. For metals, sampling location, orientation, and surface preparation may be essential to interpretation. The laboratory should avoid mixing specimens from different conditions without clearly identifying them.
Choosing grips and load-cell capacity
Grip selection should match the specimen form and material behaviour. Wedge grips, flat grips, pneumatic grips, threaded fixtures, and other arrangements may suit different applications, but the correct choice depends on the method and specimen.
The grip should prevent slippage without damaging the specimen. Excessive pressure can crush a polymer or composite, while insufficient pressure can allow movement and invalidate extension data. Jaw faces should be clean, correctly installed, and inspected for wear.
Load-cell capacity also requires a practical decision. A cell must accommodate the expected test force without overload, while a suitable measurement range helps the system resolve lower loads more effectively. Using a very high-capacity cell for a low-force polymer test may not provide the same measurement suitability as a correctly selected lower range.
Laboratory procurement teams should ask for documented information about available load cells, compatible grips, calibration arrangements, genuine spare load cells, and replacement grip components. They should also confirm how service and repair support will be handled in India, including expected technical communication and spare-part identification.
Setting a repeatable test method
A repeatable method should define specimen dimensions, preloading, crosshead speed, extensometer use, gauge length, data sampling, termination conditions, and result calculations. Operators should not change these settings informally between batches.
Extensometers can help measure strain over a defined gauge length, particularly where accurate yield or elongation data is required. The laboratory should verify installation, removal procedures, range, and suitability for the specimen and test method.
Before starting, the operator should confirm:
- Correct specimen and batch identification
- Correct method file or test settings
- Suitable load cell and grips
- Secure alignment and gripping
- Correct specimen dimensions
- Extensometer installation where required
- Safe guarding and emergency-stop access
- Adequate data storage and report identification
A short pre-test checklist can prevent errors that are difficult to diagnose after fracture.
Using a computerized universal testing machine
A computerized universal testing machine connects the mechanical test with digital measurement and reporting. Its value lies not simply in displaying a result, but in helping the laboratory preserve the conditions under which that result was produced.
What the digital system should capture
The digital record should contain enough information to support review and repeatability. Depending on the laboratory method, this may include:
- Sample or job identification
- Material description and grade
- Specimen dimensions
- Gauge length
- Force and extension data
- Stress-strain curve
- Ultimate tensile strength
- Yield-related result
- Elongation
- Test speed
- Environmental or conditioning details
- Operator identification
- Date and equipment identification
- Notes on failure mode or test exceptions
The system should also make it clear which values were entered by the operator and which were calculated from measured data. This distinction helps during report review and investigation.
Calibration status should be checked before testing. The laboratory should maintain equipment records and ensure that the machine is used within its intended measurement and application range. A digital report does not replace calibration or method control.
Making reports useful for quality decisions
A useful tensile test report should allow another qualified reviewer to understand what was tested, how it was tested, and what the result means. Standard templates can reduce omissions, but they should remain adaptable to different material groups and methods.
Reports should identify abnormal events such as grip slippage, specimen failure outside the gauge length, interrupted tests, unusual curves, or incorrect conditioning. Such results should not be silently treated as ordinary pass or fail data.
For batch comparisons, consistent naming conventions and report fields are important. Quality teams should be able to trace the result to the specimen, material batch, machine, operator, method revision, and calibration record.
Curve review is also valuable. Two specimens may have similar ultimate tensile strength but different yield behaviour, elongation, or post-peak response. Reviewing the curve can reveal changes that a single headline value would miss.
Training operators for consistent results
Operator training should combine machine operation with material-test practice. It should cover specimen inspection, safe loading, grip selection, alignment, extensometer use, software configuration, result review, and basic troubleshooting.
Operators should understand why a method specifies a particular speed or gauge length. They should know how to recognise slippage, bending, premature grip failure, sensor overload, unexpected noise, and implausible curves.
Training should also define when testing must stop and when technical support is required. A laboratory evaluating equipment should ask about operator training programs, installation and commissioning, documentation, calibration support, software guidance, repair procedures, and the availability of genuine replacement components.
For a replacement machine, procurement should verify that the delivered unit matches the agreed specification, documented accessories, software arrangement, load-cell range, grips, and acceptance criteria. Photographs or a pre-dispatch checklist can support verification, but final acceptance should be based on documented inspection and commissioning rather than appearance alone.
Designing a practical tensile testing laboratory
Laboratory layout affects safety, workflow, environmental control, and the consistency of tensile testing. The machine should be placed where operators can work safely and where specimens, records, and visitors do not interfere with controlled activities.
Separate controlled testing from general activity
The controlled testing zone should contain the computerized universal testing machine, required grips and fixtures, specimen staging, measurement tools, and relevant operating documentation. Access should be managed so that active testing is not interrupted by unrelated movement.
Office desks, meeting areas, visitor seating, general storage, and decorative items should be separated from the machine and specimen preparation area. This distinction helps protect specimens from accidental damage and reduces distractions during setup and result review.
Where materials require conditioning, the conditioning process and storage conditions should be clearly identified. The laboratory should also control the movement of specimens from storage to measurement and then to testing, preserving sample identity throughout.
Plan safety, movement, and support spaces
The layout should provide clear access around the machine, safe specimen handling, adequate lighting, and visible emergency controls. Guarding and signage should be appropriate to the machine and the hazards created by specimen rupture or moving components.
Plan for electrical requirements and, where applicable, compressed-air connections, hydraulic service access, and computer positioning. Cables and hoses should not create trip hazards or obstruct emergency movement.
Housekeeping is part of test quality. Broken specimen fragments, oil, dust, loose fixtures, and unused packaging should be removed from the testing area. Grips, load cells, extensometers, and measurement tools should have identified storage locations.
A practical layout also allows technicians to review the digital report without standing in an unsafe position. The operator should be able to observe the test, access the controls, and leave the danger zone quickly if an abnormal condition occurs.
Keep decorative items outside technical zones
Decorative accents and functional figurines are not laboratory equipment and should not be placed where they can obstruct access, collect contamination, interfere with specimen handling, or be mistaken for technical components. If an office or visitor area needs such items, King's Store operates an online ornament shop offering decorative home accents and functional figurines separately from specialist laboratory equipment.
The testing zone should remain dedicated to safe operation, specimen control, measurement, and documentation.
Tensile Strength Testing FAQ
What does tensile strength mean?
Tensile strength is the maximum engineering stress a specimen withstands during a tensile test. It is commonly calculated from peak force divided by the specimen’s original cross-sectional area.
What is the SI unit of tensile strength?
The SI unit of tensile strength is the pascal, or newton per square metre. Engineering reports commonly express it using larger units such as megapascal, depending on the material and method.
What are the three types of tensile strength?
The phrase can refer to yield strength, ultimate tensile strength, and fracture or breaking strength. The exact terminology depends on the material, standard, and reporting method used.
What is another name for tensile strength?
Tensile strength is often used interchangeably with ultimate tensile strength when referring to the maximum stress reached during a tensile test. The report should state the precise definition applied.
Which material is best for tensile strength?
There is no single best material for every application. Selection depends on required strength, ductility, temperature, weight, corrosion resistance, manufacturing process, cost, and the applicable design criteria.
What factors most often cause inconsistent tensile test results?
Common causes include incorrect specimen dimensions, poor alignment, grip slippage, unsuitable load-cell range, inconsistent speed, inadequate conditioning, calibration issues, and differences in operator practice.
Can tensile strength results be compared across different material grades?
They can be compared only after confirming that the grades, specimen orientation, geometry, conditioning, test method, and acceptance criteria are sufficiently equivalent for the intended decision.
What information should a tensile test report include?
A report should identify the material and specimen, dimensions, method, machine, operator, test settings, force and stress results, elongation, curve where relevant, failure observations, and any deviations.
When should a laboratory recalibrate its universal testing machine?
Recalibration should follow the laboratory’s documented schedule and applicable requirements, and may also be required after repair, overload, relocation, abnormal results, or a change affecting measurement performance.
Plan your tensile testing capability with Akuracy
A mixed-material laboratory should define its testing decisions before selecting or configuring a computerized universal testing machine. Steel, polymers, composites, and other engineering materials may require different grips, load-cell ranges, specimen preparation, conditioning, test speeds, calculations, and reporting fields.
A procurement specification should therefore identify the materials, specimen forms, expected force range, applicable standards or internal methods, required outputs, calibration expectations, operator training, installation requirements, spare components, and service arrangements. It should also include commissioning and acceptance criteria that verify the delivered machine against the agreed specification.
