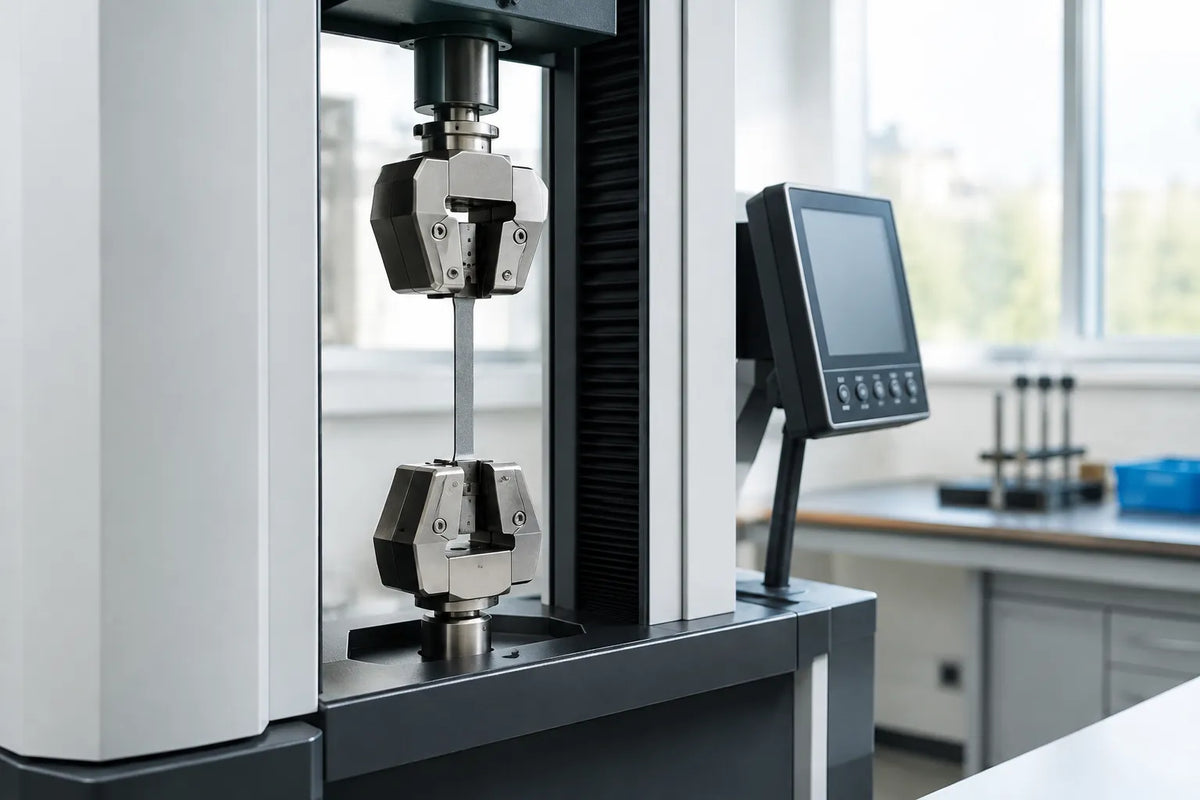

Five tensile test errors that can undermine laboratory results

Written by

Raghav Menon

Technical Editorial Lead

30 Sep 20269 min read

A tensile testing apparatus can produce a neat-looking report while still giving a misleading material result. Small problems in alignment, gripping, gauge measurement, calibration, test speed, or data handling can change the recorded tensile stress test outcome. For laboratories reviewing results, the practical response is a repeatable daily check rather than reliance on the machine display alone.

Tensile testing apparatus: the quick answer

A tensile testing apparatus applies a controlled pulling force to a prepared specimen and records how the specimen responds. A tensile testing machine normally includes a load-measuring system, grips or fixtures, a drive system, software, and—when strain is required—an extensometer or another measurement method.

The process is useful for examining properties such as force response, extension, yield behaviour, and failure location, provided the specimen preparation, test method, machine setup, and data handling are suitable for the application.

Before starting, technicians should confirm:

1. The specimen and test method are correctly identified.
2. The grips match the specimen geometry and material.
3. The force and extension measurement systems are within their required calibration status.
4. The test speed and gauge length are entered correctly.
5. The final report preserves the raw data and test settings.

Our guide to tensile testing methods provides the wider procedural context. This article focuses on the daily errors that can undermine otherwise routine testing.

Tensile testing apparatus: the step-by-step process

Prepare the right setup

Begin by checking the machine identity, selected method, specimen dimensions, and required units. Do not assume that the previous operator’s settings are correct for the current batch.

A practical preparation check should include:

• Confirming the specimen material, orientation, thickness, width, and identification number.
• Inspecting the grips for wear, contamination, damage, or unsuitable faces.
• Checking that the load cell capacity is appropriate for the expected test range.
• Confirming the required gauge length and extension measurement method.
• Reviewing the calibration status of the force and extension channels.
• Checking that the test speed is entered in the correct unit.
• Verifying that the machine and software show the same specimen identification.

A computerized digital UTM can help operators record test settings and results consistently, but digital recording does not correct an incorrect setup. The entered method still needs to be checked against the laboratory procedure and applicable standard.

Error 1: Misalignment between the specimen and loading axis

If the specimen is not centred and aligned with the loading axis, the machine may apply bending as well as tension. The recorded force may still appear plausible, while the specimen experiences a non-uniform stress condition.

Misalignment can result from uneven grip positioning, an incorrectly seated specimen, damaged fixtures, or a crosshead position that does not match the intended setup.

Daily corrective check:

• Close or position the grips without fully loading the specimen.
• Confirm that the specimen is centred between the grip faces.
• Check that its long axis follows the machine’s loading axis.
• Inspect the specimen after a preliminary low-force seating step.
• Stop if the specimen twists, bows, slips, or shows unexpected contact marks.

A fracture close to a grip or a visibly angled specimen should be treated as a setup warning, not automatically accepted as a valid material result.

Error 2: Incorrect or inconsistent gripping

Grips must hold the specimen securely without crushing, cutting, or allowing it to slip. The appropriate arrangement depends on the specimen shape, surface, material, and test method.

Excessive grip pressure can damage a soft or thin specimen before the tensile stress test develops. Insufficient pressure can cause slip, changing the effective gauge length and distorting extension data. Worn grip faces can create inconsistent results between operators.

Daily corrective check:

• Inspect grip faces and retainers before the first test.
• Remove oil, debris, and loose material from contact surfaces.
• Use the specified grip type and specimen seating method.
• Mark or observe the specimen where practical to detect movement.
• Record any slip, jaw marks, or premature grip failure.
• Replace or investigate damaged grips rather than compensating by guesswork.

For a replacement tensile test machine, the agreed specification should identify the required grip arrangement, specimen range, and acceptance checks. This helps reduce the risk that the delivered unit differs from the equipment reviewed during procurement.

Follow the core process

After the setup is checked, mount the specimen carefully and apply the test method in its defined sequence. Avoid changing several variables at once when troubleshooting an unusual result.

Set the gauge length before loading the specimen. Apply the selected speed consistently, monitor the specimen during the test, and save the complete test record after completion.

Error 3: Incorrect gauge length or strain measurement

Gauge length is not a cosmetic entry in the report. It provides the reference distance for extension and strain calculations. A wrong gauge length, poor marking, incorrect extensometer placement, or movement of the measurement device can distort elongation-related results.

Technicians should distinguish between crosshead movement and direct specimen strain. They are not automatically interchangeable, particularly where machine compliance, grip movement, or specimen seating affects displacement.

Daily corrective check:

• Measure or mark the required gauge length using the approved procedure.
• Confirm that the software contains the same value.
• Inspect extensometer contact and alignment before starting.
• Check that the device is removed or protected when required by the method.
• Compare unusual extension values with the specimen’s visible behaviour.
• Record whether the result came from an extensometer, crosshead displacement, or another channel.

A mechanical extensometer may be relevant where direct strain measurement is required, but its suitability still depends on the specimen and test method.

Error 4: Testing at the wrong speed

Test speed affects how the specimen is loaded and can change the recorded response. Entering the wrong value, selecting the wrong control mode, or allowing an unstable drive system to vary the speed can make results difficult to compare.

Speed errors are especially easy to introduce when methods use different units or when a saved software program is reused for a new material.

Daily corrective check:

• Confirm the speed value and unit before mounting the specimen.
• Check whether the method specifies crosshead speed, strain rate, or another control basis.
• Observe the early part of the test for unstable movement.
• Compare the displayed setting with the saved report.
• Investigate sudden changes in speed, pauses, or control transitions.
• Do not alter speed midway through a routine test unless the method requires it.

A test report should preserve the selected speed and control settings so that a reviewer can distinguish a material difference from a method difference.

Check whether it is working

The machine should be observed during the test rather than treated as a passive data source. Operators should watch for slipping, bending, unusual noise, unstable readings, unexpected zero drift, or a fracture outside the intended gauge region.

Error 5: Calibration and data-handling failures

Calibration problems and data-handling mistakes are closely connected because both can make an apparently precise result difficult to defend. A force channel that is overdue for calibration, an incorrectly selected range, or a report generated from the wrong specimen file can compromise the record.

The same risk applies when operators overwrite raw files, export the wrong units, omit specimen dimensions, or accept an automatically calculated value without reviewing the input fields.

Daily corrective check:

• Verify calibration status for the force and extension measurement channels.
• Confirm the active load range and units.
• Check zero readings before the specimen is loaded.
• Confirm specimen dimensions and identification in the software.
• Review the force–extension or stress–strain record for discontinuities.
• Save raw data and the final report using controlled file names.
• Record aborted tests, regripping, slip, and other deviations.

Service guidance in the testing-machine sector increasingly treats ongoing support and accuracy maintenance as part of equipment ownership; for example, a recent industry report describes a service platform designed to keep testing equipment operating accurately through support activity (Man monthly). For laboratories, the practical lesson is to include calibration, repair, software records, and technical support in the operating procedure—not only in the purchase order.

Avoid the common mistakes

The most common mistake is accepting a result because the machine completed the test. Completion does not prove that the specimen was aligned, correctly gripped, measured over the right gauge length, tested at the required speed, or reported from the correct data file.

When a result is unusual, quarantine the record and review the setup in this order:

1. Specimen identity and dimensions.
2. Grip condition and evidence of slip.
3. Alignment and fracture location.
4. Gauge length and strain channel.
5. Calibration status and zero readings.
6. Speed, units, software method, and raw data.

This sequence helps separate operator error, equipment condition, specimen variation, and data-processing problems without immediately repeating the test under unknown conditions.

When to adjust your tensile testing apparatus approach

Change the test approach when the specimen type, expected force range, deformation behaviour, or measurement requirement changes. A setup suitable for a rigid metal specimen may not be suitable for a thin sheet, polymer, textile, wire, or irregular component.

Review the setup when:

• The specimen slips despite correct seating.
• The specimen is damaged by the grip faces.
• Fractures repeatedly occur near the grips.
• Extension readings do not match visible specimen behaviour.
• The machine approaches an unsuitable force range.
• The test method requires a different speed or strain measurement approach.
• Results differ materially between operators using the same written method.
• The machine has been moved, repaired, modified, or inactive for an extended period.

Do not solve every problem by increasing grip pressure, changing speed, or removing an unexpected result from the report. Record the observation, identify the variable that changed, and obtain technical guidance when the cause is not clear.

For laboratories evaluating a new tensile testing machine, procurement questions should cover alignment, grips, load measurement, software records, calibration documentation, operator training, genuine spare load cells and grips, installation, and repair support. A low initial quote does not resolve the risk of receiving equipment that differs from the inspected or agreed specification.

Recommended next steps

Add the five corrective checks to the laboratory’s daily tensile testing routine:

1. Align and seat the specimen correctly.
2. Inspect and verify the grips.
3. Confirm gauge length and strain measurement.
4. Check the programmed speed and control mode.
5. Review calibration, raw data, units, and report details.

When repeated results remain inconsistent, preserve the raw records and document the specimen, setup, and machine condition. Sharing those details with Akuracy can support a more focused technical discussion about the tensile testing apparatus, tensile test equipment, or service requirement involved.
