Ultimate tensile strength is a key result from a tensile test. It describes the maximum tensile stress a material withstands while being pulled before localized necking and eventual fracture. Understanding it helps engineers compare materials, interpret test reports, and assess whether a material is suitable for a particular application.

What Is Ultimate Tensile Strength?

Ultimate tensile strength in simple terms

Ultimate tensile strength, commonly abbreviated as UTS, is the highest engineering tensile stress reached by a specimen during a tensile test.

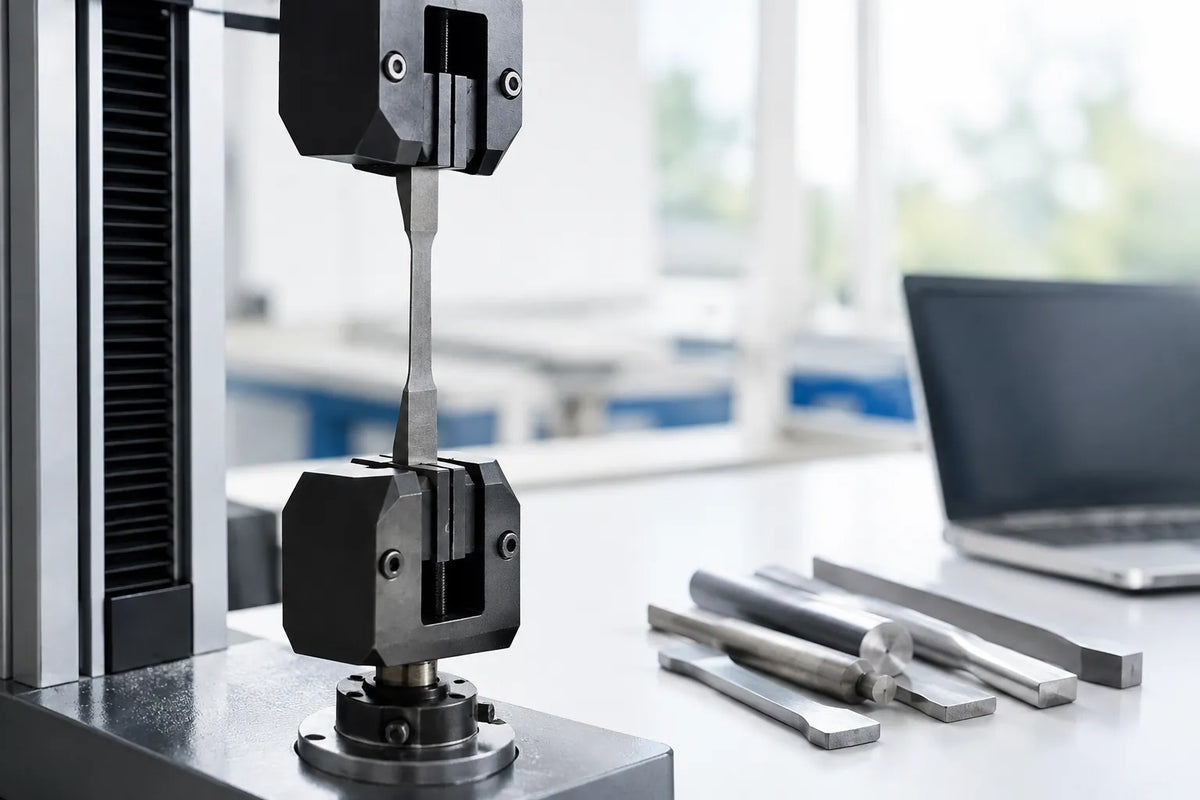

In a laboratory test, a prepared specimen is gripped in a Universal Testing Machine and pulled under controlled conditions. The machine records the applied force and the specimen’s extension. UTS corresponds to the highest point on the resulting engineering stress-strain curve.

In simple terms, it answers this question:

How much tensile stress can the material withstand at its strongest point during the test?

UTS is a material property, but it is not the same as the maximum load that every component made from that material can safely carry. Component performance also depends on cross-sectional dimensions, geometry, surface condition, defects, loading type, temperature, fatigue, and the applicable design rules.

For example, steel tensile strength may be used to compare different steel products or to check whether a manufactured component meets its specified material requirement. However, the UTS value alone does not determine whether a bridge member, bolt, welded joint, or machine shaft is safe in service.

UTS also differs from:

• Yield strength, which indicates when permanent plastic deformation begins.
• Fracture strength, which is the stress recorded when the specimen finally breaks.
• Elastic modulus, which describes stiffness.
• Toughness, which describes energy absorbed before fracture.
• Fatigue strength, which relates to repeated or cyclic loading.

These properties describe different aspects of material behavior and should not be treated as interchangeable.

How ultimate tensile strength is calculated

Engineering tensile stress is calculated by dividing the applied force by the specimen’s original cross-sectional area:

\[ \sigma = \frac{F}{A_0} \]

Where:

• \(\sigma\) is engineering tensile stress
• \(F\) is the applied tensile force
• \(A_0\) is the specimen’s original cross-sectional area

Ultimate tensile strength is calculated using the maximum force recorded during the test:

\[ UTS = \frac{F_{\text{max}}}{A_0} \]

For a round specimen, the original area can be calculated from its diameter:

\[ A_0 = \frac{\pi d_0^2}{4} \]

UTS is commonly reported in megapascals (MPa), newtons per square millimetre (N/mm²), or gigapascals (GPa). Since 1 MPa equals 1 N/mm², those two units have the same numerical value.

The use of the original area is important. After plastic deformation begins, the specimen’s cross-section changes. Engineering stress continues to use the original area, which makes the calculated curve fall after the peak even though the material in the necked region may still be carrying increasing local stress.

Reading the Tensile Stress-Strain Curve

A tensile stress-strain curve shows how a material responds as tensile load increases. The exact shape depends on the material, specimen, test method, temperature, strain rate, and measurement system.

Elastic and plastic deformation

At the beginning of a tensile test, stress and strain are often approximately proportional. If the load is removed within this region, the specimen returns close to its original dimensions. This is elastic deformation.

The slope of the initial linear portion is associated with Young’s modulus, or elastic modulus. A higher modulus generally indicates a stiffer material, but it does not necessarily indicate higher tensile strength.

As loading continues, the material reaches a point where deformation is no longer fully recoverable. Further loading produces permanent plastic deformation. If the specimen is unloaded after entering this region, it remains elongated.

This distinction matters in practical applications. A component may remain intact but become unsuitable because it has permanently changed shape. For example, a steel bracket that bends under service loading may not have fractured, but it may no longer align correctly or carry load as intended.

Yield point, peak stress, and necking

Yield strength marks the beginning of significant permanent deformation. Some materials show a clear yield point, while others require a specified offset method to determine yield strength.

After yielding, many ductile metals continue to carry increasing engineering stress because of strain hardening. The curve eventually reaches its maximum value. This peak is the ultimate tensile strength.

After UTS, deformation becomes localized in a smaller region of the specimen. This process is called necking. Because engineering stress uses the original cross-sectional area, the reported stress usually decreases as the neck develops, even though the local stress in the reduced section may continue to rise.

The test ends when the specimen fractures. The appearance of the fracture, the amount of elongation, and the reduction in area provide additional information about ductility and failure behavior.

Engineering stress versus true stress

Engineering stress uses the original cross-sectional area:

\[ \sigma_{\text{eng}} = \frac{F}{A_0} \]

True stress uses the instantaneous cross-sectional area:

\[ \sigma_{\text{true}} = \frac{F}{A_i} \]

Where \(A_i\) is the area at the relevant point during deformation.

Before substantial plastic deformation, the difference between engineering and true stress may be relatively small. During necking, the difference becomes more significant because the local area changes rapidly.

Most standard tensile test reports identify UTS using engineering stress based on the original area. Engineers should therefore check the test method and reporting convention before comparing results from different sources.

Ultimate, Yield, and Fracture Strength Compared

Ultimate tensile strength versus yield strength

Yield strength is associated with the onset of permanent deformation. Ultimate tensile strength is the maximum engineering tensile stress reached later in the test.

For a typical ductile metal, UTS is higher than yield strength. The difference between the two values indicates, in part, how much additional stress the material can withstand after yielding before reaching its maximum engineering stress.

Both values are important:

• Yield strength helps control permanent deformation in service.
• UTS helps assess the material’s maximum tensile performance during the test.
• The relationship between them can support material comparison and quality control.
• Elongation and reduction in area help explain how the material deforms between yielding and fracture.

A component designed only around UTS may experience unacceptable permanent deformation before reaching that value. For many applications, yield strength is therefore the more relevant limit for service design, subject to the applicable design code and safety factors.

Ultimate strength versus fracture strength

Fracture strength is the stress calculated at the moment the specimen breaks. In a ductile tensile test, fracture usually occurs after UTS because necking has reduced the local cross-sectional area.

The engineering fracture stress may be lower than UTS because it is calculated using the original area while the specimen has become narrower. A material with substantial ductility may show a noticeable difference between its peak engineering stress and its fracture stress.

In less ductile materials, the difference may be smaller, and fracture may occur with limited plastic deformation. The fracture location and surface can also help identify problems such as poor alignment, machining damage, inclusions, weld discontinuities, or unsuitable specimen preparation.

Strength, stiffness, and toughness

Tensile strength measures resistance to tensile loading at particular points in the test. It does not directly measure stiffness or toughness.

• Stiffness is commonly associated with elastic modulus and describes resistance to elastic deformation.
• Strength describes resistance to yielding or failure under a defined loading condition.
• Toughness represents the energy absorbed before fracture and is related to the area under the stress-strain curve.
• Ductility describes the extent of plastic deformation before fracture.

A material can be strong but relatively brittle, or less strong but highly ductile. A stiff material is not automatically tough, and a high UTS does not guarantee good impact or fatigue performance.

How a Laboratory Tensile Test Measures UTS

A reliable UTS result depends on more than the load capacity of the testing machine. Specimen preparation, alignment, gripping, measurement, calibration, software settings, and test conditions all influence the result.

Specimen preparation and machine setup

The specimen must be prepared according to the applicable test method. Important details may include:

• Specimen shape and dimensions
• Original gauge length
• Original width or diameter
• Surface finish
• Machining direction
• Reduced section geometry
• Material orientation
• Marking of the gauge length

The specimen is installed in suitable grips and aligned with the machine axis. Misalignment can introduce bending and uneven stress, producing misleading results or premature failure near a grip.

An extensometer may be used to measure extension over the gauge length, especially when yield strength, modulus, or precise strain measurements are required. The test setup should also account for grip compatibility, load-cell capacity, travel, crosshead movement, and the required test speed.

For laboratories working to a specified standard, the equipment configuration and procedure should be checked against that standard rather than assumed from a general tensile testing routine. Our material testing equipment information can provide a starting point when defining the application, but the final setup should be matched to the actual specimen and method.

Load, extension, and result recording

During the test, the machine applies tensile force while recording load and extension. The software can use the specimen dimensions to generate a stress-strain curve.

The principal stages are:

1. Record the specimen’s original dimensions.
2. Mount and align the specimen in the grips.
3. Apply tensile loading at the required rate.
4. Measure force and extension.
5. Identify the relevant yield point or offset value.
6. Identify the maximum tensile load.
7. Calculate engineering UTS using the original area.
8. Continue the test until fracture where required.
9. Record elongation, reduction of area, and fracture observations when specified.

The maximum tensile load is not itself UTS. UTS is the maximum load divided by the specimen’s original cross-sectional area. Two specimens carrying different loads may have the same tensile strength if their original areas differ appropriately.

Sources of variation in tensile results

Tensile results can vary because of both material and testing conditions. Common sources include:

• Heat treatment, processing history, and material condition
• Chemical composition and product direction
• Specimen dimensions and machining quality
• Gauge-length measurement
• Loading rate or strain rate
• Test temperature
• Grip slippage
• Misalignment or bending
• Incorrect extensometer placement
• Load-cell or displacement measurement error
• Inadequate calibration
• Operator technique
• Data-processing and reporting settings

A result that appears unusual should not automatically be attributed to the material. The laboratory should review specimen records, machine settings, calibration status, alignment, grip marks, fracture location, and the stress-strain curve.

For a laboratory evaluating a computerized Universal Testing Machine, useful acceptance questions include:

• Does the proposed configuration match the required specimen types and capacities?
• Is the applicable test method clearly identified?
• How are load, extension, yield, and UTS values calculated?
• What calibration documentation will be supplied?
• Are operator training and commissioning included?
• What is the process for genuine spare load cells, grips, and other wear parts?
• How will technical support and repair requirements be handled?

These questions help confirm that the delivered machine matches the agreed specification rather than relying only on a catalogue description.

Practical example: testing a steel specimen

Consider a steel specimen prepared for a tensile test. The laboratory first records its original diameter or width and thickness, then calculates the original cross-sectional area. The specimen is aligned in the grips and tested under the conditions specified by the applicable method.

The machine records force and extension. The resulting curve may show an elastic region, the onset of yielding, strain hardening, a peak engineering stress, necking, and fracture.

The report may include:

• Original specimen dimensions
• Yield strength or proof strength
• Maximum tensile force
• Ultimate tensile strength
• Fracture force
• Elongation
• Reduction of area
• Fracture location and observations

No numerical result should be assumed without the actual force, dimensions, test conditions, and material information. A proper interpretation compares the measured steel tensile strength with the requirement for the specified grade, product form, direction, and applicable standard.

For background on how steel results are commonly considered across grades and test reporting, see Steel Tensile Strength: Grades, Tests, And Results.

Using Ultimate Tensile Strength in Engineering Decisions

Steel and other industrial material applications

UTS is used in material qualification, incoming inspection, production control, failure investigation, and comparison of material conditions.

Typical applications include:

• Checking steel plate, bar, wire, and structural products
• Comparing heat-treated and untreated components
• Assessing materials used in automotive parts
• Reviewing fabricated and machined components
• Supporting construction-material quality control
• Evaluating metal products for general manufacturing
• Investigating unexpected fracture or deformation

In a steel production or fabrication environment, tensile results may be considered alongside yield strength, elongation, chemical composition, hardness, weld quality, and dimensional inspection.

For a fastener, for example, UTS may help confirm material classification, but thread condition, preload, fatigue, corrosion, installation practice, and joint design remain important. For a welded component, the base-metal UTS does not by itself establish the performance of the weld or heat-affected zone.

What UTS can and cannot tell you

UTS can help answer whether a material reached a specified maximum engineering stress under a defined tensile test. It can also support comparisons between material batches when specimen preparation and test conditions are controlled.

UTS cannot, by itself, predict:

• Fatigue life under repeated loading
• Impact performance
• Corrosion resistance
• Creep behavior at elevated temperature
• Weld integrity
• Fracture toughness
• Safe working load
• Performance under compression, bending, torsion, or buckling

A higher UTS is not automatically better. A material with higher tensile strength may have lower ductility, be more difficult to form or weld, or perform poorly under another service condition. The correct choice depends on the application and the full set of required properties.

Choosing and interpreting test results

When reviewing a tensile result, confirm the following:

• Material grade and product form
• Specimen type and orientation
• Original dimensions and gauge length
• Applicable test standard
• Test temperature
• Loading or strain rate
• Machine capacity and grip arrangement
• Calibration status
• Yield-strength method
• Units used in the report
• Elongation measurement method
• Fracture location and appearance
• Repeatability between specimens

The testing machine should have suitable capacity without operating outside the reliable measurement range for the specimen. Grips must hold the sample without slippage or damage, and the software should record the required values transparently.

Calibration is also part of result confidence. A laboratory should retain relevant calibration records and define how deviations, repairs, and re-verification are handled. If a machine has failed or a delivered unit differs from the inspected specification, commissioning records, configuration documents, acceptance criteria, and functional verification are particularly important.

A clear technical discussion with a supplier should cover the specimen details, required capacity, applicable standard, reporting needs, installation, training, calibration, spare parts, and future repair support. This is more useful than selecting equipment from capacity or price alone.

Discuss Your Tensile Testing Requirement

A meaningful tensile test begins with a clearly defined application. Before selecting or configuring equipment, document the specimen material, dimensions, expected force, applicable standard, required results, test environment, and reporting format.

For additional technical context, readers can visit the Akuracy material testing equipment page or review the steel tensile strength guide. This information can help structure a discussion about a suitable testing method, machine configuration, calibration approach, and laboratory workflow.
