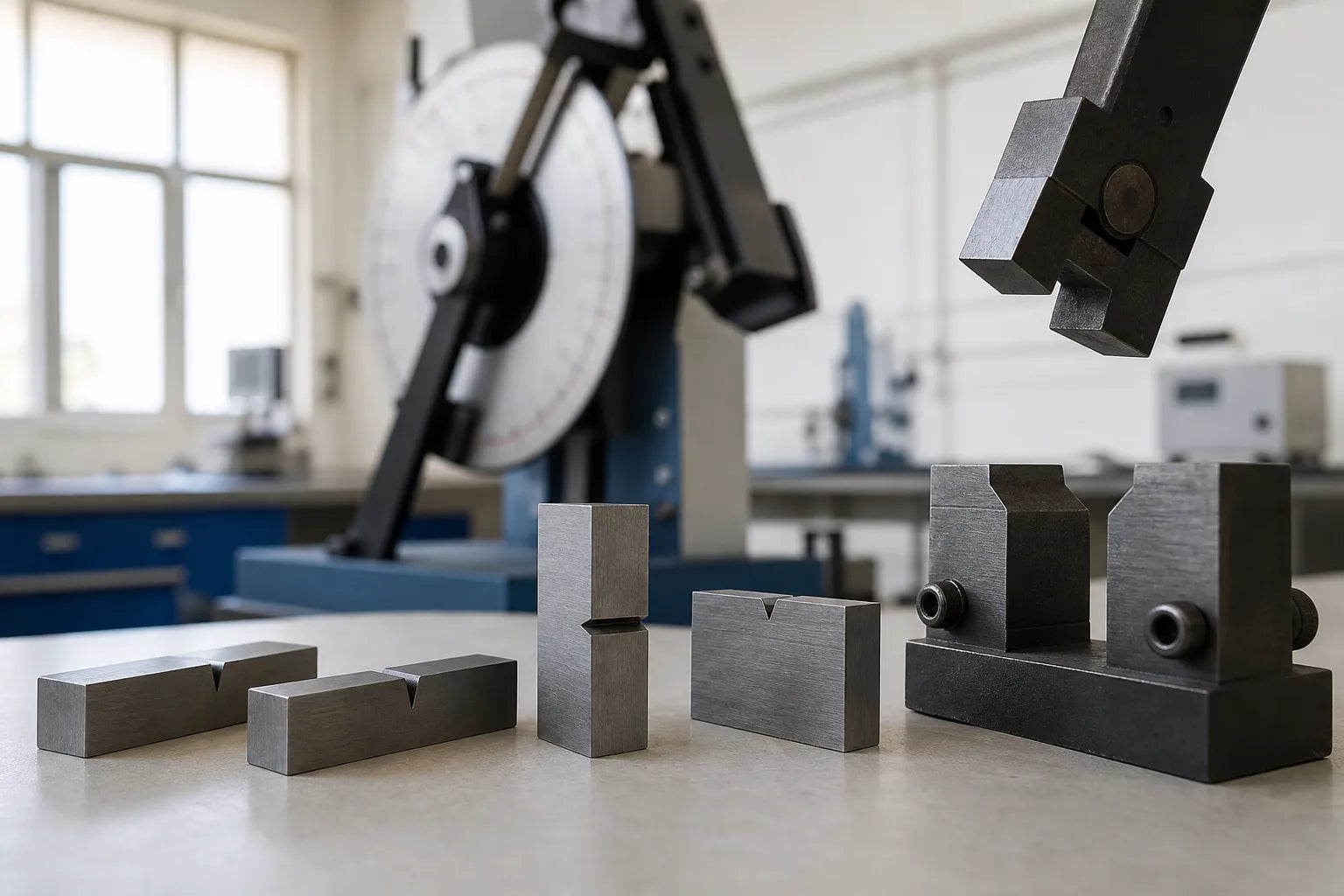

Charpy V notch impact testing specimen rules and common mistakes

1. Start with the outcome you actually need

Charpy v notch impact testing produces one number — absorbed energy in joules — that tells you whether a material is brittle or tough under sudden load. Before cutting a single specimen, confirm what the governing standard requires: ASTM E23, ISO 148-1, or a project-specific specification. Each standard defines acceptable specimen dimensions, notch geometry, and reporting format. Knowing the required output prevents you from preparing specimens that satisfy the wrong specification.

A notch broaching machine is the correct tool for cutting the V-notch to the tolerances these standards demand. Milling or filing a notch by hand introduces radius and angle errors that directly skew absorbed-energy readings.

2. Set up the simplest workable system

A reliable charpy impact testing workflow has three physical checkpoints: specimen dimensions, notch geometry, and temperature conditioning. Verify each with calibrated gauges before any test run begins.

• Specimen length: 55 mm ± 0.60 mm
• Cross-section: 10 mm × 10 mm ± 0.11 mm (full-size; sub-size specimens have their own tolerances)
• Notch depth: 2 mm ± 0.075 mm
• Notch angle: 45° ± 2°
• Notch root radius: 0.25 mm ± 0.025 mm

Your Charpy impact testing machine can only measure what the specimen presents. Out-of-tolerance specimens produce out-of-tolerance results, and no machine calibration corrects for that.

3. Follow the process without overcomplicating it

Work through specimen preparation in a fixed sequence so nothing is skipped under time pressure.

1. Cut the blank to length, leaving a small finishing allowance.
2. Machine the cross-section square and to final dimension.
3. Cut the V-notch using a dedicated broaching or milling operation with a calibrated cutter.
4. Verify all dimensions with a notch-geometry gauge before batching specimens.
5. Mark orientation clearly — the notch must face the striker, and the rolling or grain direction must match the specification.
6. Place specimens in the conditioning bath at the required test temperature for the minimum soak time specified by the standard.

For a solid grounding in why each step matters, the Charpy impact testing basics article covers the underlying mechanics and standard requirements in detail.

4. Check what is working and what is not

The most common preparation errors in charpy v notch impact testing are easy to miss without a deliberate check.

• Notch radius too large: a worn cutter leaves a blunt root that absorbs more energy than the standard allows, inflating results.
• Specimen not centred on the anvil: even a 0.5 mm offset changes the effective bending span and shifts the absorbed-energy reading.
• Temperature soak too short: the specimen must reach thermal equilibrium throughout its cross-section, not just at the surface. Pulling it from the bath too early produces higher-than-actual toughness values at sub-zero temperatures.
• Wrong orientation: impact test charpy results are direction-dependent in rolled or forged materials. A transverse specimen can read significantly lower than a longitudinal one from the same heat.

After each test, inspect the fracture surface. A flat, crystalline fracture indicates brittle behaviour; a fibrous, shear-lip fracture indicates ductile behaviour. If the fracture mode is inconsistent across a batch prepared identically, suspect a preparation variable rather than material scatter.

5. Adjust when your situation changes

Edge cases in charpy impact testing arise regularly in production labs.

If material is limited, sub-size specimens (7.5 mm, 5 mm, or 2.5 mm width) are permitted under most standards, but absorbed-energy values are not directly comparable to full-size results. Document the specimen size in every report and apply any standard-specified correction factors.

If the test temperature is below −60 °C, transfer time from bath to striker becomes critical. The standard limits the time between removing the specimen and striking it; exceeding that window allows the specimen to warm and the result to rise. Assign one person solely to the transfer step during impact test charpy runs at extreme temperatures.

If a batch shows unexpectedly high scatter, re-measure notch geometry on the outlier specimens. A cutter that is beginning to wear often affects the last specimens in a batch more than the first.

6. One more thing that makes a difference

Documentation is the step most labs treat as an afterthought in charpy v notch impact testing, but it is what makes a result defensible.

Record the specimen ID, material heat number, orientation, notch geometry measurements, conditioning temperature and soak time, transfer time, and the absorbed-energy reading for every test. If a result is ever questioned — by a customer, an auditor, or a failure investigation — this record is the only evidence that the preparation was correct. A result without a preparation record is a number without context. If you are evaluating equipment to support a new testing programme, the Charpy testing machine buying guide covers what to look for before committing to a machine.
